BLACK+DECKER Trimmer Line Replacement Spool RS-136-BKP Instruction Manual

1. उत्पादन समाप्तview

This manual provides instructions for the BLACK+DECKER RS-136-BKP Trimmer Line Replacement Spool. This spool is designed for easy replacement in compatible BLACK+DECKER string trimmers, eliminating the need for manual line winding.

The spool comes pre-wound with 20 feet (6.1 meters) of .065-inch (1.65 mm) diameter trimmer line, ensuring optimal performance and feed reliability.

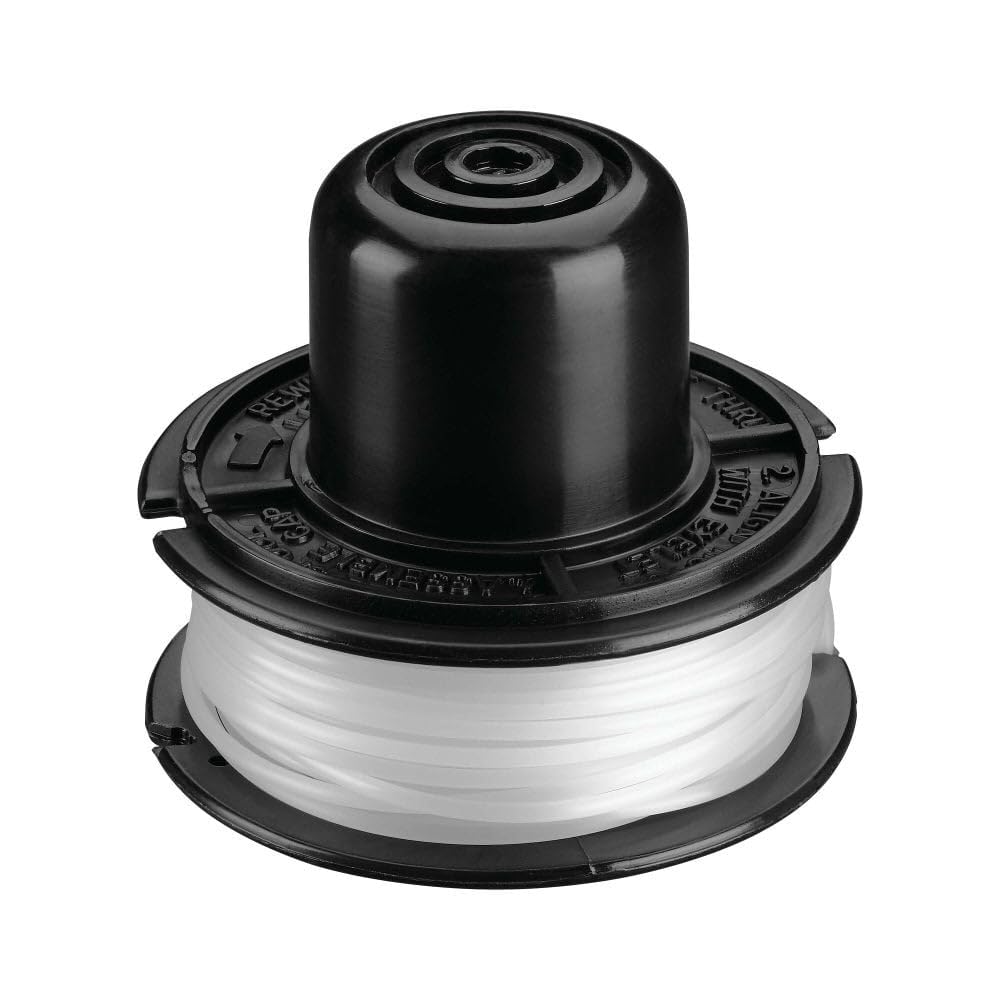

Image: The BLACK+DECKER RS-136-BKP replacement spool, factory wound with .065-inch trimmer line.

३.३। अनुकूलता

The RS-136-BKP replacement spool is compatible with the following BLACK+DECKER string trimmer models:

• CST500
• CST800
• GE600
• ST1000
• ST200
• ST300
• ST3000
• ST400
• ST4000
• ST4400
• ST4500
• ST5000
• ST6500
• ST6800

Image: Packaging for the RS-136-BKP spool, listing compatible BLACK+DECKER trimmer models.

3. सुरक्षा जानकारी

WARNING: To reduce the risk of injury, the user must read the instruction manual for their specific string trimmer before operating the product.

WARNING: This product may expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

4. स्थापना र प्रतिस्थापन

Follow these steps to replace the trimmer line spool in your BLACK+DECKER bump feed string trimmer:

1. टोपी हटाउनुहोस्: Remove the trimmer head cap by pushing two tabs in and up, then lifting it off. It is not necessary to push both tabs simultaneously. Clear any debris or grass buildup from inside the cap and the reel area.
2. Remove Old Reel: Align the notch on the edge of the old spool with the eyelet in the hub and pull the spool straight out. Be careful not to lose the spring located inside the trimmer head. Discard the used spool.
3. नयाँ स्पूल तयार गर्नुहोस्: Remove any tape from the new spool. Unwind approximately 3 inches (76 mm) of line from the new spool and secure it in one of the two notches on the spool. Ensure the spring is properly seated on the hub.
4. Insert New Reel: While holding the line in the gap, insert the new reel into the hub and thread the line through the eyelet. If the spool does not easily slip into the hub, gently press and pull the line straight out from the eyelet.
5. Install Cap: Push both snap levers on the hub at once until they are securely snapped into place. Pull the trimmer line out by hand until it is taut. The line should extend no further than the trimmer's guard. The cut-off blade will automatically trim any excess line to the correct length during operation.

Image: A user demonstrating the installation of a replacement spool into a trimmer head.

5. सञ्चालन

Once the replacement spool is correctly installed, your string trimmer is ready for use. The bump feed mechanism will automatically advance the line as needed during operation. Refer to your string trimmer's main instruction manual for detailed operating procedures and safety guidelines.

6. मर्मतसम्भार

The RS-136-BKP is a consumable replacement part. No specific maintenance is required for the spool itself. When the line is depleted, replace the spool with a new BLACK+DECKER RS-136-BKP replacement spool following the installation instructions provided in this manual.

Regularly inspect the trimmer head for any debris buildup and clean as necessary to ensure proper function of the bump feed mechanism.

T. समस्या निवारण

• खुवाउने लाइन छैन:
  • Ensure the spool is correctly seated and the line is not tangled inside the trimmer head.
  • Check for excessive debris or grass buildup around the spool and eyelet, which can obstruct line feed.
  • Verify that the spring is properly in place and not damaged.
• बारम्बार लाइन ब्रेकिङ:
  • Ensure you are using the correct .065-inch diameter line.
  • Avoid trimming against hard surfaces like concrete or rocks, which can prematurely wear or break the line.
  • Check the trimmer head's cut-off blade for damage; a dull or damaged blade can fray the line.

8. निर्दिष्टीकरणहरू

9. समर्थन र वारेन्टी

For technical assistance, product information, or warranty inquiries, please contact BLACK+DECKER customer support:

• Webसाइट: BlackAndDecker.com
• फोन: १-८८८-४७२-५८५३

Please refer to your original string trimmer manual for specific warranty details regarding the trimmer unit itself. This replacement spool is subject to standard BLACK+DECKER accessory warranty terms.
