Burndy Insulated Multitap Connector BIBD2/03 Instruction Manual

1. परिचय

This manual provides detailed instructions for the safe and effective installation, operation, and maintenance of the Burndy Insulated Multitap Connector, Model BIBD2/03. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure proper usage and prevent potential hazards.

2. महत्त्वपूर्ण सुरक्षा जानकारी

Always observe the following safety precautions when working with electrical connectors:

• स्थापना वा मर्मत अघि बिजुली विच्छेद भएको सुनिश्चित गर्नुहोस्।
• इन्सुलेटेड पन्जा र सुरक्षा चश्मा सहित उपयुक्त व्यक्तिगत सुरक्षात्मक उपकरण (PPE) लगाउनुहोस्।
• Verify that the connector is suitable for the specific application, including voltage र हालको मूल्याङ्कनहरू।
• Do not exceed the maximum conductor size or minimum conductor size specified for this connector.
• Consult local electrical codes and regulations for proper installation practices.
• This connector is होइन direct burial rated.

3. उत्पादन समाप्तview

The Burndy BIBD2/03 is an insulated multitap connector designed for reliable electrical connections. It features a double-sided entry, T-shaped configuration with 3 ports, accommodating a wide range of conductor sizes. The connector body is made of aluminum with PVC insulation, ensuring durability and safety.

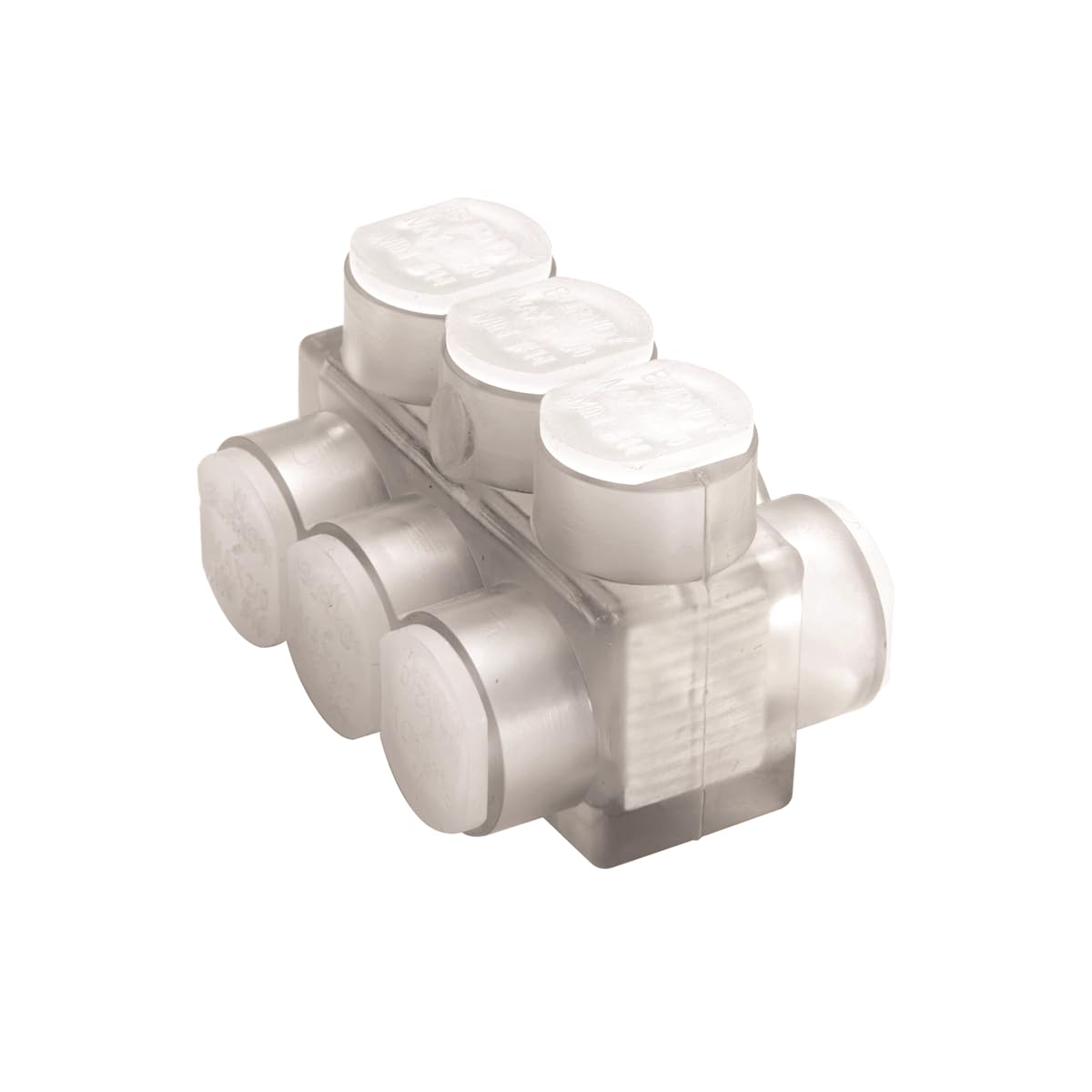

Image 1: Burndy Insulated Multitap Connector BIBD2/03. This image shows the overall design of the insulated multitap connector, highlighting its compact form and insulated body.

4. स्थापना निर्देशनहरू

1. कन्डक्टरहरू तयार गर्नुहोस्: Strip the insulation from the conductor ends to the appropriate length, ensuring no bare wire extends beyond the connector body once installed. The connector accepts a maximum conductor size of 2/0 AWG and a minimum of 14 AWG.
2. Insert Conductors: Loosen the hex head screws on the connector ports. Insert the prepared conductors into the desired ports. This connector features double-sided entry for flexible wiring configurations.
3. सुरक्षित जडानहरू: Using a hex wrench of the appropriate size (for a 3/16 inch stud size), tighten the tin-plated steel screws firmly. Ensure that each conductor is securely seated and that there is no movement. Do not overtighten, but ensure a solid electrical connection.
4. Verify Insulation: Confirm that the PVC insulation fully covers all live parts and that no bare conductors are exposed.
5. परीक्षण जडान: After installation, perform continuity and insulation resistance tests as required by local codes to ensure a safe and reliable connection.

5. सञ्चालन

Once properly installed, the Burndy BIBD2/03 connector provides a secure and insulated junction for multiple electrical conductors. Its design ensures consistent electrical contact and protection against environmental factors within its specified operating conditions. No user interaction is required during normal operation beyond initial installation.

6. मर्मतसम्भार

The Burndy BIBD2/03 connector is designed for long-term reliability with minimal maintenance. However, periodic inspection is recommended:

• दृश्य निरीक्षण: Periodically check the connector for any signs of physical damage, discoloration, or degradation of the insulation.
• जडान अखण्डता: Ensure that the conductors remain securely fastened within the connector. If any loosening is observed, disconnect power and re-tighten the screws.
• वातावरणीय कारकहरू: Protect the connector from harsh chemicals or extreme temperatures outside its operating range, which could compromise its insulation or structural integrity.

T. समस्या निवारण

If issues arise with the electrical connection, consider the following troubleshooting steps:

• निरन्तरता छैन: Check if conductors are fully inserted and screws are tightened to the recommended torque. Ensure the conductor size is within the specified range (14 AWG to 2/0 AWG).
• अत्यधिक तातो हुनु: This could indicate a loose connection, an undersized conductor for the current, or an overloaded circuit. Disconnect power immediately and inspect all connections and circuit loads.
• Insulation Damage: If the PVC insulation is cracked or damaged, the connector must be replaced to prevent electrical hazards.

8. प्राविधिक विशिष्टताहरू

9. वारेन्टी जानकारी

Specific warranty details for the Burndy Insulated Multitap Connector BIBD2/03 are typically provided at the point of purchase or can be obtained directly from Burndy. Please retain your proof of purchase for any warranty claims. Burndy products are manufactured to high standards, and any warranty covers defects in materials and workmanship under normal use.

10. ग्राहक समर्थन

For technical assistance, product inquiries, or support regarding the Burndy Insulated Multitap Connector BIBD2/03, please contact Burndy customer service. Visit the official Burndy webसम्पर्क जानकारी र थप स्रोतहरूको लागि साइट।
