Hisonic LK1652

Hisonic LK1652 Powered PA Speaker User Manual

मोडेल: LK1652

परिचय

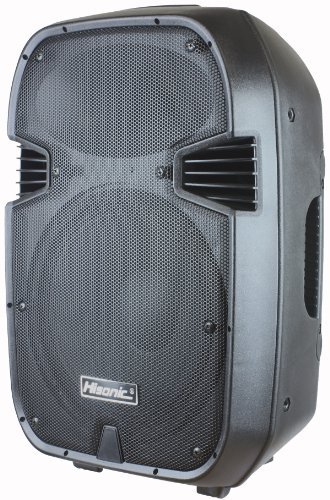

This manual provides detailed instructions for the safe and efficient operation of your Hisonic LK1652 Powered PA Speaker. The LK1652 is a versatile 300-watt (peak) 2-way speaker system featuring a 12-inch woofer and 1.35-inch titanium compression driver, designed for various audio applications. It includes integrated USB and SD card interfaces, an iPod/iPhone dock, and multiple input options for microphones and line-level devices. Please read this manual thoroughly before using the product to ensure proper setup and performance.

सुरक्षा जानकारी

बिजुलीको झट्का, आगो, वा चोटपटकबाट बच्न सधैं निम्न सुरक्षा सावधानीहरू पालना गर्नुहोस्:

  • शक्ति स्रोत: Connect the speaker only to a power supply of the type described in this manual or marked on the unit. Ensure the voltage selector is set correctly for your region (110V or 220V).
  • ग्राउन्डिङ: The speaker must be properly grounded. Do not defeat the safety purpose of the polarized or grounding-type plug.
  • भेन्टिलेसन: कुनै पनि भेन्टिलेसन खोल्ने ठाउँहरू नरोक्नुहोस्। निर्माताको निर्देशन अनुसार स्थापना गर्नुहोस्।
  • पानी र आर्द्रता: यो उपकरणलाई वर्षा वा ओसिलोपनमा नदेखाउनुहोस्। पानी नजिक प्रयोग नगर्नुहोस्।
  • गर्मी: कुनै पनि ताप स्रोतहरू जस्तै रेडिएटरहरू, तातो रजस्टरहरू, स्टोभहरू, वा अन्य उपकरणहरू (सहित amplifiers) जसले तातो उत्पादन गर्दछ।
  • सर्भिसिङ: यो उत्पादन आफैलाई सेवा गर्ने प्रयास नगर्नुहोस्। योग्य सेवा कर्मचारीहरु लाई सबै सेवा सन्दर्भ गर्नुहोस्।
  • सरसफाई: चट्याङ परेको बेला वा लामो समयसम्म प्रयोग नगरिएको बेला यो उपकरणलाई अनप्लग गर्नुहोस्। सुख्खा कपडाले मात्र सफा गर्नुहोस्।
  • अधिक लोडिंग: भित्ता आउटलेटहरू वा एक्स्टेन्सन कर्डहरू ओभरलोड नगर्नुहोस् किनकि यसले आगो वा बिजुली झटकाको जोखिम हुन सक्छ।

उत्पादन सुविधाहरू

The Hisonic LK1652 Powered PA Speaker offers a range of features for enhanced audio performance:

  • Powerful 300 Watts Peak Power output.
  • Equipped with a 12-inch Woofer and a 1.35-inch Titanium Compression Driver.
  • Multiple input options: XLR, 1/4" (TRS), and RCA auxiliary input.
  • XLR and 1/4" outputs for system expansion.
  • Integrated USB and SD card interfaces for direct media playback.
  • Dedicated iPod/iPhone docking station.
  • Remote control for convenient media playback management.
  • Switchable 110V/220V AC power requirements.

सेटअप

२.१। अनप्याक गर्दै

Carefully remove the speaker from its packaging. Retain the packaging materials for future transport or storage. Inspect the unit for any signs of damage that may have occurred during shipping. If damage is found, contact your dealer immediately.

१. प्लेसमेन्ट

Place the speaker on a stable, flat surface or a compatible speaker stand. Ensure adequate space around the unit for ventilation. Avoid placing the speaker in direct sunlight or near heat sources.

3. पावर जडान

  1. भोल्युमtagई चयनकर्ता: Before connecting the power cord, ensure the VOLTAGE SELECTOR switch on the rear panel is set to the correct voltagतपाईंको क्षेत्रको लागि e (११०V वा २२०V)। गलत भोल्युमtage selection can cause severe damage to the unit.
  2. Connect the supplied AC power cord to the AC INPUT on the rear panel of the speaker.
  3. पावर कर्डको अर्को छेउलाई ग्राउन्ड गरिएको विद्युतीय आउटलेटमा प्लग गर्नुहोस्।
  4. Ensure the POWER switch is in the OFF position before plugging in.

२. प्रारम्भिक जडानहरू

Before powering on, connect any microphones, line-level devices, or media players you intend to use. Refer to the "Operating Instructions" section for details on input/output connections.

सञ्चालन निर्देशनहरू

Rear panel of the Hisonic LK1652 Powered PA Speaker showing controls, inputs, and outputs.

चित्र २: पछाडिको प्यानल ओभरview. This image displays the rear panel of the Hisonic LK1652 speaker. Visible components include the MP3 Player section with an LCD screen, control buttons, USB port, and SD card slot. To the right are rotary knobs for iPod, MP3, Mic, Line, Master, Treble, and Bass volume/tone adjustments. Below the MP3 Player is an iPod/iPhone docking station. The lower right section features various audio inputs: Mic Input (1/4" and XLR), Line Input (1/4", XLR, and RCA), and a Line Out (XLR). The bottom section includes the AC power input, fuse holder, power switch, power/clip indicator LEDs, and a voltage चयनकर्ता स्विच (२३०V/११५V)।

Power. पावर अन / अफ

  • Ensure all volume controls are set to their minimum position before powering on.
  • Flip the POWER switch on the rear panel to the ON position. The POWER indicator LED will illuminate.
  • To power off, set all volume controls to minimum and then flip the POWER switch to the OFF position.

2. Controls (Refer to Figure 1)

  • iPod Volume Knob: Adjusts the playback volume for devices connected to the iPod/iPhone dock.
  • MP3 Volume Knob: Controls the volume for media played via the USB or SD card interface.
  • MIC भोल्युम नब: Adjusts the input level for microphones connected to the MIC INPUTs.
  • LINE Volume Knob: Controls the input level for devices connected to the LINE INPUTs.
  • MASTER Volume Knob: Overall volume control for the entire speaker output.
  • ट्रेबल नब: Adjusts the high-frequency response of the speaker.
  • बास नब: Adjusts the low-frequency response of the speaker.
  • क्लिप एलईडी: Illuminates when the input signal is too high, indicating potential distortion. Reduce input levels if this LED lights up frequently.

3. Inputs and Outputs (Refer to Figure 1)

  • MIC INPUT (XLR & 1/4"): Connect dynamic microphones using either an XLR cable or a 1/4" TS/TRS cable. Adjust volume with the MIC Volume knob.
  • LINE INPUT (XLR, 1/4" & RCA): Connect line-level audio sources such as mixers, instruments, or media players. Use XLR, 1/4" TS/TRS, or dual RCA cables. Adjust volume with the LINE Volume knob.
  • लाइन आउट (XLR): Provides an XLR output for connecting to another powered speaker or a recording device, allowing for system expansion.
  • iPod/iPhone Dock: Insert your compatible iPod or iPhone into the dock for audio playback. Control volume with the iPod Volume knob.

4. Media Playback (USB/SD Card)

  • USB पोर्टमा USB फ्ल्यास ड्राइभ वा SD कार्ड स्लटमा SD कार्ड घुसाउनुहोस्।
  • The MP3 Player will automatically detect the media and begin playback.
  • Use the MP3 Player control buttons (Play/Pause, Stop, Next, Previous, Mode, Repeat) or the included remote control to manage playback.
  • Adjust the playback volume using the MP3 Volume knob.

मर्मतसम्भार

७.१। सरसफाई

Clean the exterior of the speaker with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. Ensure the unit is unplugged before cleaning.

2. भण्डारण

When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to use the original packaging for storage and transport.

3. फ्यूज प्रतिस्थापन

If the speaker does not power on, check the fuse located near the AC INPUT. To replace, unplug the unit, carefully remove the fuse holder, and replace with a fuse of the exact same type and rating. Consult a qualified technician if unsure.

समस्या निवारण

समस्या सम्भावित कारण समाधान
शक्ति छैन Power cord not connected; Power switch off; Blown fuse; Incorrect voltage चयनकर्ता सेटिङ। Ensure power cord is securely connected. Turn power switch ON. Check and replace fuse if necessary. Verify voltage चयनकर्ता सही तरिकाले सेट गरिएको छ।
कुनै ध्वनि आउटपुट छैन Volume controls too low; Incorrect input selected; Cables not connected properly; Source device issues. Increase MASTER, input-specific, and source device volumes. Check all cable connections. Ensure the correct input source is active (e.g., MP3 for USB/SD, iPod for dock).
विकृत ध्वनि Input levels too high (CLIP LED on); Speaker overloaded; Damaged cables. Reduce input volume levels (MIC, LINE, MP3, iPod) until the CLIP LED no longer illuminates. Lower MASTER volume. Check and replace any damaged cables.
USB/SD प्लेब्याकले काम गरिरहेको छैन गलत file ढाँचा; USB ड्राइभ/SD कार्ड सही तरिकाले घुसाइएको छैन; बिग्रिएको मिडिया। मिडिया सुनिश्चित गर्नुहोस् files are in a supported format (e.g., MP3). Reinsert the USB drive or SD card. Try a different USB drive or SD card.

निर्दिष्टीकरणहरू

The following are the technical specifications for the Hisonic LK1652 Powered PA Speaker:

  • मोडेल: LK1652
  • रेटेड पावर (RMS): ०.१ वाट
  • पीक पावर: ०.१ वाट
  • स्पिकर प्रकार: 2-Way, Woofer
  • वूफर साइज: 12 इन्च
  • कम्प्रेसन चालक: 1.35 इन्च टाइटेनियम
  • संवेदनशीलता: २० dB
  • आवृत्ति प्रतिक्रिया: 45 Hz - 20 kHz
  • लाइन इनपुट (2): 1/4" unbalanced, dual RCA jacks (summing L+R), XLR
  • माइक इनपुट: Lo-Z, unbalanced, 1/4"-phone, XLR
  • रेखा आउटपुट: XLR
  • जडान प्रविधि: Auxiliary, RCA, USB, XLR, 1/4" (TRS)
  • मिडिया प्लेब्याक: USB, SD Card, iPod/iPhone Dock
  • नियन्त्रण विधि: Remote Control, Manual Knobs
  • एसी पावर आवश्यकताहरू: 110/220V 50/60 Hz switchable
  • उत्पादन आयाम: 13.5" X 11.25" X 19" (34.29 x 48.26 x 28.58 cm)
  • वस्तु वजन: 29 lbs (13.15 kg)
  • रंग: कालो
  • माउन्टिङ प्रकार: फ्लोर स्ट्यान्डिङ
  • निर्माता: हिसोनिक

वारेन्टी र समर्थन

वारेन्टी जानकारी

The Hisonic LK1652 Powered PA Speaker comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage caused by misuse, abuse, accident, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Additionally, a 30-day money-back guarantee may apply, subject to the terms and conditions of your retailer.

ग्राहक समर्थन

For technical assistance, warranty service, or general inquiries, please contact Hisonic customer support or your authorized dealer. Have your model number (LK1652) and proof of purchase ready when contacting support.
