1. परिचय
This manual provides essential information for the safe installation, operation, and maintenance of the Schneider Electric 9001SKP1G31 Pilot Light. This 120-Vac, 30-mm pilot light is designed for industrial applications to indicate system status. Please read this manual thoroughly before installation and operation.

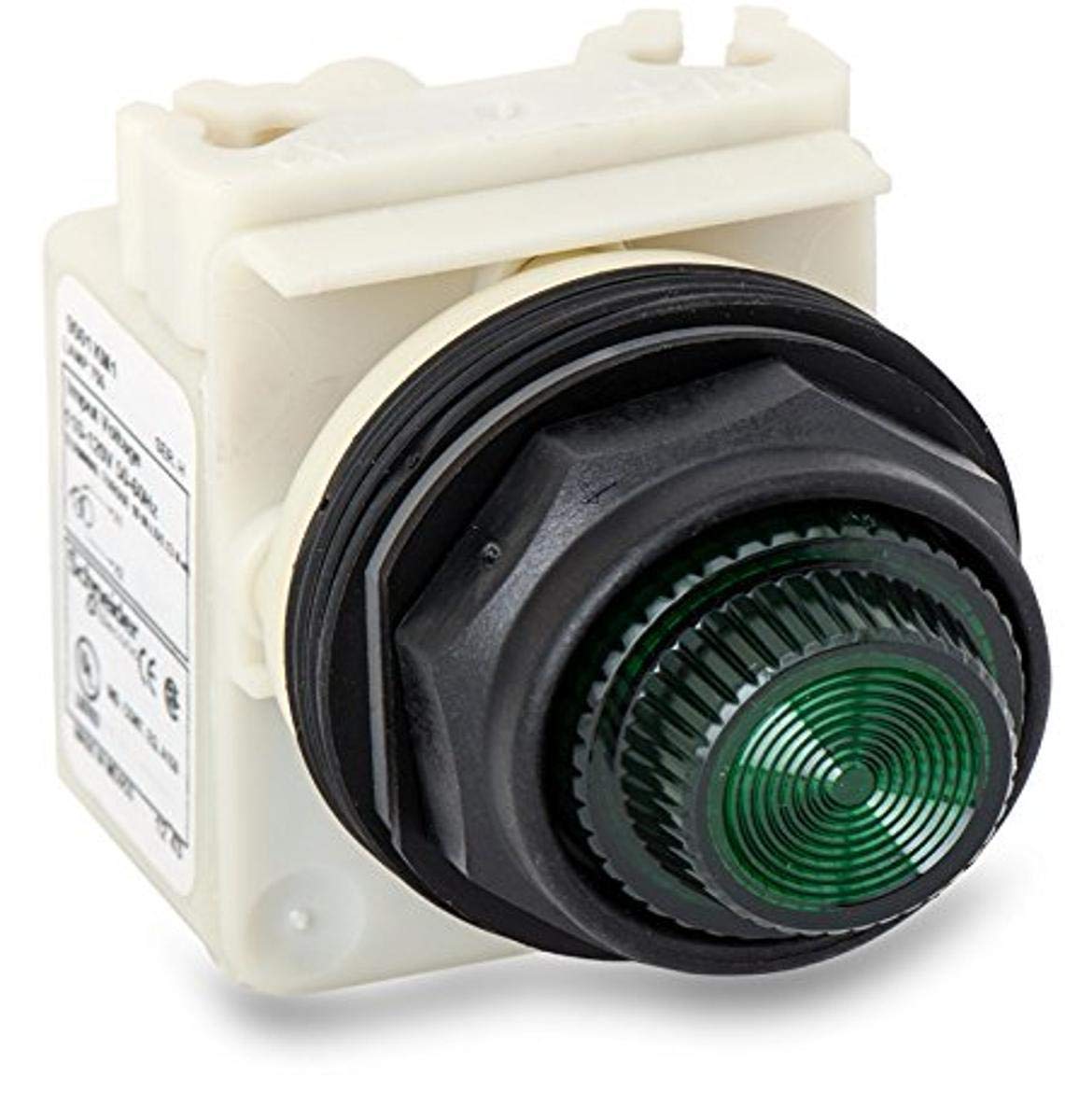

चित्र १: The Schneider Electric 9001SKP1G31 Pilot Light. This image shows the compact design of the pilot light, typically used for visual indication in control panels.
2. सुरक्षा जानकारी
चेतावनी: विद्युतीय झटका खतरा
- स्थापना र मर्मतसम्भार योग्य कर्मचारीहरूले मात्र गर्नुपर्छ।
- उपकरणमा काम गर्नु अघि सबै शक्ति विच्छेद गर्नुहोस्।
- सधैं उपयुक्त व्यक्तिगत सुरक्षात्मक उपकरण (PPE) प्रयोग गर्नुहोस्।
- सबै तारहरू स्थानीय र राष्ट्रिय विद्युतीय कोडहरूको पालना गर्छन् भनी सुनिश्चित गर्नुहोस्।
- यदि उपकरण बिग्रिएको देखिन्छ भने यसलाई सञ्चालन नगर्नुहोस्।
यी निर्देशनहरू पालना गर्न असफल हुँदा मृत्यु, गम्भीर चोटपटक वा उपकरण क्षति हुन सक्छ।
3. उत्पादन समाप्तview
The 9001SKP1G31 is a 30-mm pilot light designed for clear visual indication. Key features include:
- भोल्युमtagई मूल्याङ्कन: 120-Vac
- माउन्टिङ व्यास: 30 मिमी
- शैली: कम्प्याक्ट
- सामग्री: Copper components
- प्रमाणपत्रहरू: CE, CSA, IP, NEMA, UL
4. सेटअप र स्थापना
The 9001SKP1G31 pilot light is designed for surface mounting. Follow these steps for proper installation:
- पावर विच्छेदन: Ensure all power to the installation area is disconnected and locked out according to safety procedures.
- माउन्ट गर्ने स्थान: Select a suitable surface mount location on your control panel or enclosure. The mounting hole should accommodate a 30-mm diameter device.
- Mounting the Pilot Light: Insert the pilot light into the prepared 30-mm opening. Secure it in place using the provided mounting hardware (e.g., locking nut) on the rear of the panel. Tighten securely but do not overtighten.
- तार: Connect the 120-Vac power supply to the terminals of the pilot light. Refer to the wiring diagram provided with the product packaging for specific terminal identification. Ensure connections are tight and secure.
- प्रमाणीकरण: Double-check all connections and ensure no loose wires or exposed conductors are present.
- शक्ति पुनर्स्थापना: स्थापना पूरा भएपछि र प्रमाणित भएपछि, प्रणालीमा पावर पुनर्स्थापित गर्नुहोस्।
5. सञ्चालन निर्देशनहरू
The Schneider Electric 9001SKP1G31 Pilot Light functions as a visual indicator. When 120-Vac power is supplied to its terminals, the light will illuminate, indicating the status of the circuit or equipment it is connected to. There are no user-adjustable controls on the pilot light itself.
- रोशनी: The pilot light illuminates when the monitored circuit is active and power is applied.
- Non-Illumination: If the pilot light is not illuminated when expected, refer to the Troubleshooting section.
6. मर्मतसम्भार
The 9001SKP1G31 Pilot Light requires minimal maintenance. Regular inspections are recommended to ensure optimal performance and safety.
- सरसफाई: Periodically clean the lens of the pilot light with a soft, dry cloth to ensure clear visibility. Do not use abrasive cleaners or solvents.
- जडान जाँच: During routine system maintenance, verify that electrical connections to the pilot light are secure and free from corrosion.
- क्षति निरीक्षण: Inspect the pilot light for any signs of physical damage, such as cracks in the housing or lens. Replace damaged units immediately.
कुनै पनि मर्मतसम्भार गर्नु अघि सधैं पावर विच्छेद गर्नुहोस्।
T. समस्या निवारण
If the pilot light is not functioning as expected, consider the following common issues and solutions:
| समस्या | सम्भावित कारण | समाधान |
|---|---|---|
| Pilot light does not illuminate. | सर्किटमा पावर छैन। | Check the power supply to the circuit the pilot light is monitoring. Verify circuit breaker or fuse status. |
| Pilot light does not illuminate. | खुकुलो वा गलत तार जडान। | Disconnect power and check all electrical connections to the pilot light for tightness and correct polarity. |
| Pilot light does not illuminate. | Faulty pilot light unit. | If power is confirmed and wiring is correct, the pilot light unit may be defective. Replace the unit. |
| Pilot light flickers or is dim. | अस्थिर बिजुली आपूर्ति वा खुकुलो जडान। | Verify stable 120-Vac power. Check connections for looseness or corrosion. |
8. निर्दिष्टीकरणहरू
| विशेषता | विवरण |
|---|---|
| मोडेल नम्बर | 9001SKP1G31 |
| निर्माता | श्नाइडर इलेक्ट्रिक |
| भोल्युमtagई रेटिंग | 120-Vac |
| माउन्टिङ प्रकार | सतह माउन्ट |
| उत्पादन आयामहरू | १० x ३ x ३ इन्च |
| वस्तुको वजन | 5.9 औंस |
| सामग्री | तामा |
| रङ | बहुरङ |
| प्रमाणपत्रहरू | CE, CSA, IP, NEMA, UL |
9. वारेन्टी र समर्थन
वारेन्टी: The manufacturer states "No Warranty" for this product. Please refer to your point of purchase for any specific return or exchange policies.
प्राविधिक समर्थन: For technical assistance or further information regarding the Schneider Electric 9001SKP1G31 Pilot Light, please contact Schneider Electric customer support directly or visit their official website. Contact information can typically be found on the manufacturer's packaging or webसाइट।
