CHEFTRONIC Stand Mixer Instruction Manual

1. महत्त्वपूर्ण सुरक्षा उपायहरू

विद्युतीय उपकरणहरू प्रयोग गर्दा, आधारभूत सुरक्षा सावधानीहरू सधैं पालना गर्नुपर्छ, निम्न सहित:

• Read all instructions before operating the stand mixer.
• To protect against risk of electrical shock, do not put the mixer base in water or other liquid.
• कुनै पनि उपकरण बालबालिकाद्वारा वा नजिकको प्रयोग गर्दा नजिकको पर्यवेक्षण आवश्यक हुन्छ।
• प्रयोगमा नभएको बेला, पार्ट्स राख्नु वा हटाउनु अघि, र सफा गर्नु अघि आउटलेटबाट अनप्लग गर्नुहोस्।
• चल्ने भागहरूसँग सम्पर्क नगर्नुहोस्। व्यक्तिहरूलाई चोटपटक लाग्ने र/वा मिक्सरमा क्षति हुने जोखिम कम गर्न सञ्चालनको क्रममा हात, कपाल र लुगा, साथै स्प्याचुला र अन्य भाँडाकुँडाहरू बीटरहरूबाट टाढा राख्नुहोस्।
• क्षतिग्रस्त कर्ड वा प्लग भएको वा उपकरण खराब भएपछि, वा खसेको वा कुनै पनि तरिकाले क्षतिग्रस्त भएपछि कुनै पनि उपकरण सञ्चालन नगर्नुहोस्। परीक्षण, मर्मत, वा विद्युतीय वा मेकानिकल समायोजनको लागि उपकरणलाई नजिकको अधिकृत सेवा सुविधामा फिर्ता गर्नुहोस्।
• निर्माताले सिफारिस नगरेको वा बेचेको एट्याचमेन्टको प्रयोगले आगो, बिजुली झटका वा चोटपटक लाग्न सक्छ।
• बाहिर प्रयोग नगर्नुहोस्।
• कर्डलाई टेबल वा काउन्टरको छेउमा झुन्ड्याउन नदिनुहोस्।
• स्टोभ सहित तातो सतहमा कर्डलाई सम्पर्क गर्न नदिनुहोस्।
• धुनु अघि मिक्सरबाट बीटरहरू हटाउनुहोस्।

2. उत्पादन समाप्तview

The CHEFTRONIC Stand Mixer is a versatile kitchen appliance designed for various mixing tasks, from kneading dough to whipping creams. It features a powerful motor and multiple speed settings to handle different ingredients and recipes.

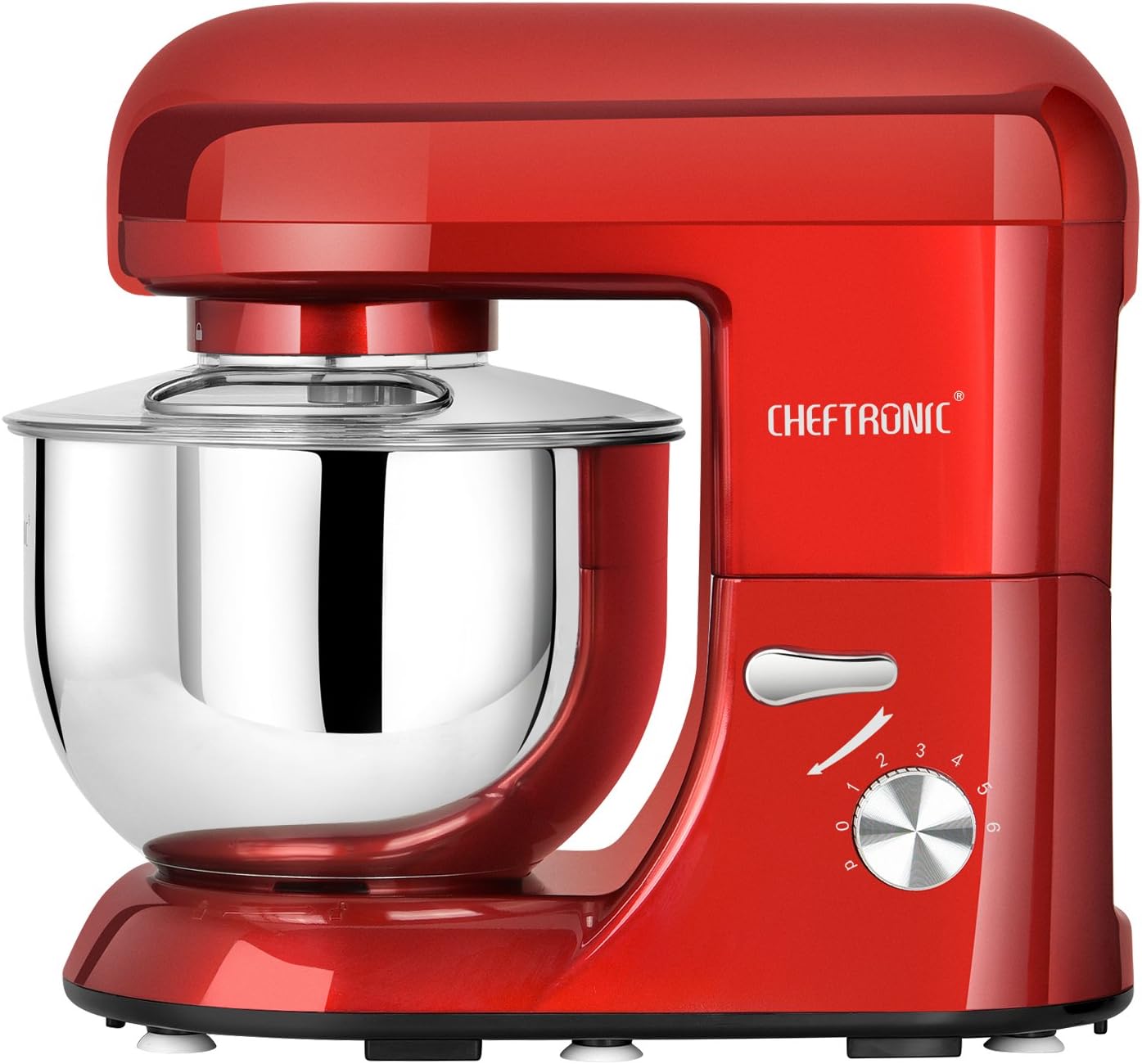

चित्र १: अगाडि view of the CHEFTRONIC Stand Mixer with the tilt-head down. This image shows the compact design and the control knob on the side.

अवयवहरू:

• मुख्य एकाइ: मोटर र नियन्त्रण प्यानल राख्छ।
• 5.5QT स्टेनलेस स्टील बाउल: Large capacity bowl for mixing.
• तार ह्विप: अण्डा, क्रिम र हल्का ब्याटरहरू कोर्रा लगाउनको लागि आदर्श।
• आटा हुक: Designed for kneading yeast doughs like bread and pizza dough.
• फ्ल्याट बिटर: Suitable for mixing cakes, cookies, and mashed potatoes.
• फ्लेक्स एज बीटर: Features a silicone edge to scrape the sides of the bowl while mixing, reducing the need to stop and scrape manually.
• स्प्ल्याश गार्ड: सञ्चालनको क्रममा कचौराबाट सामग्रीहरू छ्याप्नबाट रोक्छ।

3. सेटअप

Follow these steps to set up your CHEFTRONIC Stand Mixer for first use:

1. अनप्याकिङ: प्याकेजिङबाट सबै कम्पोनेन्टहरू सावधानीपूर्वक हटाउनुहोस्। भविष्यमा भण्डारण वा ढुवानीको लागि प्याकेजिङ राख्नुहोस्।
2. सरसफाई: Before first use, wash the stainless steel bowl, wire whip, dough hook, flat beater, flex edge beater, and splash guard in warm, soapy water. Rinse thoroughly and dry. The bowl and attachments are dishwasher safe.
3. नियुक्ति: Place the mixer on a clean, dry, and stable surface. Ensure the anti-slip silicone suction cups on the base are firmly attached to the countertop for stability during operation.
4. कचौरा जोड्ने: Place the stainless steel bowl onto the base of the mixer. Turn the bowl clockwise until it locks securely into place.
5. सहायक उपकरण संलग्न गर्दै:
   • सुनिश्चित गर्नुहोस् कि मिक्सर अनप्लग गरिएको छ।
   • Lift the tilt-head by pulling the release lever on the side of the mixer. The head will tilt upwards.
   • Align the accessory (wire whip, dough hook, flat beater, or flex edge beater) with the accessory shaft. Push the accessory upwards onto the shaft and turn it clockwise until it locks into place.
   • Lower the tilt-head by pushing it down until it clicks into the locked position.


   Figure 3.1: The tilt-head mechanism allows for easy attachment and removal of accessories and the mixing bowl.

6. स्प्ल्याश गार्ड जोड्ने: The splash guard can be placed over the bowl after the accessory is attached and the head is lowered. It simply rests on the rim of the bowl.

4. सञ्चालन निर्देशनहरू

Your CHEFTRONIC Stand Mixer features a 6-speed control for precise mixing.

1. सामग्री तयार गर्नुहोस्: Ensure all ingredients are measured and ready to be added to the mixing bowl.
2. सामाग्री थप्नुहोस्: आफ्ना सामग्रीहरूलाई स्टेनलेस स्टीलको मिक्सिङ कचौरामा राख्नुहोस्।
3. गति चयन गर्नुहोस्: Turn the control knob to the desired speed setting (1-6). Start with a lower speed and gradually increase as needed to prevent splashing and ensure thorough mixing. The 650W motor is powerful enough for heavy doughs.
4. मिश्रण: Allow the mixer to operate until the desired consistency is achieved. The tilt-head design allows for easy addition of ingredients during mixing.
5. मिक्सर रोक्ने तरिका: Turn the control knob to the "0" (off) position to stop the mixer.
6. Removing Ingredients: Lift the tilt-head to access the bowl. Scrape down the sides of the bowl with a spatula if necessary.

Figure 4.1: The CHEFTRONIC Stand Mixer is designed to blend seamlessly into your kitchen environment.

5. संलग्नकहरू

The CHEFTRONIC Stand Mixer comes with four specialized attachments to handle a variety of culinary tasks:

• तार ह्विप: Use for aerating mixtures, such as whipping egg whites, cream, and light batters. This attachment incorporates air for fluffy results.
• आटा हुक: Essential for kneading heavy doughs like bread, pizza, and pasta. It simulates hand-kneading to develop gluten effectively.


  Figure 5.1: The dough hook efficiently kneads bread dough, ensuring proper consistency.

• फ्ल्याट बिटर: Your go-to attachment for medium to heavy mixtures, including cake batters, cookie dough, frostings, and mashed potatoes.
• फ्लेक्स एज बीटर: This beater features a flexible silicone edge that continuously scrapes the sides of the mixing bowl, ensuring all ingredients are thoroughly incorporated without manual scraping. Ideal for sticky mixtures or when you want to minimize stopping the mixer.


  Figure 5.2: The flex edge beater ensures thorough mixing, even for ingredients like salad.

6. सफाई र मर्मतसम्भार

Proper cleaning and maintenance will ensure the longevity and optimal performance of your CHEFTRONIC Stand Mixer.

• मिक्सरलाई सधैं अनप्लग गर्नुहोस् सफाई वा कुनै मर्मत सम्भार गर्नु अघि।
• मिक्सिङ कचौरा र संलग्नकहरू: The stainless steel bowl, wire whip, dough hook, flat beater, and flex edge beater are all dishwasher safe for easy cleaning. Alternatively, wash them in warm, soapy water, rinse, and dry thoroughly.
• मुख्य एकाइ: विज्ञापनको साथ मुख्य एकाइ सफा गर्नुहोस्amp cloth. Do not immerse the main unit in water or any other liquid. Avoid using abrasive cleaners or scouring pads, as they may damage the finish.
• भण्डारण: Store the mixer and its accessories in a dry place. Ensure all parts are completely dry before storing.

T. समस्या निवारण

If you encounter any issues with your CHEFTRONIC Stand Mixer, refer to the following common troubleshooting tips:

यी समाधानहरू प्रयास गरेपछि पनि समस्या रहिरह्यो भने, कृपया ग्राहक समर्थनलाई सम्पर्क गर्नुहोस्।

8. निर्दिष्टीकरणहरू

Figure 8.1: Visual representation of the mixer's dimensions and included accessories.

9. वारेन्टी र समर्थन

The CHEFTRONIC Stand Mixer is backed by a 2-वर्ष उत्पादन वारेन्टीयो वारेन्टीले सामान्य प्रयोग अन्तर्गत सामग्री र कारीगरीमा रहेका दोषहरूलाई समेट्छ।

For warranty claims, technical support, or any inquiries, please contact CHEFTRONIC customer service through their official website or Facebook page. Please have your model number (SM986-Red) and proof of purchase ready when contacting support.

निर्माता: CHEFTRONIC

UPC: १०, २०२३
