SECULINK F6-N80 4K POE Security Camera Instruction Manual

1. परिचय

Thank you for choosing the SECULINK F6-N80 4K POE Security Camera. This manual provides essential information for the proper installation, operation, and maintenance of your camera. Please read this manual thoroughly before use and retain it for future reference.

The SECULINK F6-N80 is a high-performance 8MP (4K) POE-compatible IP camera designed for both indoor and outdoor surveillance. It features advanced capabilities such as color night vision, intelligent human and vehicle detection, and robust IP66 weatherproofing, ensuring reliable security monitoring.

2. सुरक्षा जानकारी

• विद्युतीय सुरक्षा: Ensure all power connections comply with local electrical codes. Use only approved power adapters (DC 12V) or POE switches/NVRs that meet IEEE802.3af/at standards.
• स्थापना: Install the camera in a secure location where it cannot be easily tampered with. Ensure mounting surfaces are strong enough to support the camera's weight.
• पानी र आर्द्रता: While the camera is IP66 weatherproof, avoid submerging it in water or exposing it to high-pressure water jets.
• तापक्रम: Operate the camera within its specified temperature range (e.g., -22°F to 140°F / -30°C to 60°C).
• सरसफाई: सफा गर्नुअघि बिजुली काट्नुहोस्। नरम, सुख्खा कपडा प्रयोग गर्नुहोस्। कठोर रसायनहरूबाट बच्नुहोस्।

3. प्याकेज सामग्री

प्राप्त भएपछि कृपया प्याकेजको सामग्री जाँच गर्नुहोस्। यदि कुनै वस्तु हराइरहेको छ वा बिग्रिएको छ भने, आफ्नो खुद्रा विक्रेतालाई सम्पर्क गर्नुहोस्।

• SECULINK F6-N80 4K POE Security Camera
• माउन्टिंग स्क्रू किट
• इथरनेट केबलको लागि वाटरप्रूफ कनेक्टर
• द्रुत सुरुवात गाइड / निर्देशन पुस्तिका (यो कागजात)

4. उत्पादन समाप्तview

The SECULINK F6-N80 camera is designed for robust surveillance with its 8MP resolution and POE capability. Its durable metal housing ensures longevity in various environments.

Figure 4.1: POE Functionality. This image shows a network video recorder (NVR) or switch with multiple POE ports connected to a security camera, illustrating how a single Ethernet cable provides both power and data.

मुख्य विशेषताहरु:

• 8MP Super HD Resolution: Captures video at 3840 x 2160 pixels for clear, detailed images.
• POE (इथरनेटमा पावर): Simplifies installation by delivering power and data through a single Ethernet cable (IEEE802.3af/at compatible).
• IP66 मौसम प्रतिरोधी: Constructed with a solid aluminum body, ensuring reliable operation outdoors in various weather conditions.
• उन्नत रात दृष्टि: Features premium LEDs and a smart IR cut filter for clear visibility up to 30m, including advanced color night vision.
• बौद्धिक पहिचान: Supports human and vehicle motion detection to reduce false alarms.
• बिल्ट-इन माइक्रोफोन: अडियो इनपुटको लागि।
• H.265+ भिडियो कम्प्रेसन: Optimizes bandwidth and storage efficiency for longer recording times.

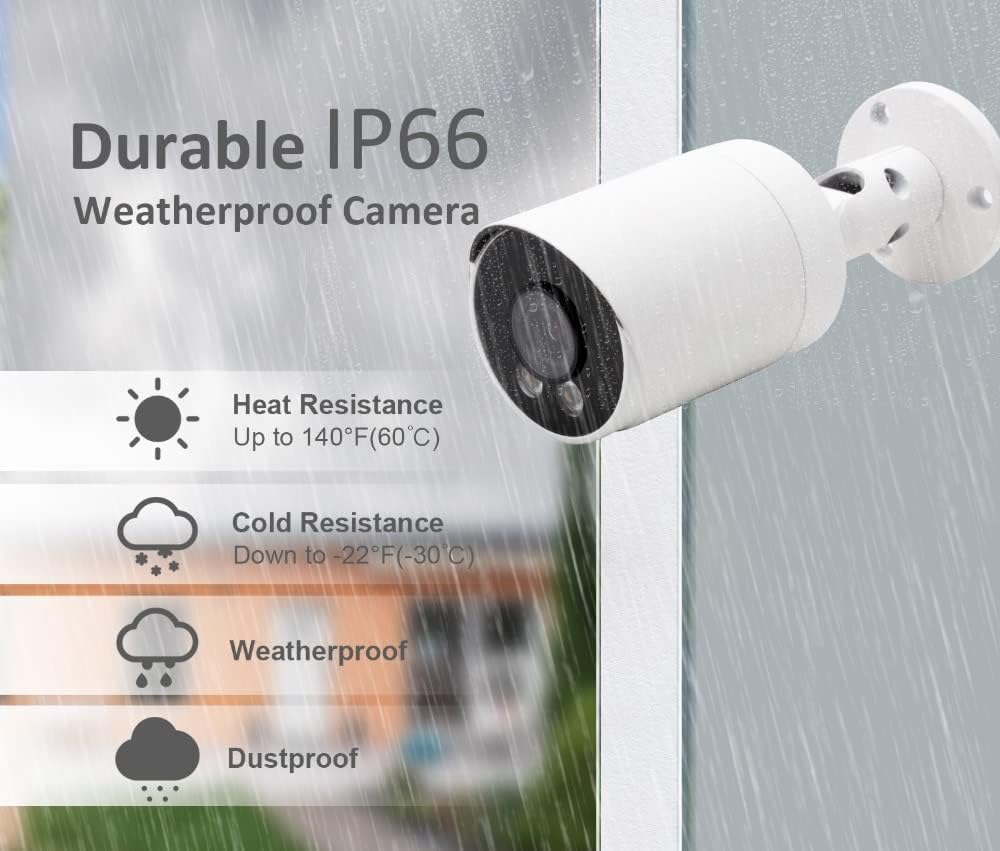

Figure 4.2: IP66 Weatherproof Rating. This image highlights the camera's durability against heat, cold, rain, and dust, making it suitable for outdoor installation.

5. सेटअप

२.२ भौतिक स्थापना

1. स्थान छान्नुहोस्: Select a suitable location for installation, ensuring a clear field of view and proximity to your POE network device. The camera is designed for wall mounting.
2. माउन्ट गर्दै: Use the provided mounting screw kit to securely attach the camera to the desired surface. Drill pilot holes if necessary.
3. कोण समायोजन: Loosen the adjustment screws on the camera bracket to set the desired viewकोण सेट भएपछि स्क्रूहरू कस्नुहोस्।

5.2 POE Connection

The camera supports Power over Ethernet (POE), simplifying wiring by combining power and data transmission into a single Ethernet cable.

1. इथरनेट केबल जडान गर्नुहोस्: Connect one end of an Ethernet cable to the camera's RJ45 port. Use the waterproof connector for outdoor installations to protect the connection.
2. Connect to POE Device: Connect the other end of the Ethernet cable to a POE port on your POE-enabled NVR (Network Video Recorder) or POE switch. Ensure the POE device supports IEEE802.3af/at standards.
3. Alternative Power (Optional): If not using POE, connect a DC 12V power adapter (not included) to the camera's power input port.

.5.3.२ नेटवर्क कन्फिगरेसन

After physical connection, the camera will power on. You will need to configure it through your NVR or a dedicated mobile application/PC software.

• NVR जडान: If connected to an NVR, the camera should be automatically detected or can be added manually through the NVR's interface. Refer to your NVR's manual for specific instructions.
• Software/App Setup: For direct access or advanced settings, download the manufacturer's recommended software or mobile application. Follow the in-app instructions to add and configure your camera. This typically involves scanning a QR code or manually entering the camera's IP address.

6. सञ्चालन निर्देशनहरू

6.1 Viewलाइभ फिड गर्दै

Access the live video feed through your connected NVR, PC software, or mobile application. This allows real-time monitoring of the camera's view.

6.2 गति पत्ता लगाउने

The camera features programmable motion detection, including intelligent human and vehicle detection, to minimize false alarms.

Figure 6.1: Motion Detection Workflow. This image illustrates how the camera transitions from standby to recording mode upon detecting motion and returns to standby when motion ceases.

• कन्फिगरेसन: Access the camera settings via your NVR or application to configure motion detection zones, sensitivity levels, and detection types (human, vehicle, general motion).
• अलर्टहरू: Set up real-time alerts via email, push notifications to your smartphone, or an audible buzzer when motion is detected.
• रेकर्डिङ: Motion detection can trigger automatic recording, saving storage space by only recording relevant events.

Figure 6.2: Human and Vehicle Detection. This image shows the camera's ability to distinguish between human and vehicle movement, triggering specific alerts.

Figure 6.3: Intelligent Human Detection. This image demonstrates the camera's capability to accurately identify human activity while ignoring irrelevant movements like pets or shadows.

२.३.४.३ नाइट भिजन

The camera provides clear visibility in low-light conditions and complete darkness.

Figure 6.4: Clear Night Vision. This image compares a scene with floodlights on (color) and off (black and white), showcasing the camera's effective night vision.

• IR-Cut Filter: Automatically switches between day and night mode for optimal image quality.
• LED Illuminators: Built-in LEDs provide infrared light for black and white night vision up to 30m.
• रंगीन रात दृष्टि: In certain low-light conditions, the camera can provide color images using its advanced sensor and premium LEDs.

6.4 रेकर्डिङ र प्लेब्याक

The camera supports continuous recording, scheduled recording, and motion-triggered recording. Recordings are typically stored on an NVR or a compatible storage device.

• H.265+ कम्प्रेसन: Utilizes advanced video compression to reduce file sizes without compromising video quality, extending storage capacity.
• प्लेब्याक: रेकर्ड गरिएको foo पहुँच गर्नुहोस्tage through your NVR or application.

१ अडियो इनपुट

The built-in microphone captures audio from the camera's vicinity, which can be recorded along with video footage.

7. मर्मतसम्भार

• सरसफाई: नियमित रूपमा क्यामेराको लेन्स र हाउजिङलाई नरम, घamp धुलो र फोहोर हटाउन कपडा। घर्षण गर्ने क्लिनरहरूबाट बच्नुहोस्।
• फर्मवेयर अपडेट: निर्माताको जाँच गर्नुहोस् website periodically for firmware updates. Keeping your camera's firmware updated ensures optimal performance and security.
• केबल निरीक्षण: Periodically inspect all cables for wear or damage, especially for outdoor installations. Ensure waterproof connectors are sealed properly.
• वातावरणीय जाँचहरू: क्यामेराको वातावरण यसको निर्दिष्ट सञ्चालन तापक्रम र आर्द्रता दायरा भित्र रहेको सुनिश्चित गर्नुहोस्।

T. समस्या निवारण

• कुनै शक्ति छैन:
  • Verify the POE switch/NVR is powered on and the Ethernet cable is securely connected to a POE port.
  • If using a DC 12V adapter, ensure it is properly connected and the power outlet is functional.
• भिडियो फिड छैन:
  • Check network connectivity. Ensure the camera and NVR/PC are on the same network.
  • Verify the camera's IP address and network settings are correct.
  • Restart the camera and the connected NVR/POE switch.
• गति पत्ता लगाउने काम छैन:
  • Ensure motion detection is enabled in the camera's settings.
  • Adjust sensitivity levels and detection zones.
  • Check if alert notifications (email, push) are correctly configured and enabled.
• खराब छवि गुणस्तर:
  • क्यामेराको लेन्स सफा गर्नुहोस्।
  • क्यामेराको क्षेत्रमा कुनै अवरोधहरू छैनन् भनी सुनिश्चित गर्नुहोस् view.
  • Check network bandwidth if experiencing lag or pixelation.

9. निर्दिष्टीकरणहरू

10. वारेन्टी र समर्थन

For warranty information and technical support, please refer to the SECULINK official webसाइटमा जानुहोस् वा आफ्नो अधिकृत डिलरलाई सम्पर्क गर्नुहोस्। खरिदको प्रमाणको रूपमा आफ्नो खरिद रसिद राख्नुहोस्।
