BURNDY BD18 Flexible Braid Jumper

1. परिचय

This manual provides essential information for the safe and effective use of the BURNDY BD18 Flexible Braid Jumper. Please read this manual thoroughly before installation and operation to ensure proper handling, maximize product lifespan, and prevent potential hazards.

2. उत्पादन विवरण

The BURNDY BD18 is a flexible braid jumper designed for electrical connections requiring flexibility and high current carrying capacity. It features a durable copper construction with tin plating for enhanced conductivity and corrosion resistance. Its design allows for movement and vibration absorption in various industrial and electrical applications.

मुख्य विशेषताहरु:

• लचिलो डिजाइन: Accommodates movement and vibration.
• उच्च वर्तमान मूल्याङ्कन: Rated for 190/225 Amperes।
• टिकाउ सामाग्री: Constructed from copper with tin plating.
• Standard Ferrule: Features 0.44 inch ferrule holes for secure connections.

उत्पादन छविहरू:

चित्र १: शीर्ष view of the BURNDY BD18 Flexible Braid Jumper, showing the braided copper conductor and the two tin-plated copper ferrules with pre-drilled holes at each end.

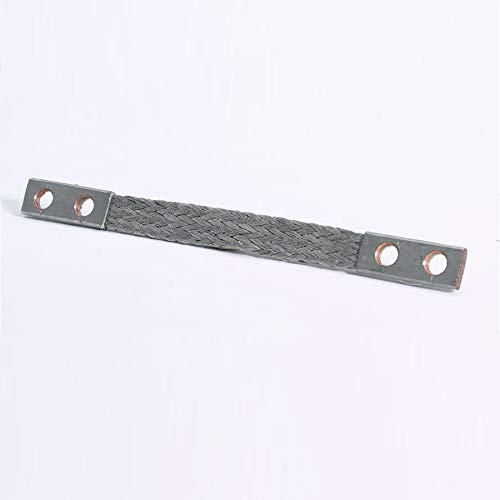

चित्र १: कोणित view of the BURNDY BD18 Flexible Braid Jumper, highlighting the texture of the braided copper and the robust construction of the ferrule ends.

3. सुरक्षा जानकारी

Always adhere to local electrical codes and safety regulations when installing or working with electrical components. Failure to do so may result in serious injury or property damage.

• पावर विच्छेद गर्नुहोस्: Always ensure power is disconnected and locked out before beginning any installation or maintenance work.
• उपयुक्त उपकरणहरू प्रयोग गर्नुहोस्: Utilize insulated tools and appropriate personal protective equipment (PPE), including safety glasses and gloves.
• योग्य कर्मचारी: Installation and maintenance should only be performed by qualified and experienced personnel.
• अवयवहरू निरीक्षण गर्नुहोस्: Before installation, inspect the jumper for any signs of damage, corrosion, or manufacturing defects. Do not use damaged components.
• उचित टोकक: Ensure all connections are torqued to the manufacturer's specifications to prevent loose connections and overheating.

4. सेटअप र स्थापना

The BD18 Flexible Braid Jumper is designed for straightforward installation in appropriate electrical systems. Follow these general steps for proper setup:

1. तयारी: Ensure the mounting surfaces are clean, dry, and free of burrs or sharp edges.
2. स्थिति: Align the ferrule holes of the braid jumper with the corresponding mounting points on the electrical components.
3. सुरक्षित जडान: Insert appropriate fasteners (e.g., bolts, screws) through the ferrule holes and secure them.
4. टर्क: Tighten fasteners to the recommended torque specifications for the specific application to ensure a secure and low-resistance electrical connection. Avoid over-tightening, which can damage the ferrule or mounting surface.
5. प्रमाणित गर्नुहोस्: After installation, visually inspect the connection to ensure proper alignment and tightness.

5. सञ्चालन निर्देशनहरू

The BURNDY BD18 Flexible Braid Jumper is a passive electrical component. Once properly installed, its operation is inherent to the electrical system it is integrated into. It functions by providing a flexible, low-resistance path for electrical current, accommodating movement and vibration within the system without compromising electrical continuity.

No specific user interaction is required for its operation beyond ensuring it is correctly installed and maintained within the system's operational parameters.

6. मर्मतसम्भार

Regular inspection and maintenance are crucial for the longevity and safe operation of the flexible braid jumper.

• दृश्य निरीक्षण: Periodically inspect the jumper for signs of wear, fraying, corrosion, discoloration (indicating overheating), or physical damage.
• जडान अखण्डता: Check the tightness of the connections. Loose connections can lead to increased resistance and heat buildup.
• सरसफाई: If necessary, gently clean the surface of the jumper and connections using a non-abrasive cleaner suitable for electrical components. Ensure the system is de-energized before cleaning.
• प्रतिस्थापन: Replace the jumper immediately if any damage, significant corrosion, or signs of overheating are observed. Do not attempt to repair damaged jumpers.

T. समस्या निवारण

While the BD18 is a robust component, issues can arise from improper installation or external factors. Here are some common issues and their potential solutions:

8. निर्दिष्टीकरणहरू

Detailed technical specifications for the BURNDY BD18 Flexible Braid Jumper:

9. वारेन्टी र समर्थन

For information regarding product warranty, technical support, or service, please contact Burndy customer service or visit their official webसाइट। वारेन्टी दावीहरूको लागि आफ्नो खरिद रसिद राख्नुहोस्।

निर्माता: हबेल
