1. परिचय
This manual provides detailed instructions for the setup, operation, and maintenance of the Waveshare 2.8inch 320x240 Pixels IPS LCD with 4-Wire Resistive Touch Screen. This display module is designed for embedded systems and features an SPI communication interface.
चित्र १: अगाडि view of the Waveshare 2.8inch Resistive Touch LCD module.
2. सुविधाहरू
- Multicolor graphic IPS LCD display, 2.8inch diagonal, 320×240 pixels.
- Integrated 4-wire resistive touch screen.
- Onboard touch controller for smoother touch experience.
- SPI interface, requiring minimal pin connections.
- Programmable backlight control for power efficiency.
- Accompanied by development resources and example code (for STM32/AVR/PIC).
3. सेटअप
3.1 इन्टरफेस परिभाषा
The display module utilizes an SPI communication interface. Refer to the following table and image for pin definitions and connections.

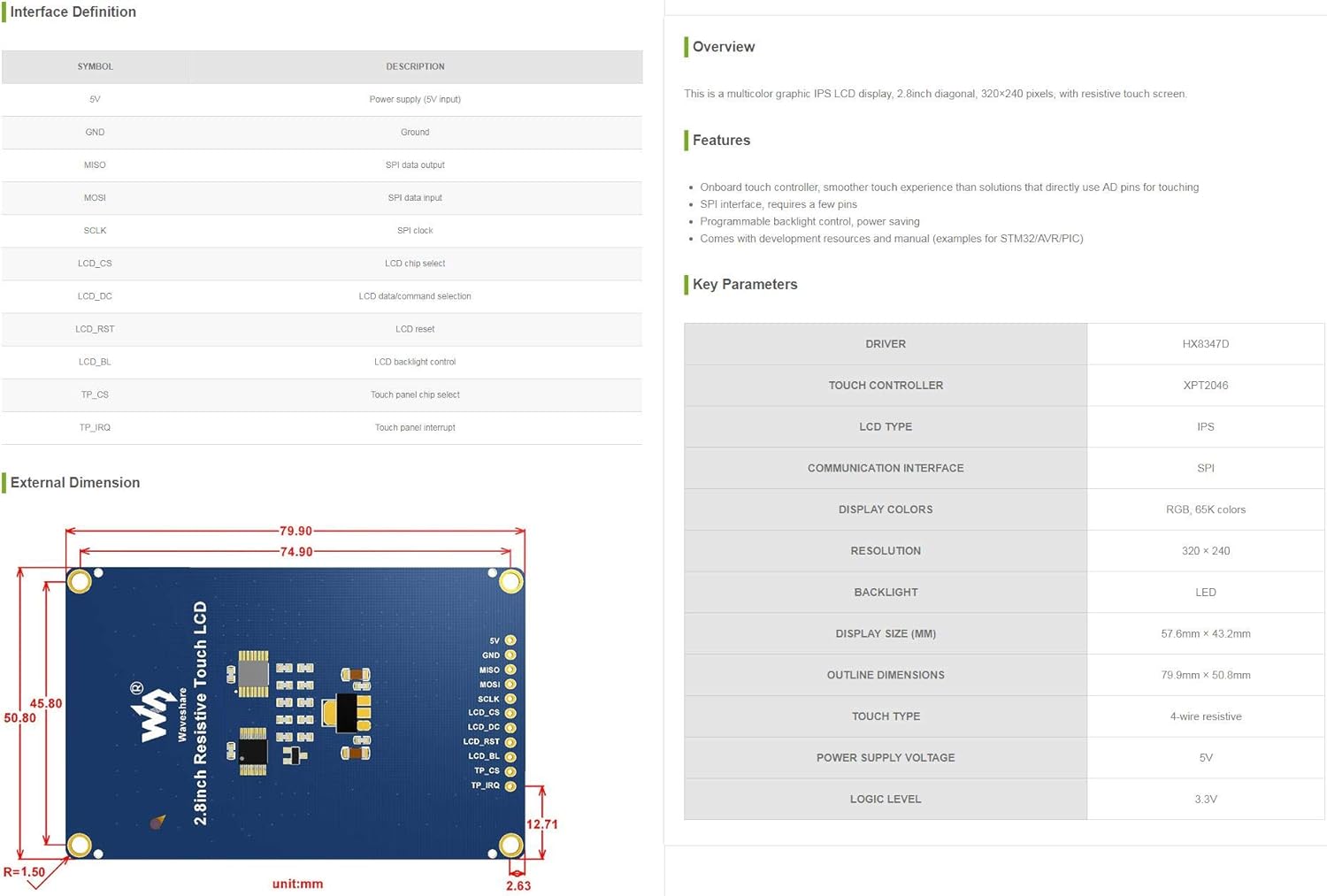

Figure 2: Interface Definition and Key Parameters of the LCD module.
| प्रतीक | विवरण |
|---|---|
| 5V | Power supply (5V input) |
| GND | जमिन |
| मोसी | SPI डाटा आउटपुट |
| MISO | SPI डाटा इनपुट |
| SCLK | SPI घडी |
| LCD_CS | एलसीडी चिप चयन गर्नुहोस् |
| LCD_DC | LCD data/command selection |
| LCD_RST | LCD reset |
| LCD_BL | LCD ब्याकलाइट नियन्त्रण |
| TP_CS | Touch panel chip select |
| TP_IRQ | टच प्यानल अवरोध |
चित्र २: पछाडि view of the LCD module showing pin labels and components.
२.१ प्रारम्भिक जडान
Connect the display module to your microcontroller or development board using the SPI interface. Ensure correct voltage (5V) and ground connections. Refer to the pin definitions for proper wiring of data, clock, chip select, and control lines for both the LCD and touch panel.
Waveshare provides comprehensive development resources and example code for various platforms such as STM32, AVR, and PIC. These resources are essential for initial setup and programming. Please visit the official Waveshare website for detailed documentation and code exampलेस।
4. सञ्चालन निर्देशनहरू
३.१ डिस्प्ले सञ्चालन
Once correctly connected and powered, the LCD can be initialized and controlled via the SPI interface. Use the provided example code as a starting point to display graphics, text, and other visual information. The display supports 320x240 pixels resolution with 65K colors.
Figure 4: The LCD module displaying text content.
३.५ टच स्क्रिन कार्यक्षमता
The integrated 4-wire resistive touch screen allows for user interaction. The onboard touch controller (XPT2046) handles touch input, providing coordinates via the SPI interface. Implement touch detection and coordinate reading in your software using the provided exampलेस।
4.3 ब्याकलाइट नियन्त्रण
The backlight of the LCD is programmable, allowing for dynamic adjustment of brightness. This feature can be utilized to optimize power consumption or adapt to different lighting environments. Refer to the documentation for specific commands or methods to control the backlight via the LCD_BL pin.
5. मर्मतसम्भार
- सरसफाई: Use a soft, dry, lint-free cloth to clean the display surface. Avoid abrasive cleaners or solvents that may damage the screen or touch layer.
- ह्यान्डलिङ: Handle the module by its edges to avoid touching the display area or electronic components.
- भण्डारण: मोड्युललाई चिसो, सुख्खा वातावरणमा, प्रत्यक्ष घाम र अत्यधिक तापक्रमबाट टाढा राख्नुहोस्।
- शक्ति: सधैं सही पावर सप्लाई भोल्युम सुनिश्चित गर्नुहोस्tage (5V) is used to prevent damage to the module.
T. समस्या निवारण
- डिस्प्ले उज्यालो नभएको: Check power connections (5V, GND) and ensure the backlight control (LCD_BL) is correctly configured and enabled.
- कुनै प्रदर्शन आउटपुट छैन: Verify SPI communication lines (MOSI, MISO, SCLK, LCD_CS, LCD_DC, LCD_RST) are correctly wired and that the LCD initialization sequence in your code is correct.
- टच स्क्रिन अनुत्तरदायी: Check touch panel connections (TP_CS, TP_IRQ) and ensure the touch controller (XPT2046) is correctly initialized and polled in your software.
- Incorrect colors or distorted image: Ensure the display driver (HX8347D) is correctly initialized with the appropriate settings for resolution and color depth.
7. निर्दिष्टीकरणहरू
Key technical specifications for the Waveshare 2.8inch Resistive Touch LCD module:
| प्यारामिटर | मूल्य |
|---|---|
| डिस्प्ले साइज | ८ इन्च |
| संकल्प | १320०० × १२०० पिक्सल |
| प्रदर्शन प्रकार | IPS LCD |
| रंगहरू प्रदर्शन गर्नुहोस् | RGB, 65K colors |
| टच प्रकार | 4-तार प्रतिरोधी |
| संचार इन्टरफेस | SPI |
| डिस्प्ले ड्राइभर | HX8347D |
| टच कन्ट्रोलर | XPT2046 |
| ब्याकलाइट | LED (Programmable) |
| बिजुली आपूर्ति भोल्युमtage | 5V |
| तर्क स्तर | 3.3V |
| रूपरेखा आयामहरू | 79.9mm mm 50.8mm |
| प्रदर्शन क्षेत्र (मिमी) | 57.6mm mm 43.2mm |
| वस्तुको वजन | ८.४७ औंस (लगभग २४० ग्राम) |
| प्याकेज आयामहरू | १० x ३ x ३ इन्च |
8. वारेन्टी र समर्थन
Waveshare products are typically covered by a standard manufacturer's warranty. For specific warranty details, technical support, or to access the latest development resources and documentation, please visit the official Waveshare website or contact their customer service directly. Ensure you have your product model number (2.8inch Resistive Touch LCD) and purchase information available when seeking support.
आधिकारिक वेभशेयर Webसाइट: www.waveshare.com
