Walfront AVR ISP Bootloader Programmer Expansion Board User Manual

1. परिचय

The Walfront Programmer Expansion Board is designed to facilitate the programming and bootloader burning of various microcontrollers, including Atmega 328P, Atmega 168P, and Atmega 8. This board serves as an essential tool for developers and hobbyists working with Arduino-compatible platforms such as Arduino, Nano, and Pro Mini (5V 16M). It integrates key features like LED indicators, a buzzer, and multiple programming interfaces to streamline the development process.

2. सुविधाहरू

• एलईडी सूचकहरू: Onboard LEDs provide visual feedback. A "breathing light" indicates normal power, a flashing PROG light signifies active programming, and a red ERROR light indicates programming failure.
• 28-Pin ZIF Socket: Features a 28P lock seat for convenient burning of bootstrap programs onto Atmega 328P, Atmega 168P, and Atmega 8 microcontrollers.
• ISP Interfaces: Includes ISP_6PIN and ISP_10PIN interfaces for external board bootloader burning.
• USB to TTL Programmer Interface: Equipped with FT232RL and CH340G interfaces for uploading code to chips placed in the 28P lock seat.
• Onboard Buzzer: Provides audible feedback for programming status. A successful bootloader burn is indicated by two beeps.
• अनुकूलता: Supports programming for Arduino, Nano, and Pro Mini (5V 16M) boards.

3. निर्दिष्टीकरणहरू

4. सेटअप

Before using the Walfront Programmer Expansion Board, ensure you have the necessary drivers installed for the FT232RL or CH340G USB to TTL converter, if you plan to use that functionality.

1. होस्टमा जडान गर्नुहोस्: Connect the programmer expansion board to your computer using a standard USB cable. The board will draw power from the USB connection.
2. Observe Power Indicator: Upon connection, the onboard LED indicator should light up, often with a "breathing light" effect, indicating normal power supply.
3. चालक स्थापना (यदि आवश्यक छ भने): If your operating system does not automatically recognize the USB to TTL converter, you may need to manually install drivers for FT232RL or CH340G. These drivers are typically available from the chip manufacturer's website or common microcontroller development resources.
4. Prepare Microcontroller (for ZIF socket): If burning a bootloader to a bare microcontroller (e.g., Atmega 328P), carefully insert the chip into the 28-pin ZIF (Zero Insertion Force) socket. Ensure correct orientation, aligning pin 1 of the chip with the corresponding mark on the socket. Close the ZIF socket lever to secure the chip.
5. Prepare External Board (for ISP): If burning a bootloader to an external board (e.g., Arduino Nano), connect the ISP_6PIN or ISP_10PIN interface on the expansion board to the corresponding ISP header on your target board using an appropriate cable.

चित्र १: शीर्ष view of the Walfront Programmer Expansion Board, showing the 28-pin ZIF socket, ISP headers, and LED indicators.

5. सञ्चालन निर्देशनहरू

5.1. Burning Bootloader to Microcontroller in ZIF Socket

1. Insert Chip: Carefully insert the target microcontroller (e.g., Atmega 328P) into the 28-pin ZIF socket, ensuring correct orientation.
2. कम्प्युटरमा जडान गर्नुहोस्: Connect the expansion board to your computer via USB.
3. सफ्टवेयर कन्फिगरेसन: Open your preferred IDE (e.g., Arduino IDE). Select the appropriate board type (e.g., "Arduino Uno" for Atmega328P) and the correct COM port for the expansion board's USB to TTL interface.
4. Select Programmer: Go to "Tools" > "Programmer" and select "Arduino as ISP" or a compatible programmer option.
5. Burn Bootloader: Go to "Tools" > "Burn Bootloader".
6. अनुगमन सूचकहरू:
   • The PROG LED will flash during the burning process.
   • Upon successful completion, the onboard buzzer will emit two beeps.
   • If the ERROR LED (red) illuminates, the burning process has failed.
7. Remove Chip: After successful burning, open the ZIF socket lever and carefully remove the microcontroller.

5.2. Burning Bootloader to External Board via ISP

1. Connect ISP: Connect the ISP_6PIN or ISP_10PIN header on the expansion board to the ISP header on your target board (e.g., Arduino Nano).
2. कम्प्युटरमा जडान गर्नुहोस्: Connect the expansion board to your computer via USB. Ensure the target board is also powered, if required.
3. सफ्टवेयर कन्फिगरेसन: In your IDE, select the target board type and the correct COM port for the expansion board.
4. Select Programmer: Go to "Tools" > "Programmer" and select "Arduino as ISP" or a compatible programmer option.
5. Burn Bootloader: Go to "Tools" > "Burn Bootloader".
6. अनुगमन सूचकहरू: Observe the PROG and ERROR LEDs, and listen for the buzzer as described in section 5.1.

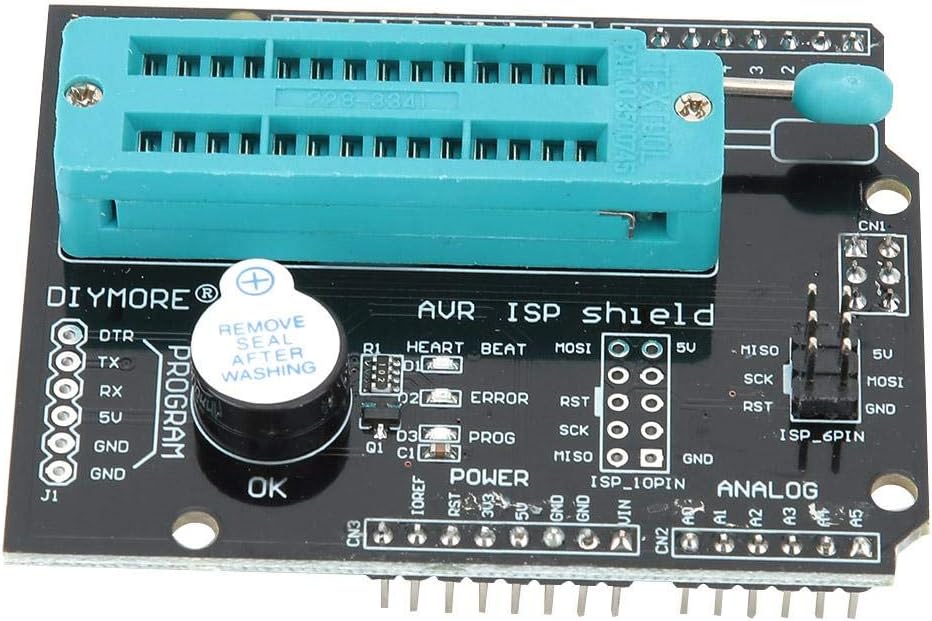

चित्र 2: विवरण view of the 28-pin ZIF socket, LED indicators (Heart Beat, Error, Prog), and the onboard buzzer.

6. मर्मतसम्भार

The Walfront Programmer Expansion Board is designed for durability and requires minimal maintenance.

• सरसफाई: Keep the board clean and free from dust and debris. Use a soft, dry cloth for cleaning. Avoid using liquids or abrasive cleaners.
• भण्डारण: Store the board in a dry, static-free environment when not in use.
• ह्यान्डलिङ: Handle the board by its edges to avoid touching sensitive components, especially the ZIF socket pins.
• ZIF Socket Care: When inserting or removing chips, always ensure the ZIF socket lever is fully open to prevent damage to the chip pins or the socket itself.

चित्र २: तल view of the Walfront Programmer Expansion Board, illustrating the solder points and circuit traces.

T. समस्या निवारण

• कम्प्युटरद्वारा मान्यता नपाएको बोर्ड:
  • USB केबल सुरक्षित रूपमा जडान भएको सुनिश्चित गर्नुहोस्।
  • Verify that the necessary FT232RL or CH340G drivers are correctly installed. Check Device Manager on Windows or lsusb on Linux for device recognition.
  • फरक USB पोर्ट वा केबल प्रयोग गरी हेर्नुहोस्।
• ERROR LED Illuminates During Programming:
  • Incorrect Chip Insertion: For ZIF socket programming, ensure the microcontroller is inserted correctly and the ZIF lever is fully closed. Verify pin 1 alignment.
  • Incorrect Wiring (ISP): For ISP programming, double-check all connections between the expansion board and the target board. Ensure MISO, MOSI, SCK, RST, VCC, and GND lines are correctly connected.
  • Incorrect Board/Programmer Selection: In your IDE, confirm that the correct board type and programmer (e.g., "Arduino as ISP") are selected.
  • Faulty Chip: The target microcontroller might be faulty. Try with a different chip if available.
  • शक्ति समस्याहरू: Ensure adequate power supply to both the expansion board and the target board (if external).
• No Buzzer Sound After Programming:
  • If the ERROR LED is off but no two beeps are heard, the programming might still have failed silently, or the buzzer itself could be faulty. Refer to the ERROR LED for primary failure indication.
  • Re-attempt the programming process.

8. वारेन्टी र समर्थन

Specific warranty information for the Walfront Programmer Expansion Board (Model: Walfrontyz6uo8t01h) is not provided in the product details. For warranty claims or technical support, please refer to the retailer or manufacturer's official support channels.

तपाईं भ्रमण गर्न सक्नुहुन्छ Walfront Store on Amazon थप उत्पादन जानकारीको लागि वा विक्रेतालाई सम्पर्क गर्न।
