Walfront 5V 500mA 2.5W Mini Polycrystalline Solar Panel (2-Pack) Instruction Manual

परिचय

This manual provides essential information for the safe and efficient use of your Walfront 5V 500mA 2.5W Mini Polycrystalline Solar Panels. These panels are designed for various low-power applications, including DIY projects, experimental setups, and powering small electronic devices. Please read these instructions thoroughly before installation and operation.

उत्पादन सुविधाहरू

• आयामहरू: Approximately 130 x 150 mm (5.1 x 5.9 inches) with a 2 mm (0.08 inches) thickness.
• केबल लम्बाइ: 100 cm (39.4 inches) pre-attached cable.
• परिचालन भोल्युमtage: DC 5V
• हालको सञ्चालन: १.० ए (१००० एमए)
• अधिकतम शक्ति: 2.5W
• सामग्री: पोलिसिलिकन
• High conversion efficiency and power output.
• Effective performance in low-light conditions.
• Weather-resistant design, suitable for snow and wind.
• Easy to install for DIY projects.
• Ideal for solar lawn lamps, solar landscape lights, solar mobile phone chargers, solar flashlights, and various small solar toys.

प्याकेज सामग्री

• 2 x Walfront 5V 500mA 2.5W Mini Polycrystalline Solar Panels

सुरक्षा जानकारी

• Do not attempt to disassemble or modify the solar panels.
• Avoid direct contact with the electrical terminals when the panel is exposed to light.
• Ensure proper polarity when connecting to devices. Incorrect polarity can damage the connected device or the solar panel.
• Keep the panels away from flammable materials.
• Do not immerse the panels in water. While weather-resistant, they are not designed for submersion.
• Handle with care to avoid physical damage to the panel surface.

सेटअप

The Walfront mini solar panels are designed for straightforward integration into various projects.

२.१। अनप्याक गर्दै

Carefully remove the solar panels from their packaging. Inspect for any visible damage.

१. प्लेसमेन्ट

For optimal performance, position the solar panel in a location that receives maximum direct sunlight throughout the day. Avoid shaded areas. The panel should be angled towards the sun for best efficiency.

Image: Two Walfront mini solar panels connected to a breadboard and multimeter, demonstrating their use in a garden for experimental power.

.3.।। इलेक्ट्रिकल जडान

Each solar panel comes with a pre-attached cable. The red wire typically indicates the positive (+) terminal, and the black wire indicates the negative (-) terminal.

• Connect the red wire to the positive input of your device or charging circuit.
• Connect the black wire to the negative input of your device or charging circuit.
• सर्ट सर्किट हुनबाट जोगाउन सबै जडानहरू सुरक्षित र इन्सुलेटेड छन् भनी सुनिश्चित गर्नुहोस्।

छवि: पछाडि view of a Walfront mini solar panel, highlighting the attached red (positive) and black (negative) connection wires.

सञ्चालन निर्देशनहरू

Once properly set up, the solar panels will begin generating electricity when exposed to sunlight.

५.२. विद्युत उत्पादन

The panels convert sunlight into DC electrical energy. The output voltage and current will vary depending on the intensity of the sunlight and the load connected.

६. इष्टतम प्रदर्शन

For maximum power output, ensure the panels are clean and positioned directly facing the sun. Any shading, even partial, can significantly reduce efficiency.

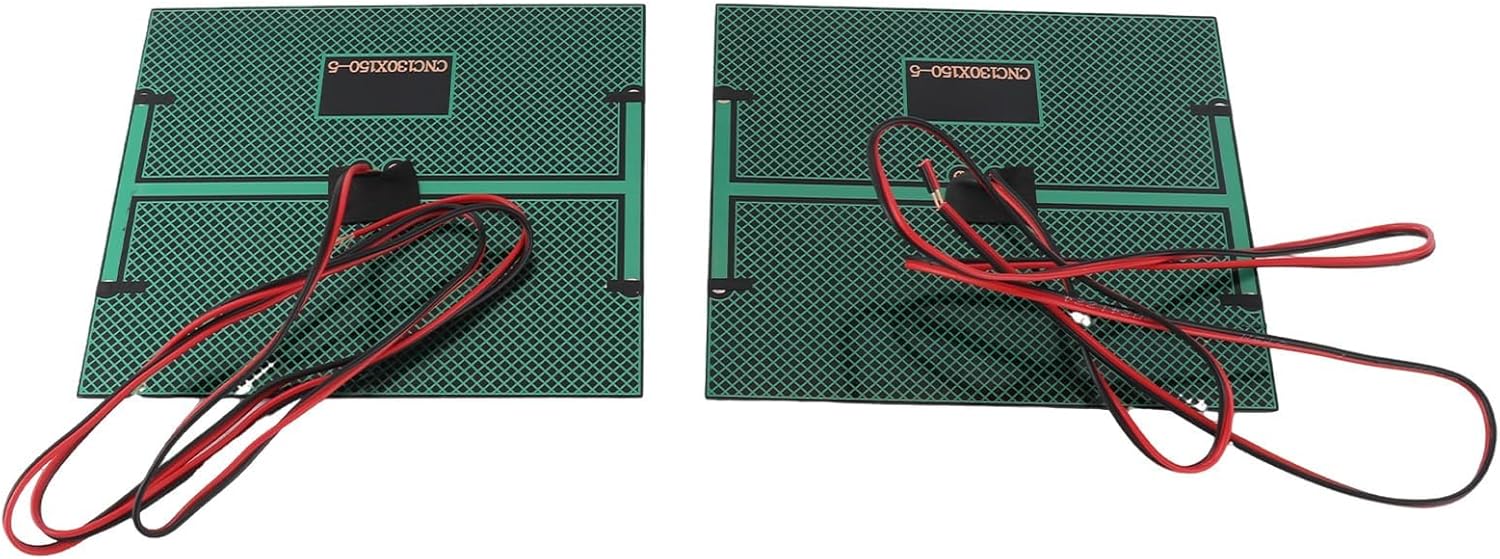

छवि: अगाडि view of two Walfront mini solar panels, showcasing their polycrystalline solar cells.

3. आवेदनहरू

These panels are suitable for:

• Powering small DC motors or fans.
• Charging small batteries (requires a charge controller, not included).
• Educational projects and scientific experiments.
• DIY solar lighting or small electronic devices.

मर्मतसम्भार

Minimal maintenance is required for these solar panels.

• सरसफाई: Regularly wipe the surface of the solar panels with a soft, damp cloth to remove dust, dirt, or debris. A clean surface ensures maximum light absorption and efficiency. Do not use abrasive cleaners or harsh chemicals.
• निरीक्षण: Periodically check the cables and connections for any signs of wear, damage, or corrosion. Ensure connections remain secure.
• भण्डारण: If storing the panels for an extended period, keep them in a dry, cool place away from direct sunlight and extreme temperatures.

समस्या निवारण

If your solar panels are not performing as expected, consider the following:

पावर आउटपुट छैन

• Check Sunlight: Ensure the panels are receiving direct, unobstructed sunlight. Even partial shading can drastically reduce output.
• सफा सतह: Verify that the panel surface is clean and free of dirt, dust, or obstructions.
• जडानहरू जाँच गर्नुहोस्: Inspect all wiring for loose connections, incorrect polarity, or damage.
• मल्टिमिटरको साथ परीक्षण: भोल्युम मापन गर्न मल्टिमिटर प्रयोग गर्नुहोस्tage output of the panel directly under sunlight. A 5V panel should show approximately 5V or slightly higher (open circuit voltage) in good sunlight.

कम पावर आउटपुट

• Angle and Orientation: Adjust the panel's angle and orientation to face the sun directly.
• तापक्रम: Extreme temperatures can affect solar panel performance.
• बादलको आवरण: Overcast conditions will naturally reduce power output.
• लोड मिलान: Ensure the connected device's power requirements are within the panel's capacity (5V, 500mA, 2.5W).

निर्दिष्टीकरणहरू

वारेन्टी जानकारी

Walfront products typically come with a standard manufacturer's warranty. For specific warranty details, including duration and coverage, please refer to the product packaging or contact Walfront customer support directly. Keep your proof of purchase for warranty claims.

समर्थन जानकारी

For technical assistance, troubleshooting not covered in this manual, or general inquiries, please visit the official Walfront webसाइट वा तिनीहरूको ग्राहक सेवा विभागमा सम्पर्क गर्नुहोस्।

Webसाइट: www.walfront.com

इमेल: support@walfront.com
