NEQUARE Cordless Vacuum Cleaner S12 Series Instruction Manual

1. परिचय

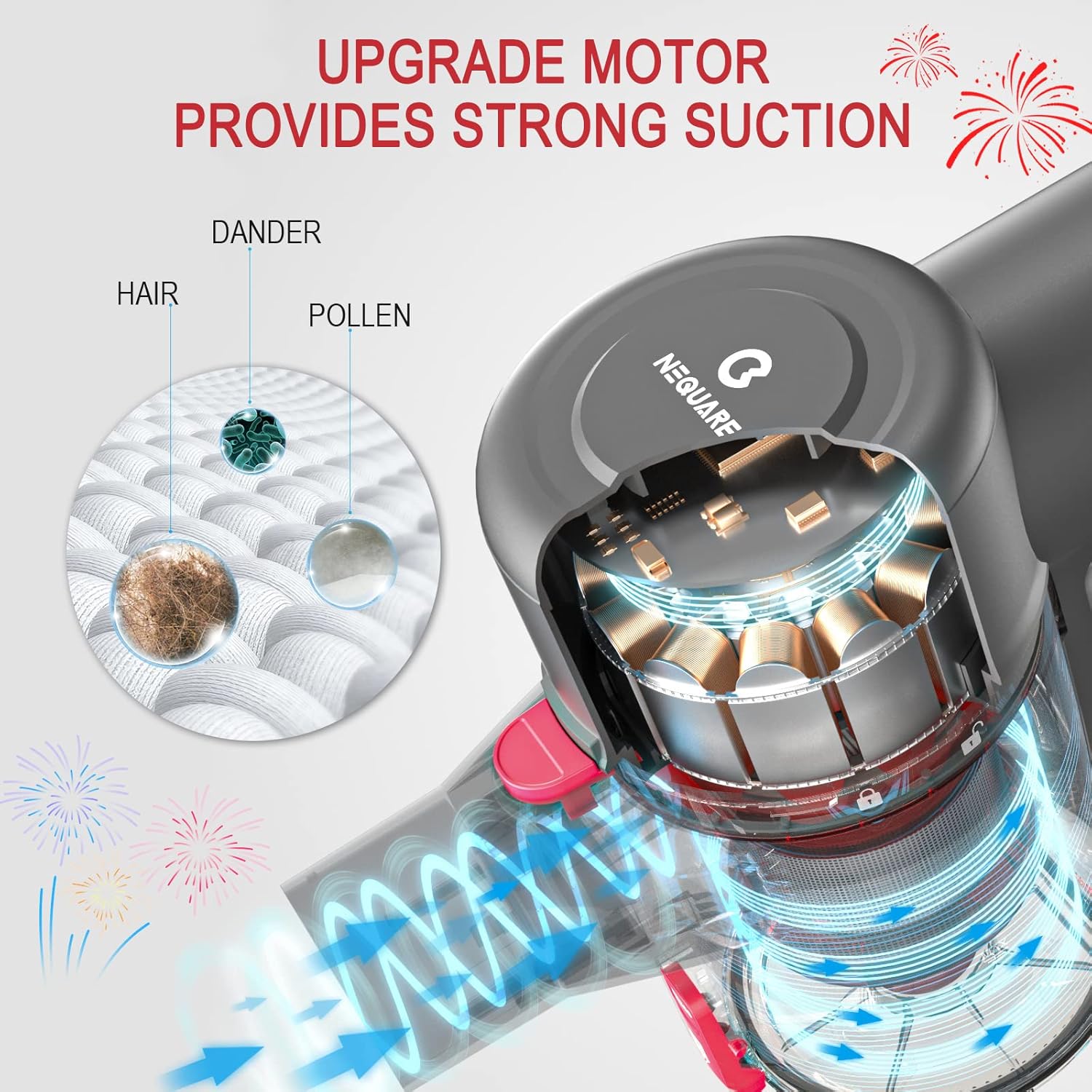

The NEQUARE S12 Series Cordless Vacuum Cleaner is designed for efficient and versatile cleaning across various surfaces. Equipped with a 175-watt motor and Root Cyclone Technology, it offers powerful suction for dust, debris, and pet hair. Its lightweight and self-standing design, along with a long-lasting battery, make cleaning convenient and hassle-free.

Figure 1: NEQUARE S12 Series Cordless Vacuum Cleaner

२. बक्समा के छ?

सबै वस्तुहरू उपस्थित छन् भनी सुनिश्चित गर्न कृपया प्याकेजको सामग्री जाँच गर्नुहोस्:

• Main Unit (Vacuum Body)
• एक्सटेन्सन ट्यूब
• एलईडी बत्तीहरू सहितको मोटराइज्ड ब्रश हेड
• क्राइभ उपकरण
• डस्टिङ ब्रश
• रिचार्जेबल लिथियम-आयन ब्याट्री
• पावर एडाप्टर/चार्जर
• Wall Mount Bracket with attachment storage
• अतिरिक्त फिल्टर
• उपयोगकर्ता पुस्तिका (यो कागजात)

चित्र २: सबै समावेश गरिएका घटकहरू

3. सेटअप

५.१ ब्याट्री स्थापना र चार्जिङ

Before first use, ensure the battery is fully charged. The battery is detachable for convenient charging.

1. To install the battery, align it with the slot on the main unit and push until it clicks securely into place.
2. To charge, connect the power adapter to the charging port on the battery (either attached to the vacuum or detached) and plug it into a wall outlet. The battery indicator lights will show charging progress.
3. A full charge provides approximately 40 minutes of runtime in low mode and 20 minutes in high mode.

Figure 3: Detachable battery for easy charging

3.2 Assembling Attachments

The vacuum cleaner features a modular design for easy assembly and versatility.

1. Connect the extension tube to the main unit by aligning the connectors and pushing until it clicks.
2. Attach the desired cleaning head (e.g., motorized brush head) to the other end of the extension tube, ensuring it clicks into place.
3. For handheld use, attach the crevice tool or dusting brush directly to the main unit.

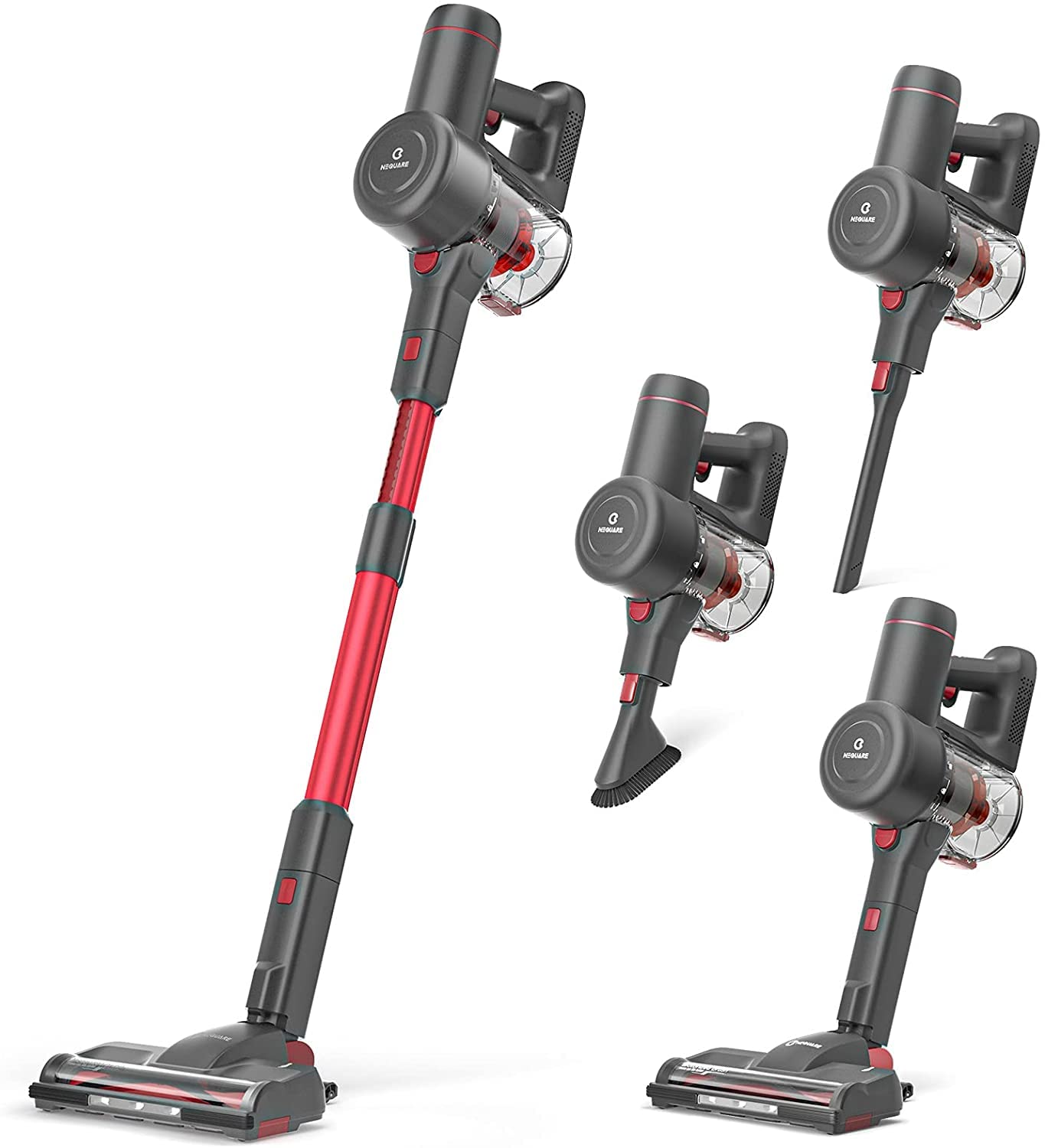

Figure 4: Attaching different cleaning tools

4. सञ्चालन निर्देशनहरू

४.१ पावर अन/अफ र मोड चयन

वैक्यूम सञ्चालन गर्न:

1. Pull the trigger on the handle to turn the vacuum on. It will start in standard (low) mode.
2. Press the '+' button on the main unit to switch to Max mode for increased suction power. Press '-' to return to standard mode.
3. Release the trigger to turn the vacuum off.

४.३ विभिन्न सतहहरू सफा गर्ने

The motorized brush head is suitable for both hard floors and low-pile carpets. The integrated LED lights illuminate the cleaning path, making dust and debris visible.

• For hard floors, use standard mode. The brush roll can be turned off for gentle cleaning.
• For carpets, use Max mode for deep cleaning and effective pet hair pickup.

Figure 5: Standard mode for dust, pet hair, etc., and Max mode for pet food, etc.

४.२ विशेष संलग्नकहरू प्रयोग गर्दै

Utilize the included attachments for targeted cleaning:

• दरार उपकरण: Ideal for narrow gaps, corners, and edges (e.g., between sofa cushions, along baseboards).
• धूलो ब्रश: Perfect for delicate surfaces, curtains, upholstery, and car interiors.

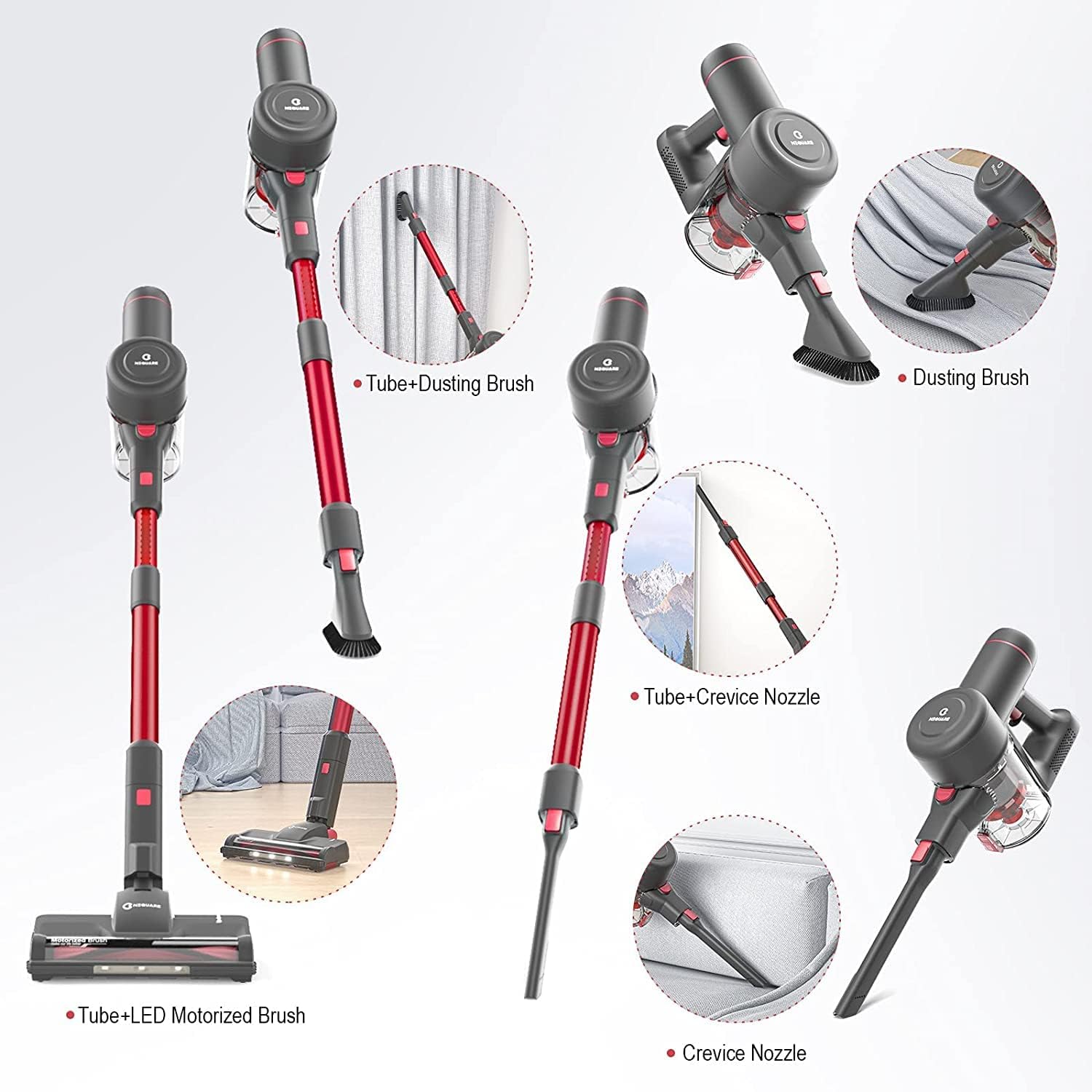

Figure 6: Versatile cleaning with crevice tool and dusting brush

5. मर्मतसम्भार

७.१ डस्टबिन खाली गर्ने

Regularly empty the dustbin to maintain optimal suction power. Do not exceed the 'MAX' fill line.

1. Press the release button on the dustbin to detach it from the main unit.
2. Open the dustbin lid and empty contents into a trash receptacle.
3. Close the lid and reattach the dustbin to the main unit, ensuring it clicks into place.

Figure 7: Detaching and emptying the dustbin

३.१ फिल्टरहरू सफा गर्ने

The vacuum features a high-performance filtration system. Clean filters regularly to prevent loss of suction and ensure efficient operation.

1. डस्टबिन हटाउनुहोस्।
2. फिल्टर एसेम्बलीलाई घुमाउनुहोस् र बाहिर निकाल्नुहोस्।
3. Tap the filter gently to remove loose dust or rinse it under running water. Ensure it is completely dry before reinserting.
4. Replace the filter assembly and reattach the dustbin.

Figure 8: Components of the filtration system

5.3 Cleaning Brush Roll

Periodically check the motorized brush roll for tangled hair or debris. Remove any obstructions to maintain effective cleaning.

1. Detach the motorized brush head from the extension tube.
2. ब्रश रोल कभर अनलक गर्न सिक्का वा समतल उपकरण प्रयोग गर्नुहोस्।
3. Remove the brush roll and carefully cut away any tangled hair or fibers.
4. ब्रश रोल पुन: घुसाउनुहोस् र कभर सुरक्षित गर्नुहोस्।

T. समस्या निवारण

If you encounter issues with your NEQUARE S12 Series vacuum, please refer to the following common solutions:

Figure 9: Visual guide for troubleshooting

7. निर्दिष्टीकरणहरू

8. वारेन्टी र समर्थन

NEQUARE is a registered trademark. After the sale date, we offer a 12-month customer service plan. If there is any question, please contact us through the email provided in your purchase documentation.
