Bellababy Wearable Breast Pumps Hands Free Instruction Manual (Model BLA8022)

1. सेटअप

Before first use, ensure all parts are clean and properly assembled. The Bellababy Wearable Breast Pump is designed for easy assembly and customization.

1.1 घटक समाप्तview र विधानसभा

Familiarize yourself with the pump components and follow these steps for correct assembly. The pump includes 24mm flanges and additional inserts for 21mm, 19mm, and 17mm sizes to ensure a comfortable and efficient pumping experience.

छवि: माथिview of the Bellababy wearable breast pump components, including the motor unit, collection cup, and flange. This image illustrates the main parts that need to be assembled.

1. Choose the Correct Flange Size: The pump comes with 24mm flanges and inserts for 21mm, 19mm, and 17mm. Select the size that best fits your nipple to ensure comfort and optimal milk expression. The correct flange size is crucial for effective pumping and to prevent discomfort.
2. Assemble the Flange and Valve: Gently push the valve into the collector without gaps. Ensure the flange cut aligns with the milk outlet of the milk collector. Press the edges to ensure a snug fit with no gaps.
3. Attach the Diaphragm: Gently push the diaphragm into the milk collector without a gap.
4. Connect the Pump Motor: Align the assembled pump motor and push it into the milk collector, making sure it fits snugly with no gaps.
5. Cover the Lid: Cover the lid to prevent airborne dust and bacteria from entering when not in use.

Image: A close-up of the Bellababy breast pump showing the 24mm flange and the included 21mm, 19mm, and 17mm inserts. This highlights the customizable fit for different nipple sizes.

३.२ प्रारम्भिक चार्जिङ

Before the first use, fully charge the pump motor. The LCD display will show the battery indicator. A full charge ensures optimal performance. The pump features a Type-C charging port for convenience.

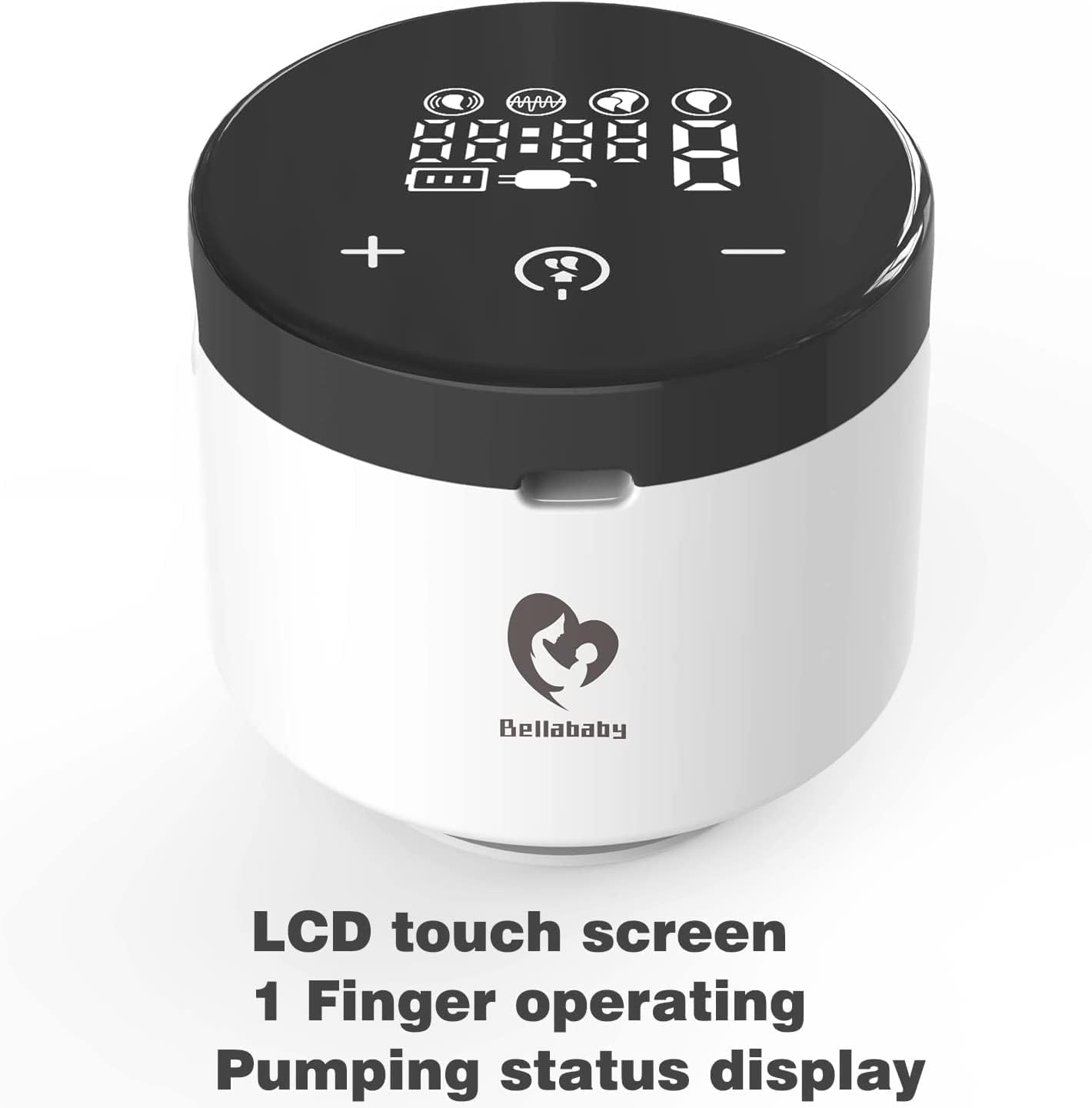

तस्बिर: माथिल्लो भाग view of the Bellababy wearable breast pump showing its LCD touch screen and control buttons. The screen displays pumping time, mode, suction level, and battery status.

४.४ सेटअप भिडियो गाइड

Watch this video for a visual guide on unboxing, assembling, and disassembling your Bellababy wearable breast pump.

2. सञ्चालन

The Bellababy wearable breast pump offers efficient and comfortable milk expression with its intuitive controls and multiple settings.

४.१ पावर अन/अफ र मोड चयन

Press the power button on the touch screen to turn the pump on or off. The LCD screen displays the pumping time, current mode, suction level, and battery status. The pump features 4 modes and 9 levels of suction strength, allowing you to customize your pumping experience for optimal milk production and comfort.

• मोडहरू: Cycle through the available modes (e.g., massage, expression, mixed) to find the most effective setting for your needs.
• सक्शन स्तरहरू: Use the '+' and '-' buttons to adjust the suction intensity from level 1 to 9. Start with a lower setting and gradually increase to a comfortable level.

2.2 Hands-Free Pumping

Designed for convenience, this pump allows for hands-free operation, enabling you to multitask while pumping. Its quiet motor (reduced by 48%) ensures discretion, whether at home, in the office, or on the go.

Image: A woman comfortably using two Bellababy wearable breast pumps while holding a baby, demonstrating the hands-free design and portability.

Image: A woman wearing two Bellababy wearable breast pumps, engaged in an activity with a baby, highlighting the discreet and hands-free nature of the product.

3. मर्मतसम्भार

Proper cleaning and maintenance are essential to ensure hygiene and prolong the lifespan of your Bellababy breast pump.

3.1 सफाई निर्देशनहरू

All parts that come into contact with breast milk are made of very soft liquid silicone and are dishwasher safe. For best results, clean immediately after each use.

1. छुट्याउन: Carefully separate all pump components (flange, valve, diaphragm, milk collector).
2. धुनुहोस्: Wash all disassembled parts (except the motor unit) with warm soapy water. Use a soft brush to clean hard-to-reach areas.
3. कुल्नु: सबै साबुनको अवशेष हटाउन सफा पानीले राम्ररी कुल्ला गर्नुहोस्।
4. सेनिटाइज: Sanitize parts by boiling in water (≤100°C / 212°F) for 5-10 minutes, using a steam sterilizer, or a sanitizing pot. Ensure the motor unit is NEVER washed or sanitized.
5. सुख्खा: Air-dry all parts completely on a clean surface or use a clean cloth before reassembling or storing.

Important: Do not wash or immerse the pump motor unit in water. Wipe it with a damp आवश्यक भएमा कपडा।

T. समस्या निवारण

If you encounter any issues with your Bellababy breast pump, refer to the following common troubleshooting tips:

• कुनै सक्शन वा कमजोर सक्शन:
  • Ensure all pump components are correctly assembled and sealed tightly.
  • Check that the valve and diaphragm are clean and undamaged. Replace if necessary.
  • Verify the flange size is appropriate for your nipple. An incorrect size can affect suction.
  • Ensure the motor unit is fully charged.
• पम्प सक्रिय छैन:
  • Check the battery level on the LCD screen. Charge the pump fully if the battery is low.
  • सुनिश्चित गर्नुहोस् कि पावर बटन दृढतापूर्वक थिचिएको छ।
• Discomfort During Pumping:
  • Adjust the suction level to a more comfortable intensity.
  • Re-evaluate your flange size. Using a flange that is too small or too large can cause pain.
  • Ensure your nipple is centered in the flange tunnel.

यदि समस्या रहिरह्यो भने, कृपया ग्राहक समर्थनलाई सम्पर्क गर्नुहोस्।

5. निर्दिष्टीकरणहरू

War. वारंटी र समर्थन

6.1 निर्माता वारेन्टी

The Bellababy Wearable Breast Pump comes with a एक वर्ष निर्माता वारेन्टीवारेन्टी दावीहरूको लागि कृपया आफ्नो खरिदको प्रमाण राख्नुहोस्।

6.2 ग्राहक समर्थन

For any questions, concerns, or warranty claims, please contact the manufacturer directly:

• निर्माता: HUIYOO
• निर्माता सम्पर्क जानकारी: huiyoo
• For further assistance, please refer to the official Bellababy website or your purchase platform for contact details.
