SNAKOL SK216 Pen Type Digital Multimeter Instruction Manual

1. परिचय

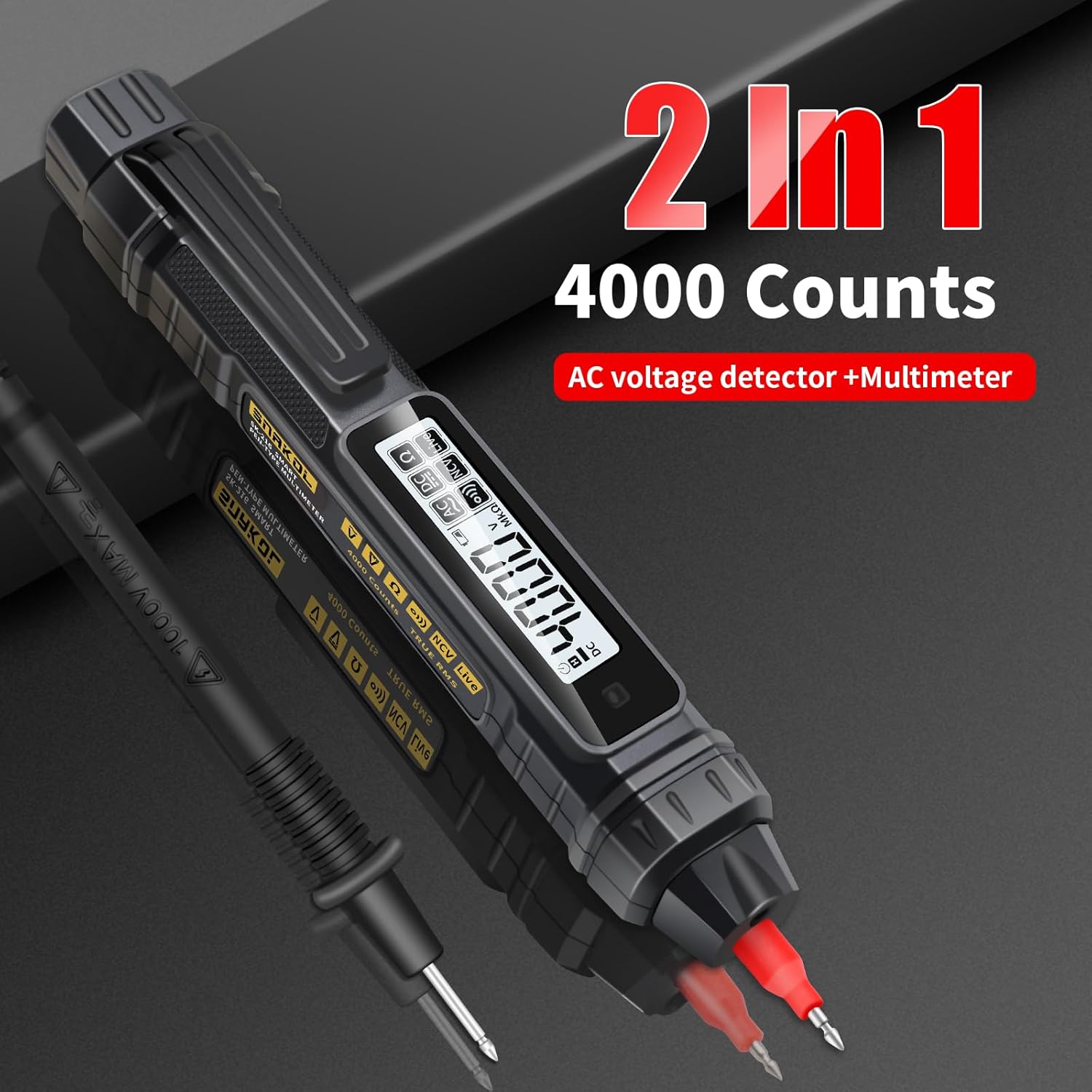

The SNAKOL SK216 is a versatile 2-in-1 pen-type digital multimeter designed for electrical equipment testing and maintenance. It features True RMS measurement capabilities for AC voltage, resistance, diodes, and continuity. Additionally, it includes functions such as Non-Contact Voltage (NCV) detection, live/null wire identification, and a clear LCD backlit screen for easy readings in various lighting conditions. Its compact and portable design makes it an essential tool for both professional electricians and home users.

2. सुरक्षा जानकारी

Always observe safety precautions when using electrical testing equipment. Failure to do so may result in injury or damage to the device. Read all instructions carefully before use.

• प्रत्येक मापन प्रकार्यको लागि निर्दिष्ट गरिएको अधिकतम इनपुट मानहरू नाघ्नुहोस्।
• कुनै पनि मापन गर्नु अघि परीक्षण लिडहरू राम्रो अवस्थामा छन् र राम्ररी जडान भएका छन् भनी सुनिश्चित गर्नुहोस्।
• यदि उपकरण क्षतिग्रस्त देखिन्छ वा राम्रोसँग काम गरिरहेको छैन भने प्रयोग नगर्नुहोस्।
• लाइभ सर्किटहरूसँग काम गर्दा अत्यधिक सावधानी अपनाउनुहोस्।
• Always disconnect power to the circuit before measuring resistance, continuity, or diodes.
• मापन गर्दा हात र औंलाहरू प्रोब ब्यारियरहरू पछाडि राख्नुहोस्।
• Replace batteries promptly when the low-battery indicator appears to ensure accurate readings.

3. प्याकेज सामग्री

तपाईंको प्याकेजमा सबै वस्तुहरू छन् भनी प्रमाणित गर्नुहोस्:

• 1 x SNAKOL SK216 Pen-type Multimeter
• 1 x Probe (removable multimeter lead)
• १ x प्रयोगकर्ता पुस्तिका (यो कागजात)
• 2 x 1.5V AAA ब्याट्रीहरू

Image: Contents of the SNAKOL SK216 package, including the multimeter, probe, and batteries.

4. सेटअप

4.1 ब्याट्री स्थापना

The SNAKOL SK216 requires two 1.5V AAA batteries. These are included in the package.

1. मल्टिमिटरको पछाडि ब्याट्री डिब्बाको कभर पत्ता लगाउनुहोस्।
2. डिब्बा खोल्नको लागि कभर स्लाइड गर्नुहोस् वा अनक्लिप गर्नुहोस्।
3. सही ध्रुवता (+ र -) सुनिश्चित गर्दै दुई AAA ब्याट्रीहरू घुसाउनुहोस्।
4. ब्याट्री कम्पार्टमेन्ट कभर सुरक्षित रूपमा बन्द गर्नुहोस्।

Image: Close-up of the SNAKOL SK216 multimeter with the battery compartment open, showing two AAA batteries inserted.

4.2 प्रोब जडान गर्दै

The included probe can be connected to the multimeter for various measurements.

1. Identify the input jack on the top of the multimeter.
2. Insert the plug end of the probe cable firmly into the input jack.
3. The probe tip can be removed or attached as needed for different measurement scenarios.

5. सञ्चालन निर्देशनहरू

The SNAKOL SK216 features automatic ranging and function switching for ease of use. Press the power button to turn the device on or off. The device will typically start in auto-ranging mode.

5.1 Function Switching and Auto-Range

The multimeter automatically detects the measurement type (AC/DC voltage, resistance, continuity) when powered on. You can cycle through different measurement modes by pressing the function button (often labeled 'FUNC' or similar, or indicated by a specific icon).

Image: Illustrates the one-touch measurement capabilities for resistance, AC voltagई, डीसी भोल्युमtage, and continuity (on-off test).

३.२.३ डीसी भोल्युमtage मापन

DC भोल्युम मापन गर्नtage:

1. Ensure the multimeter is powered on and in DC voltage mode (often auto-detected).
2. Connect the black probe to the negative terminal and the red probe to the positive terminal of the DC source.
3. भोल्युम पढ्नुहोस्tage मान LCD स्क्रिनमा प्रदर्शित हुन्छ।

३.२.४ एसी भोल्युमtage मापन

एसी भोल्युम मापन गर्नtage:

1. Ensure the multimeter is powered on and in AC voltage mode (often auto-detected).
2. Carefully touch the probes to the live and neutral terminals of the AC source.
3. भोल्युम पढ्नुहोस्tage मान LCD स्क्रिनमा प्रदर्शित हुन्छ।

5.4 प्रतिरोधी मापन

प्रतिरोध मापन गर्न:

1. प्रतिरोध मापन गर्नु अघि सर्किट वा कम्पोनेन्ट डि-एनर्जाइज गरिएको सुनिश्चित गर्नुहोस्।
2. Select resistance mode (Ω) or allow auto-detection.
3. Connect the probes across the component to be measured.
4. प्रदर्शनमा प्रतिरोध मान पढ्नुहोस्।

5.5 निरन्तरता परीक्षण

The continuity test checks for an unbroken path in a circuit. A buzzer will sound if resistance is below approximately 50Ω.

1. सर्किट डि-एनर्जाइज गरिएको सुनिश्चित गर्नुहोस्।
2. Select continuity mode (often indicated by a speaker icon) or allow auto-detection.
3. Touch the probes to the two points you want to test for continuity.
4. A beep indicates continuity.

८ गैर-सम्पर्क भोल्युमtage (NCV) पत्ता लगाउने

NCV प्रकार्यले AC भोल्युम पत्ता लगाउन अनुमति दिन्छtage प्रत्यक्ष सम्पर्क बिना, सुरक्षा बढाउँदै।

1. Select NCV mode (often indicated by a wave icon).
2. Bring the tip of the multimeter close to the conductor or electrical outlet.
3. An analog bar on the LCD screen, accompanied by beeps of varying rhythms, indicates the presence and strength of the electric field.

Image: Shows the multimeter performing NCV detection, with the screen displaying an analog bar and an indicator light.

5.7 Live/Null Wire Identification (Firewire/Zero Line)

This function helps distinguish between live (fire) and neutral (zero) wires.

1. Touch the multimeter's tip to the wire.
2. For a live wire (firewire), the indicator light will illuminate, the screen will display "----", and a "beep beep beep" sound will be emitted.
3. For a neutral wire (zero line), the indicator light will not illuminate, the screen will display "L iUE", and no sound will be emitted.

Image: Illustrates the multimeter detecting a live (firewire) and neutral (zero line) wire, showing distinct screen indicators and sounds.

५.४ ब्रेकपोइन्ट खोजकर्ता

The breakpoint finder function helps locate breaks in a cable.

1. Apply the multimeter tip along the length of the cable.
2. उपकरणले भोल्युमको उपस्थिति संकेत गर्नेछtage up to the point of the break. The signal will cease or change significantly past the break.

5.9 डाटा होल्ड प्रकार्य

डिस्प्लेमा हालको रिडिङ फ्रिज गर्न 'होल्ड' बटन थिच्नुहोस्। होल्ड प्रकार्य रिलिज गर्न यसलाई फेरि थिच्नुहोस्।

5.10 टर्चलाइट

The built-in flashlight can be activated to illuminate dimly lit work areas. Refer to the device's buttons for flashlight activation (often a long press on a specific button or a dedicated button).

6. मर्मतसम्भार

.6.1.१ सामान्य हेरचाह

• उपकरण सफा र सुख्खा राख्नुहोस्। नरम, घamp आवश्यक परेमा कपडा। घर्षण गर्ने क्लिनर वा घोलकहरू प्रयोग नगर्नुहोस्।
• मल्टिमिटरलाई प्रत्यक्ष घाम र अत्यधिक तापक्रमबाट टाढा चिसो, सुख्खा ठाउँमा भण्डार गर्नुहोस्।
• यन्त्र छोड्न वा बलियो प्रभावहरूको अधीनमा नदिनुहोस्।

6.2 ब्याट्री प्रतिस्थापन

When the low-battery indicator appears on the display, replace the batteries immediately to ensure accurate measurements and proper device function. Follow the steps outlined in Section 4.1 Battery Installation.

T. समस्या निवारण

8. निर्दिष्टीकरणहरू

9. वारेन्टी र समर्थन

SNAKOL products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official SNAKOL website. Customer services are always our top priority. If there are any concerns, please feel free to contact us for quick assistance.
