Waveshare 7-inch DSI Capacitive Touch Display 2 User Manual

परिचय

This manual provides detailed instructions for the Waveshare 7-inch DSI Capacitive Touch Display 2. This display features a 1280 × 800 resolution IPS panel, offering clear images and vivid colors with a 178° wide viewing angle. It supports up to 10-point capacitive touch, depending on the operating system, and incorporates an optical bonding toughened glass panel for enhanced durability and clarity. The display is designed for compatibility with various Raspberry Pi models (5/4B/3B/CM3/3+/4) and other development boards.

प्याकेज सामग्री

तल सूचीबद्ध सबै वस्तुहरू तपाईंको प्याकेजमा समावेश छन् भनी प्रमाणित गर्नुहोस्। यदि कुनै वस्तुहरू हराइरहेको वा बिग्रिएको छ भने, कृपया ग्राहक समर्थनलाई सम्पर्क गर्नुहोस्।

This image displays the Waveshare 7-inch DSI LCD (E) along with its accompanying accessories, including various FPC cables, a PH2.0 4PIN cable, a MIPI-DSI cable, and a screws pack for mounting.

• 7-inch DSI LCD (E) x1
• FPC 15PIN 1.0 pitch cable 160mm (opposite sides) x1
• PH2.0 4PIN cable ~200mm x1
• MIPI-DSI-Cable-12cm x1
• FPC 15PIN 1.0 pitch cable 50mm (opposite sides) x1
• स्क्रू प्याक x१

सेटअप

Follow these steps to properly set up your Waveshare 7-inch DSI Capacitive Touch Display 2 with your compatible device.

हार्डवेयर जडान

The display is compatible with various Raspberry Pi models (5/4B/3B/CM3/3+/4) and other development boards. Specific connection methods may vary slightly. Refer to the official Waveshare Wiki for detailed instructions for your specific model.

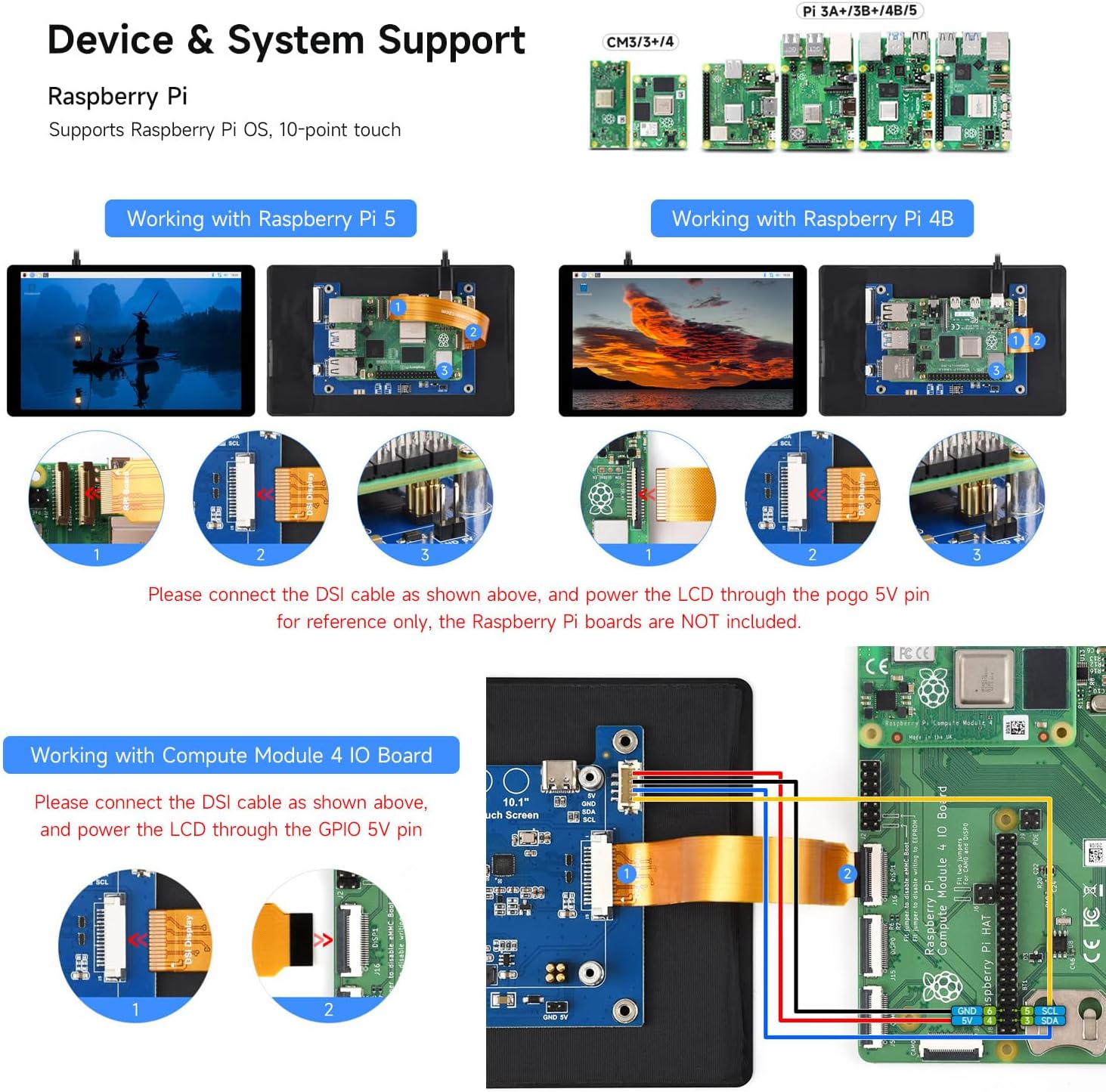

This image illustrates the device and system support for the display, showing various Raspberry Pi models and detailed connection examples for Raspberry Pi 5 and 4B, including DSI cable and power pin connections.

1. Connect the DSI Cable: Use the provided FPC cable to connect the DSI interface of the display to the DSI port on your Raspberry Pi motherboard. Ensure the cable is inserted with the correct orientation (gold fingers facing the correct direction).
2. पावर जोड्नुहोस्: For Raspberry Pi 5, power the LCD through the pogo 5V pin. For other models or specific setups, use the 2PIN cable to connect the display power port to the 5V and GND pins on the Raspberry Pi GPIO.
3. Secure the Raspberry Pi: Use the provided screws to secure the Raspberry Pi to the mounting holes on the back of the display.

सफ्टवेयर सेटिङहरू

After hardware connection, software configuration is required for optimal performance. It is recommended to use the official Raspberry Pi OS system version Bookworm.

1. Flash Raspberry Pi OS:
   • Connect the TF card to your computer using a card reader.
   • Use the Raspberry Pi Imager tool to write the Raspberry Pi OS image (Bookworm recommended) to the TF card.
   • During the flashing process, you can configure hostname, username, password, and Wi-Fi settings.
   • After flashing, safely eject the TF card and insert it into your Raspberry Pi.
2. परिमार्जन गर्नुहोस् config.txt:
   • पहुँच गर्नुहोस् config.txt file TF कार्डको मूल निर्देशिकामा।
   • Add the necessary configuration code for the DSI display to the end of the file and save. Specific code can be found on the Waveshare Wiki page for your model.
3. स्क्रिन घुमाउने सेटिङ:
   • Once the system boots, open the "Screen Configuration" application from the Preferences menu.
   • Navigate to "Screen" -> "DSI-2" -> "Touchscreen" and ensure the correct touchscreen option is selected.
   • Go to the "Orientation" menu and select your desired rotation angle (e.g., Left, Right, Inverted). Click "Apply" to save settings. The touch and display will adjust synchronously.
4. ब्याकलाइटको चमक समायोजन गर्नुहोस्:
   • Method 1 (System Settings): Open the "Screen Configuration" application, go to "Screen" -> "DSI-2" -> "Brightness", and select your desired brightness level.
   • Method 2 (Waveshare Application): Download and install the brightness adjustment application provided on the Waveshare Wiki. After installation, you can launch the "Brightness" application from the Start Menu -> Accessories to make adjustments.

प्रदर्शन अपरेटिंग

The Waveshare 7-inch DSI display offers a responsive and clear user experience.

• टच नियन्त्रण: The display supports 10-point capacitive touch, allowing for multi-finger gestures and precise interaction with the operating system.
• Visual Experience: With its 1280 × 800 IPS panel and 178° wide viewing angle, the display provides consistent and vibrant colors from various perspectives.
• चमक समायोजन: Adjust the backlight brightness as needed using the software settings described in the Setup section to suit your environment and preferences.

This image showcases the 7-inch DSI display's wide color gamut and high resolution, displaying a vibrant abstract image.

This image illustrates the 10-point capacitive touch capability of the display, showing multiple fingers interacting with the screen simultaneously.

निर्दिष्टीकरणहरू

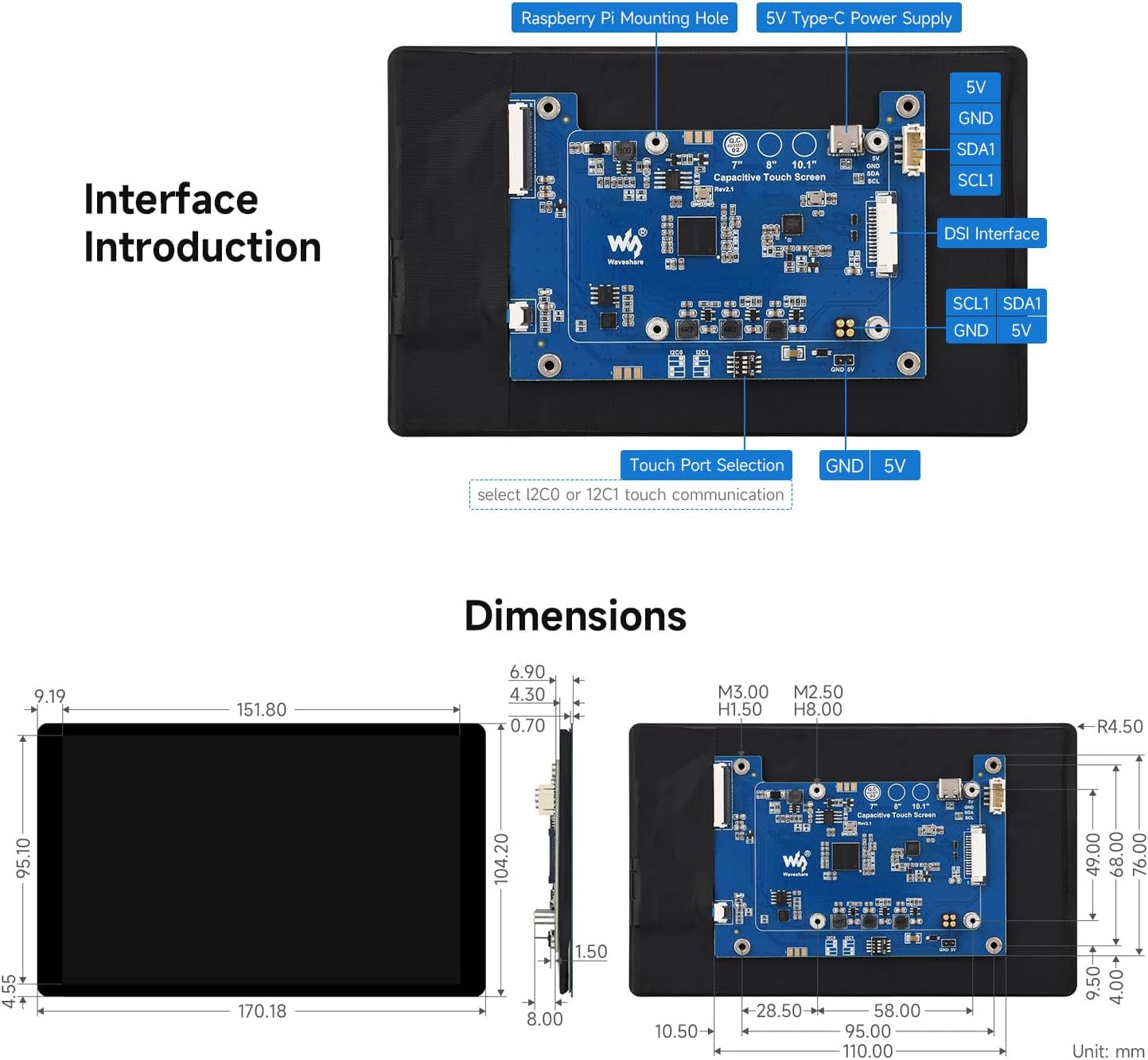

This image provides an interface introduction and detailed dimensions of the Waveshare 7-inch DSI LCD (E), highlighting key connection points and physical measurements.

समस्या निवारण

• डिस्प्ले अन नहुनु:
  • Ensure the DSI cable is correctly and securely connected at both ends.
  • Verify that the display is receiving adequate power (5V). Check power connections to the Raspberry Pi or development board.
  • पुष्टि गर्नुहोस् कि config.txt file has been correctly modified with the display's configuration code.
• टच फंक्शनले काम गरिरहेको छैन:
  • Check the DSI cable connection. A loose or incorrectly oriented cable can affect touch functionality.
  • In the "Screen Configuration" application, ensure the correct touchscreen option is selected under "Screen" -> "DSI-2" -> "Touchscreen".
  • If using a custom OS, ensure the necessary touch drivers are installed. Refer to the Waveshare Wiki for driver information.
• गलत प्रदर्शन अभिमुखीकरण:
  • Adjust the display orientation in the "Screen Configuration" application under "Orientation".
• Screen Flickering or Abnormal Display:
  • Ensure the power supply is stable and provides sufficient current. An unstable power supply can cause display issues.
  • कुनै पनि ढिलो जडान वा क्षतिग्रस्त केबलहरूको लागि जाँच गर्नुहोस्।

For more detailed troubleshooting steps and specific error codes, please visit the official Waveshare Wiki for your product model.

मर्मतसम्भार

• सरसफाई: स्क्रिनलाई बिस्तारै पुछ्न नरम, लिन्ट-रहित कपडा प्रयोग गर्नुहोस्। जिद्दी दागहरूको लागि, थोरै घुँडाampकपडालाई पानी वा स्क्रिन-सेफ क्लिनरले पुछ्नुहोस्। कठोर रसायन वा घर्षण गर्ने सामग्रीहरूबाट बच्नुहोस्।
• भण्डारण: लामो समयसम्म प्रयोगमा नभएको बेला, डिस्प्लेलाई प्रत्यक्ष घाम र अत्यधिक तापक्रमबाट टाढा चिसो, सुख्खा ठाउँमा राख्नुहोस्।
• ह्यान्डलिङ: Handle the display by its edges to avoid touching the screen surface or applying pressure to the panel.

वारेन्टी र समर्थन

This Waveshare product comes with a १ वर्षको वारेन्टी खरिद गरेको मितिदेखि। वारेन्टी दावीहरूको लागि कृपया आफ्नो खरिदको प्रमाण राख्नुहोस्।

For technical support, additional documentation, and the latest software updates, please visit the official Waveshare Wiki:

Waveshare Wiki

The Wiki provides comprehensive resources, including detailed setup guides, driver downloads, and community forums.
