Hyuduo 4-String PV Combiner Box Solar Protector (DC1000V) Instruction Manual

1. परिचय

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Hyuduo 4-String PV Combiner Box Solar Protector. Please read this manual thoroughly before installation and keep it for future reference. Proper installation and adherence to safety guidelines are crucial for optimal performance and longevity of the product.

सुरक्षा जानकारी

• Always ensure power is disconnected before performing any installation or maintenance.
• स्थानीय विद्युतीय संहिता र नियमहरू अनुसार योग्य कर्मचारीहरूद्वारा स्थापना गरिनुपर्छ।
• Do not open the combiner box or attempt repairs if you are not qualified.
• स्थापना र मर्मतसम्भार गर्दा उपयुक्त व्यक्तिगत सुरक्षात्मक उपकरण (PPE) लगाउनुहोस्।

2. उत्पादन समाप्तview

The Hyuduo 4-String PV Combiner Box is designed to protect your solar photovoltaic system. It combines the DC input from multiple solar strings into a single output, providing essential protection against short circuits, overcurrents, and surges. Its robust construction and IP65 waterproof rating make it suitable for outdoor installations.

Figure 2.1: A front-angle view of the Hyuduo 4-String PV Combiner Box, showcasing यो सेतो छ casing, transparent lid, and four external solar connectors on the bottom right side.

Figure 2.2: A side-angle view of the Hyuduo 4-String PV Combiner Box, showing the transparent lid and the overall robust design suitable for outdoor use.

Key features include a transparent lid for easy status monitoring of the main switch and lightning arrester, and pre-wired cables for simplified installation.

3. निर्दिष्टीकरणहरू

Figure 3.1: An image illustrating the physical dimensions of the Hyuduo 4-String PV Combiner Box, with measurements in millimeters and inches for length (214mm/8.43in), height (218mm/8.58in), and depth (98mm/3.86in).

4. प्याकेज सामग्री

प्याकेज खोल्दा कृपया सबै वस्तुहरू उपस्थित छन् र क्षति नभएको प्रमाणित गर्नुहोस्:

• 1 x Solar Combiner Box
• 4 x Male Plugs
• 4 x Female Plugs
• 2 x Waterproof Connectors
• 8 x Cores (Terminals)
• 4 x स्क्रू
• 4 x एंकरहरू
• 1 x Solar Special Wrench
• १ x निर्देशन पुस्तिका (यो कागजात)

5. स्थापना

The Hyuduo PV Combiner Box is designed for easy installation with pre-wired cables and ground wires. Follow these steps for a secure setup:

5.1 Mounting the Combiner Box

1. Choose a suitable location for mounting the combiner box. Ensure it is easily accessible for maintenance and protected from direct sunlight if possible, though its IP65 rating allows outdoor exposure.
2. Use the provided screws and anchors to securely fasten the combiner box to a flat, stable surface. The installation clips allow for quick fixing to any regular surface.

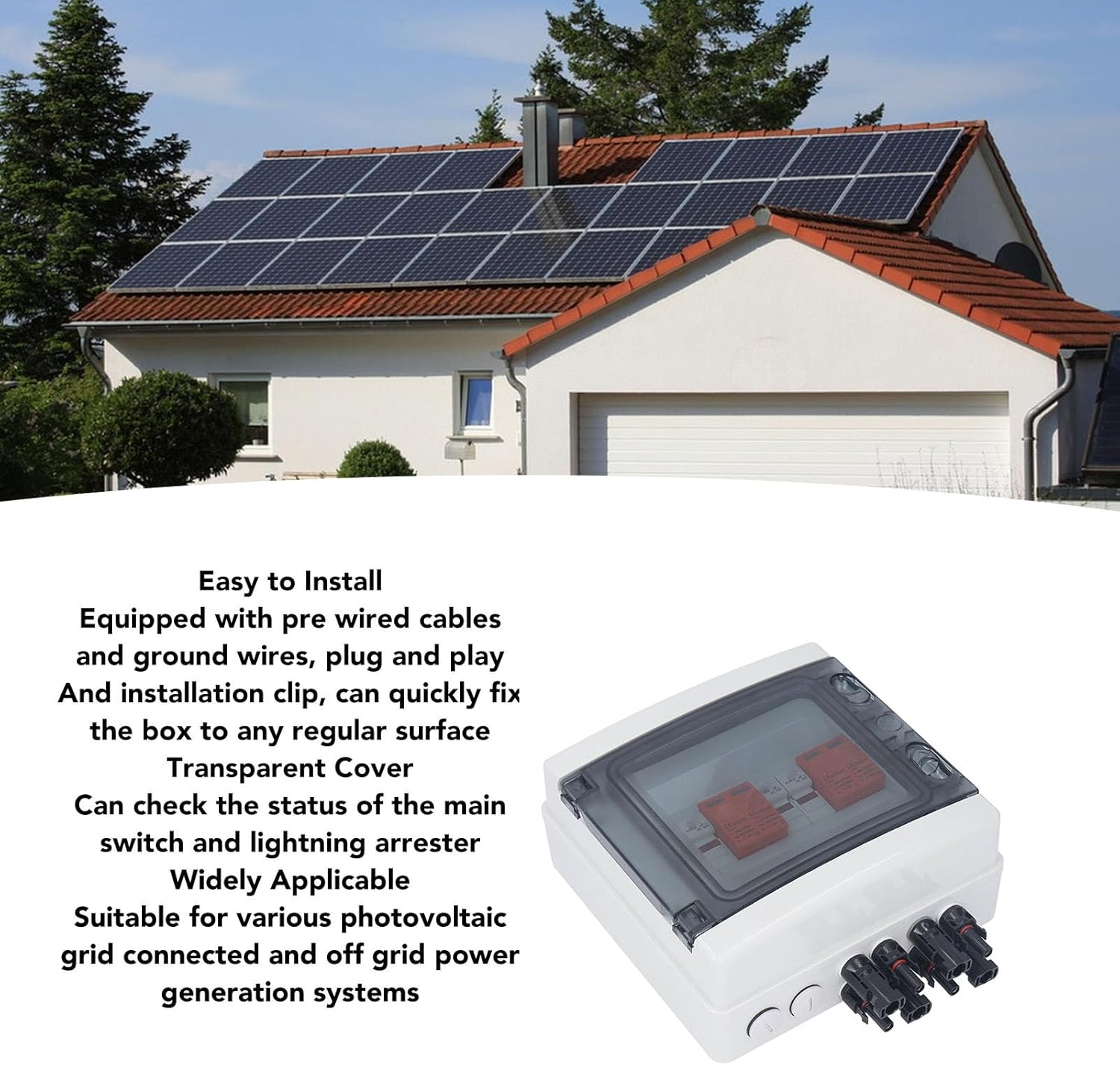

Figure 5.1: An image featuring the PV Combiner Box superimposed over a rooftop with solar panels, accompanied by text describing its easy installation, transparent cover for status checks, and wide applicability for photovoltaic systems.

१० तारि Conn जडानहरू

The combiner box supports 2 input strings and 2 output strings. Refer to the diagram below for typical off-grid and on-grid solar system connections.

• Connect the positive (+) and negative (-) cables from your solar panel strings to the designated input terminals within the combiner box.
• Connect the output cables from the combiner box to your inverter or charge controller, ensuring correct polarity.
• Utilize the provided waterproof connectors for all external cable connections to maintain the IP65 rating.
• सम्पर्कहरू खुकुलो हुनबाट जोगाउन र सम्भावित खतराहरूबाट बच्न सबै जडानहरू कडा र सुरक्षित छन् भनी सुनिश्चित गर्नुहोस्।

Figure 5.2: A detailed diagram comparing off-grid and on-grid solar power system configurations. Both diagrams show solar panels connected to the combiner box, which then connects to an inverter and other components like batteries (off-grid) or the utility grid (on-grid).

5.3 प्रारम्भिक जाँच

After all connections are made, double-check all wiring for correctness and security before energizing the system.

6. सञ्चालन

Once installed and connected, the Hyuduo PV Combiner Box operates automatically to protect your solar system. The transparent lid allows for visual inspection of the internal components:

• Main Switch Status: Observe the main switch through the transparent cover. Its position indicates whether the circuit is open or closed.
• Lightning Arrester Status: The lightning arrester module typically has an indicator. A हरियो indicator signifies normal operation, while a रातो indicator suggests the protection module needs replacement.

7. मर्मतसम्भार

Regular maintenance ensures the continued safe and efficient operation of your PV Combiner Box:

• आवधिक दृश्य निरीक्षण: Annually inspect the combiner box for any signs of physical damage, corrosion, or loose connections. Check the integrity of the waterproof seals.
• स्थिति जाँच: Regularly check the status indicator of the lightning arrester through the transparent lid. If it shows रातो, replace the module promptly.
• सरसफाई: Keep the exterior of the box clean from dust and debris. Use a soft, damp सफाईको लागि कपडा। घर्षण क्लीनर वा घोलकहरू प्रयोग नगर्नुहोस्।
• फ्यूज प्रतिस्थापन: If a fuse blows, replace it with a fuse of the exact same rating (10x38mm 15A). Always disconnect power before replacing fuses.

Figure 7.1: An image split into two sections: the left shows the combiner box under simulated rain, emphasizing its IP65 waterproof protection. The right side shows the box with a lightning bolt graphic, indicating its surge protection capabilities.

T. समस्या निवारण

This section addresses common issues you might encounter with your PV Combiner Box.

For issues not covered here or if troubleshooting steps do not resolve the problem, please contact qualified technical support.

9. आवेदनहरू

The Hyuduo PV Combiner Box is compatible with various solar photovoltaic systems, offering broad applicability for both grid-connected and off-grid power generation setups. It works seamlessly with different brands of solar panels and connectors, making it a versatile component for diverse solar installations.

Figure 9.1: A collage showing various environments where the PV Combiner Box can be used, including a garage with solar panels, a recreational vehicle (RV) setup, a workshop, and a general outdoor setting, highlighting its versatility.

10. वारेन्टी र समर्थन

वारेन्टी जानकारी, प्राविधिक सहयोग, वा सेवा सोधपुछको लागि, कृपया खरिदको समयमा प्रदान गरिएको कागजातहरू हेर्नुहोस् वा आफ्नो खुद्रा विक्रेतालाई सम्पर्क गर्नुहोस्। खरिदको प्रमाणको रूपमा आफ्नो खरिद रसिद राख्नुहोस्।
