Generac CAM LOCK - Model 067042C Instruction Manual

1. परिचय

The Generac CAM LOCK, Model 067042C, is a component designed for securing specific Generac outdoor power equipment. This lock helps to ensure the proper closure and security of access panels or covers, contributing to the safe and reliable operation of your equipment. Please read this manual thoroughly before installation and use to ensure correct application and to prevent damage or injury.

2. सुरक्षा जानकारी

Always observe the following safety precautions when handling or installing the CAM LOCK:

• Ensure the equipment is powered off and disconnected from any power source before attempting installation or maintenance.
• जडान गर्दा उपयुक्त व्यक्तिगत सुरक्षात्मक उपकरणहरू (PPE) लगाउनुहोस्, जस्तै पन्जा र आँखा सुरक्षा।
• सानो भागहरू बच्चाहरूबाट टाढा राख्नुहोस्।
• If you are unsure about any installation step, consult a qualified technician or Generac customer support.

3. उत्पादन समाप्तview

The Generac CAM LOCK 067042C is a black-colored key lock designed for outdoor equipment. It consists of a bracket and a securing screw.

चित्र १: अगाडि view of the Generac CAM LOCK 067042C. This image shows the main body of the cam lock, which is a bracket with a securing screw at the top, designed to hold panels in place.

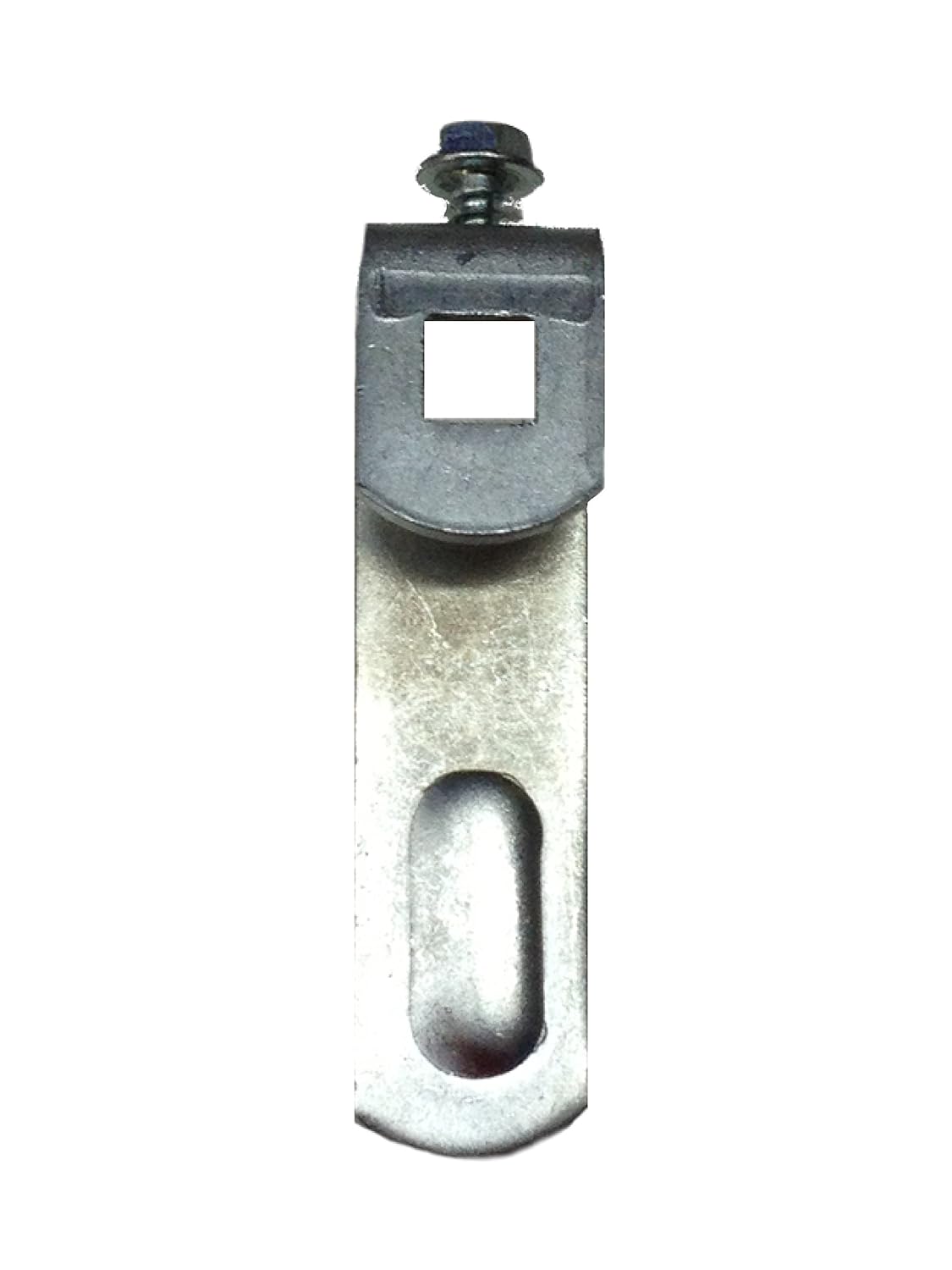

चित्र १: साइड view of the Generac CAM LOCK 067042C. This image illustrates the profile of the cam lock, highlighting its L-shaped bracket and the screw mechanism for attachment.

4. सेटअप र स्थापना

Follow these steps to properly install your Generac CAM LOCK 067042C:

1. माउन्ट गर्ने स्थान पहिचान गर्नुहोस्: Locate the designated mounting point on your Generac equipment where the cam lock is to be installed. This is typically on an access panel or cover.
2. Position the Lock: Align the cam lock bracket with the pre-drilled holes or mounting slots on the equipment.
3. फास्टनरहरूसँग सुरक्षित गर्नुहोस्: Insert the provided screw (or appropriate fastener if not included with the lock) through the cam lock and into the equipment's mounting point.
4. सुरक्षित रूपमा कस्नुहोस्: Using a suitable tool, tighten the screw until the cam lock is firmly attached and does not wobble. Do not overtighten, as this may strip the threads or damage the equipment.
5. परीक्षण कार्यक्षमता: After installation, test the cam lock by attempting to secure and unsecure the panel or cover it is intended to hold. Ensure it operates smoothly and provides a secure closure.

5. सञ्चालन निर्देशनहरू

To operate the Generac CAM LOCK 067042C:

• लक गर्न: Ensure the panel or cover is properly closed. Rotate the cam lock mechanism until it engages with the corresponding latch point on the equipment, securing the panel.
• अनलक गर्न: Rotate the cam lock mechanism in the opposite direction until it disengages from the latch point, allowing the panel or cover to be opened.

This cam lock is designed for manual operation, functioning as a latch. While the specifications indicate 'Key Lock', the visual representation suggests a simple cam mechanism. If your specific equipment configuration includes a key-operated variant, refer to your equipment's primary manual for key usage instructions.

6. मर्मतसम्भार

Regular maintenance ensures the longevity and proper function of your CAM LOCK:

• सरसफाई: Periodically wipe the lock with a clean, damp फोहोर र फोहोर हटाउन कपडा। फिनिशलाई क्षति पुर्‍याउन सक्ने कठोर रसायनहरूबाट बच्नुहोस्।
• निरीक्षण: Regularly inspect the cam lock for any signs of wear, damage, or corrosion. Check that the screw remains tight.
• स्नेहन (यदि लागू हो): If the mechanism feels stiff, a small amount of silicone-based lubricant can be applied to moving parts, if any, to ensure smooth operation. Avoid oil-based lubricants that can attract dirt.
• प्रतिस्थापन: If the cam lock shows significant wear or damage, replace it immediately with a genuine Generac replacement part to maintain equipment integrity and safety.

T. समस्या निवारण

सामान्य समस्या र समाधान:

Issue: Cam lock is difficult to rotate or engage.

• समाधान: Check for any obstructions or debris preventing smooth movement. Clean the area around the lock. If the mechanism is stiff, apply a small amount of silicone lubricant.
• समाधान: Ensure the panel or cover is correctly aligned before attempting to engage the lock. Misalignment can cause resistance.

Issue: Cam lock feels loose after installation.

• समाधान: Re-tighten the securing screw. If the screw continues to loosen, consider using a thread-locking compound (e.g., blue Loctite) or replacing the screw if it is stripped.
• समाधान: Inspect the mounting surface for damage or wear that might prevent a secure fit.

8. निर्दिष्टीकरणहरू

नोट: निर्दिष्टीकरण सूचना बिना परिवर्तन गर्न सकिन्छ।

9. वारेन्टी जानकारी

Generac products are manufactured to high-quality standards. For specific warranty details pertaining to the Generac CAM LOCK 067042C, please refer to the warranty documentation included with your original Generac equipment or visit the official Generac webसाइट। कुनै पनि वारेन्टी दावीको लागि खरिदको प्रमाणको रूपमा आफ्नो खरिद रसिद राख्नुहोस्।

10. ग्राहक समर्थन

For technical assistance, replacement parts, or further information regarding your Generac CAM LOCK 067042C, please contact Generac customer support or visit their official webसाइट:

• जेनेराक आधिकारिक Webसाइट: www.generac.com
• अमेजन ब्रान्ड स्टोर: अमेजनमा जेनेराक स्टोर

When contacting support, please have your product model number (067042C) and any relevant purchase information ready.
