रोजर टेक्नोलोजी R30/1204 स्वचालित स्लाइडिङ गेट मोटर प्रयोगकर्ता पुस्तिका

1. परिचय

This manual provides essential instructions for the installation, operation, and maintenance of the ROGER TECHNOLOGY R30/1204 Automatic Sliding Gate Motor. This electromechanical gear motor is designed for sliding gates weighing up to 1200 kg. It features an integrated H70 series control unit, an optical encoder, and a magnetic limit switch for precise and reliable operation. Please read this manual thoroughly before installation and use to ensure safe and correct operation.

2. सुरक्षा निर्देशनहरू

महत्त्वपूर्ण: Failure to follow these safety instructions may result in serious injury or damage to property.

• Installation must be performed by qualified personnel in compliance with local electrical and safety regulations.
• कुनै पनि स्थापना, मर्मतसम्भार, वा मर्मत कार्य गर्नु अघि बिजुली आपूर्ति विच्छेद भएको सुनिश्चित गर्नुहोस्।
• Do not allow children to play with or near the gate motor or its controls.
• Keep hands and loose clothing clear of moving parts of the gate and motor.
• Regularly inspect the gate and motor for signs of wear, damage, or misalignment.
• Do not attempt to repair the motor yourself. Contact qualified service personnel.

3. उत्पादन समाप्तview

The ROGER TECHNOLOGY R30/1204 is a robust motor designed for automating sliding gates. Its compact design houses a powerful 230V AC motor, an integrated control unit, and advanced safety features.

चित्र ५: बाहिरी भाग view of the R30/1204 motor unit.

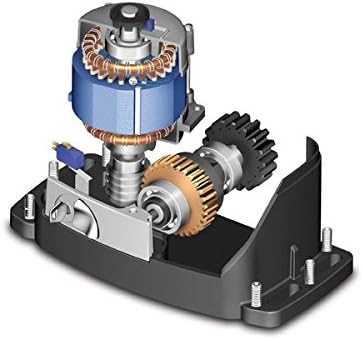

Figure 3.2: Internal components, highlighting the motor and gear mechanism.

मुख्य विशेषताहरु:

• Electromechanical gear motor for sliding gates.
• Suitable for gates up to 1200 kg.
• Integrated H70 series control unit.
• Optical encoder for precise gate positioning.
• Magnetic limit switches for accurate stop points.
• Irreversible gearbox for secure gate locking.

4. निर्दिष्टीकरणहरू

5. सेटअप र स्थापना

Installation of the R30/1204 motor requires technical expertise and should only be performed by qualified professionals. This section provides a general overview; refer to the detailed installation manual provided with the product for specific wiring diagrams and mounting instructions.

1. साइट तयारी: Ensure the gate track is clean, level, and free of obstructions. Prepare a stable concrete base for the motor unit.
2. मोटर जडान गर्ने तरिका: Securely fasten the motor unit to the prepared base using appropriate anchor bolts. Ensure correct alignment with the gate rack.
3. र्‍याक स्थापना गर्दै: Attach the gate rack to the sliding gate, ensuring proper meshing with the motor's pinion gear. Maintain a small clearance between the rack and the pinion.
4. विद्युत जडानहरू: Connect the motor to the 230V AC power supply. Wire the control unit (H70 series) according to the provided diagrams, including connections for safety photocells, remote controls, and other accessories.
5. सीमा स्विच समायोजन: Install and adjust the magnetic limit switches at the desired open and closed positions of the gate. These switches signal the motor to stop.
6. प्रारम्भिक कार्यक्रम: Power on the system and perform the initial programming steps for the control unit, which typically involves learning the gate's travel limits and setting operational parameters.
7. सुरक्षा उपकरण परीक्षण: Thoroughly test all safety devices, such as photocells and emergency stop buttons, to ensure they function correctly.

6. सञ्चालन निर्देशनहरू

Once installed and programmed, the R30/1204 motor provides automated control of your sliding gate.

• रिमोट कन्ट्रोल: Press the designated button on your remote control to open, close, or stop the gate.
• म्यानुअल रिलीज: In case of power failure or malfunction, the motor can be manually disengaged. Locate the manual release mechanism (usually a key-operated lever) on the motor unit, unlock it, and manually slide the gate. Remember to re-engage the motor after restoring power or resolving the issue.
• सुरक्षा सुविधाहरू: The optical encoder and safety photocells are designed to detect obstacles. If an obstacle is detected during closing, the gate will reverse. If detected during opening, the gate will stop.

7. मर्मतसम्भार

Regular maintenance ensures the longevity and reliable operation of your gate motor.

• मासिक:
  • Inspect the gate track and wheels for debris and clear any obstructions.
  • Check the gate rack for wear or damage.
  • Verify the proper functioning of safety photocells and limit switches.
• प्रत्येक छ महिना:
  • Lubricate moving parts of the gate (wheels, bearings) as recommended by the gate manufacturer.
  • Check all electrical connections for tightness and signs of corrosion.
  • Inspect the motor housing for any damage or water ingress.
• Annual Professional Check: It is recommended to have a qualified technician perform an annual inspection and service of the entire gate automation system.

T. समस्या निवारण

This section addresses common issues you might encounter. For more complex problems, consult a qualified technician.

9. वारेन्टी र समर्थन

Information regarding the specific warranty period and terms for the ROGER TECHNOLOGY R30/1204 motor is typically provided with the product documentation at the time of purchase. Please refer to your purchase receipt or contact your dealer for warranty details.

For technical support, spare parts, or service, please contact your authorized ROGER TECHNOLOGY dealer or installer.

• स्पेयर पार्ट्स उपलब्धता: जानकारी उपलब्ध छैन।
• सफ्टवेयर अपडेटहरू: जानकारी उपलब्ध छैन।
