1. परिचय
Welcome to the user manual for your Teenage Engineering PO modular400 analog synthesizer kit. The PO modular400 is a powerful and versatile modular synthesizer designed for creative sound exploration. This kit includes a built-in speaker and battery pack, making it a portable and self-contained instrument. This manual will guide you through the assembly, operation, maintenance, and troubleshooting of your new synthesizer.
२. बक्समा के छ?
Upon unboxing your PO modular400 kit, please ensure all the following components are present:
- 1 x Assembled Chassis
- 14 x Modules
- २ x ब्याट्री प्याक
- 1 x Power Splitter
- 37 x Trim Knobs
- 13 x Value Knobs
- 15 x Patch Cables
- ६ x चेसिस स्क्रू
3. उत्पादन समाप्तview
The PO modular400 is an analog synthesizer featuring a comprehensive set of modules for sound generation and manipulation. It includes a step sequencer, mixer, various oscillators (square wave, sawtooth wave, sine wave), a sample & hold module, LFO, envelope generators, voltagई नियन्त्रण amplifiers (VCAs), a noise generator, and a filter. It operates on 8 AA batteries or an optional external power adapter.

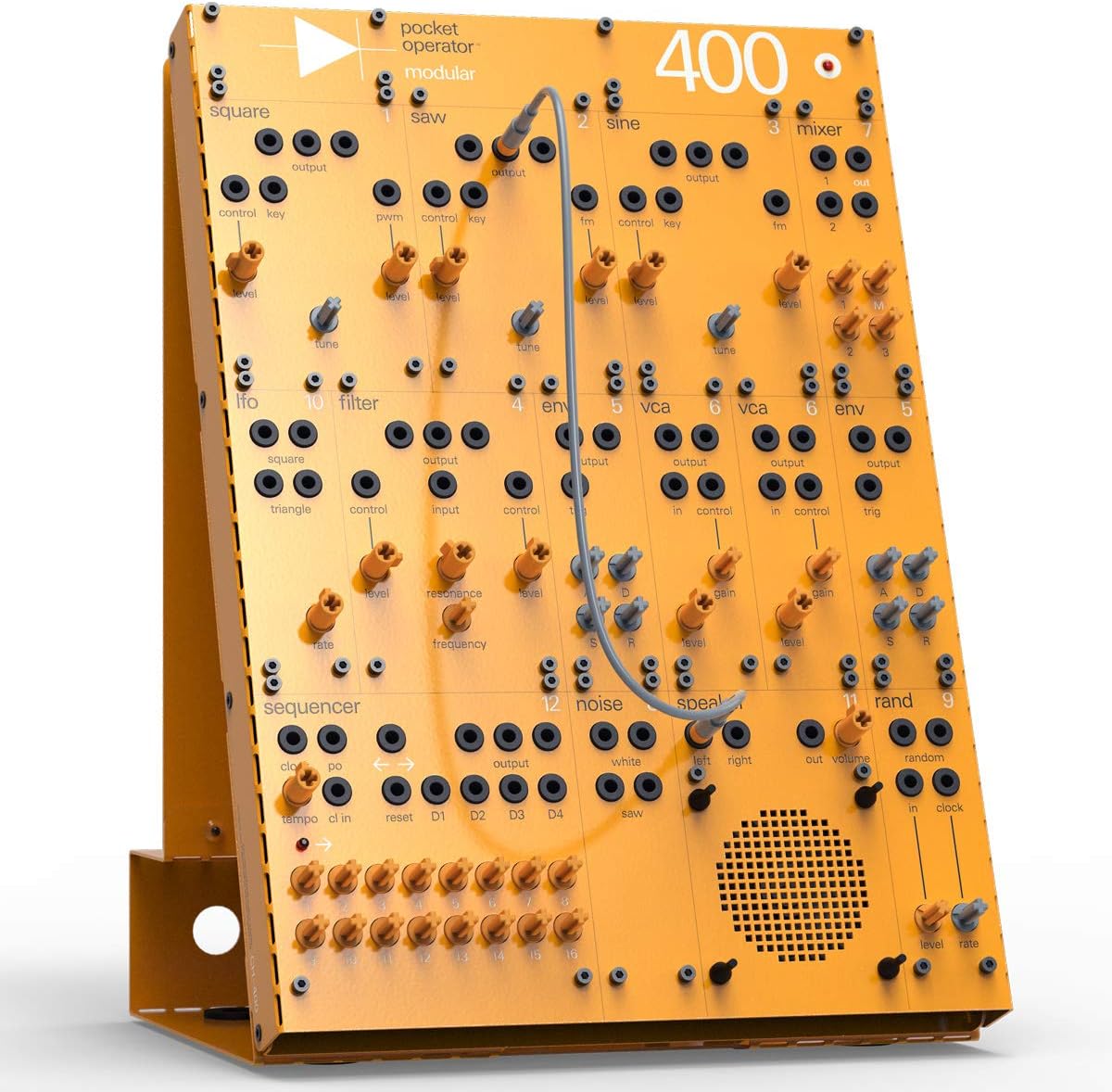

चित्र १: अगाडि view of the PO modular400, showcasing its modular layout with various knobs, jacks, and the integrated speaker.
Key Modules:
- Oscillators (VCOs): Generate the primary sound waves (square, sawtooth, sine).
- मिक्सर: Combines audio signals from different sources.
- चरण अनुक्रमक: Creates rhythmic patterns and melodies.
- Sample & Hold: Generates random or stepped voltages.
- LFO (Low-Frequency Oscillator): Produces slow oscillations for modulation effects.
- Envelope Generators (EG): आकार दिन्छ amplitude or other parameters of a sound over time.
- VCA (भोल्युमtage-नियन्त्रित Ampजीवित): Controls the volume of a signal using a control voltage.
- Noise Generator: Produces white noise for percussive sounds or effects.
- फिल्टर: Shapes the tonal characteristics of a sound by removing certain frequencies.
- वक्ता: Integrated speaker for direct audio output.
4. सेटअप
३.६ सभा
The PO modular400 comes as a kit requiring assembly. Follow the included visual instructions for attaching the modules to the chassis and securing them with the provided screws. Ensure all connections are firm before proceeding.
चित्र १: साइड view illustrating the assembled chassis and the battery compartment.
चित्र ४: पछाडि view showing the stand mechanism and the battery pack installation.
4.2 यन्त्रलाई पावर गर्दै
The PO modular400 can be powered by 8 AA batteries or an optional external power adapter (sold separately). Insert the batteries into the battery compartment located at the base of the unit, ensuring correct polarity. If using an external adapter, connect it to the designated power input jack.
५.२ प्रारम्भिक जडानहरू
Before creating complex patches, familiarize yourself with the basic signal flow. A common starting point is to connect an oscillator's output to a VCA's input, then the VCA's output to the mixer, and finally the mixer's output to the speaker or an external audio interface.
5. सञ्चालन निर्देशनहरू
5.1 Module Functions
Each module has specific inputs and outputs (jacks) and controls (knobs). Understanding their individual functions is key to creating sounds.
- Oscillators (Square, Saw, Sine): प्रयोग गर्नुहोस् धुन knob to adjust pitch and स्तर to control output volume. The नियन्त्रण कुञ्जी input allows for pitch modulation.
- मिक्सर: Features multiple inputs (1, 2, 3) and a single output. Use the individual स्तर knobs to blend signals.
- अनुक्रमक: Controls include टेम्पो, clock in, रिसेट, and individual step outputs (D1-D4).
- LFO: Generates low-frequency waveforms (square, triangle) for modulation. Adjust दर to change speed.
- फिल्टर: Shapes the timbre. आवृत्ति controls the cutoff point, and अनुनाद adds emphasis at the cutoff.
- Envelope (ENV): Generates a voltage contour. Typically used to control the VCA's gain over time.
- VCA: Acts as a voltage-controlled volume knob. The लाभ knob sets the maximum level, and the नियन्त्रण input modulates it.
- आवाज: Provides white noise output.
- वक्ता: अडियो सिग्नल जडान गर्नुहोस् बाहिर jack to hear sound directly from the built-in speaker.
Figure 5.1: Detail of the mixer module, illustrating its inputs and output.
Figure 5.2: Detail of the oscillator section and a patch cable connection.
5.2 प्याचिङ
Patching involves connecting modules using the provided patch cables to create signal paths. Experiment with different connections to understand how modules interact. For example, an LFO output can be patched to an oscillator's control key input for vibrato, or to a filter's control input for wah-like effects.
5.3 बाह्य जडानहरू
The PO modular400 can be integrated with other modular systems or semi-modular synthesizers. You can connect additional envelopes or other modules from external systems to expand its capabilities. Ensure voltage compatibility when connecting to external gear.
6. मर्मतसम्भार
.6.1.१ सफाई र भण्डारण
To maintain your PO modular400, wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents. Store the unit in a dry, dust-free environment away from direct sunlight and extreme temperatures.
6.2 ब्याट्री प्रतिस्थापन
When the sound quality degrades or the unit fails to power on, it's likely time to replace the batteries. Open the battery compartment at the base of the unit and replace all 8 AA batteries with new ones, ensuring correct polarity. Dispose of old batteries responsibly.
T. समस्या निवारण
If you encounter issues with your PO modular400, refer to the table below for common problems and their solutions.
| समस्या | सम्भावित कारण | समाधान |
|---|---|---|
| कुनै ध्वनि आउटपुट छैन। | Incorrect patching; low batteries; speaker volume too low; external output not connected correctly. | Check all patch cable connections. Replace batteries. Increase speaker volume. Ensure external audio device is properly connected and powered. |
| विकृत ध्वनि। | Signal levels too high; faulty patch cable. | Reduce module output levels or mixer input levels. Try a different patch cable. |
| युनिट पावर अन गर्दैन। | Dead batteries; incorrect battery insertion; power adapter issue. | Replace batteries, ensuring correct polarity. Check power adapter connection and functionality. |
| Knobs are stiff or difficult to turn. | Manufacturing tolerance; dust accumulation. | This can be a characteristic of the design. Gentle, consistent use may ease them. Avoid forcing. |
8. निर्दिष्टीकरणहरू
| सुविधा | विवरण |
|---|---|
| ब्रान्ड | किशोर इन्जिनियरिङ |
| मोडेल | PO modular400 |
| टाइप गर्नुहोस् | Analog Modular Synthesizer Kit |
| सामग्री | धातु |
| शक्ति स्रोत | 8 x AA Batteries (or optional external power adapter) |
| समावेश अवयवहरू | Synthesizer modules, chassis, battery pack, power splitter, knobs, patch cables, screws. |
9. वारेन्टी जानकारी
Teenage Engineering products are covered by a limited warranty against defects in materials and workmanship. Please refer to the official Teenage Engineering website or your purchase documentation for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
10. ग्राहक समर्थन
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official Teenage Engineering support webसाइट वा तिनीहरूको ग्राहक सेवा विभागमा सम्पर्क गर्नुहोस्। सम्पर्क जानकारी सामान्यतया तिनीहरूको आधिकारिकमा पाउन सकिन्छ webसाइट वा तपाईंको उत्पादन प्याकेजिङमा।
आधिकारिक Webसाइट: teenage.engineering
