1. परिचय
This manual provides detailed instructions for the assembly, operation, and maintenance of your Keyluv Queen Upholstered LED Bed Frame. This bed frame features a height-adjustable LED headboard, four large storage drawers, and a sturdy construction designed for comfort and durability. Please read all instructions carefully before assembly and use to ensure safe and proper operation.
2. सुरक्षा जानकारी
- Always assemble and use the bed frame according to the provided instructions.
- २३०९ पाउण्डको तौल सीमा नाघ्नु हुँदैन।
- Keep the area around the bed clear of obstacles to prevent entrapment.
- This bed frame is not intended for use by children.
- प्रयोग गर्नु अघि सबै स्क्रू र बोल्टहरू सुरक्षित रूपमा कसिएको सुनिश्चित गर्नुहोस् र समय-समयमा कसिलोपन जाँच गर्नुहोस्।
- ओछ्यानको फ्रेममा उभिनु वा हाम फाल्नु हुँदैन।
३.२। समावेश अवयवहरू
All components and clear instructions are included in one box. Each part is numbered for easy identification.
भागहरूको सूची:
- Bed Frame components (Headboard, Side Rails, Footboard)
- 4 Storage Drawers with wheels
- Solid Wooden Slats and plastic locks
- एलईडी लाइट पट्टी
- एलईडी लाइट रिमोट कन्ट्रोल
- एलईडी बत्तीहरूको लागि पावर एडाप्टर
- एसेम्बली हार्डवेयर (स्क्रू, बोल्ट, एलेन रेन्च)
- स्थापना म्यानुअल

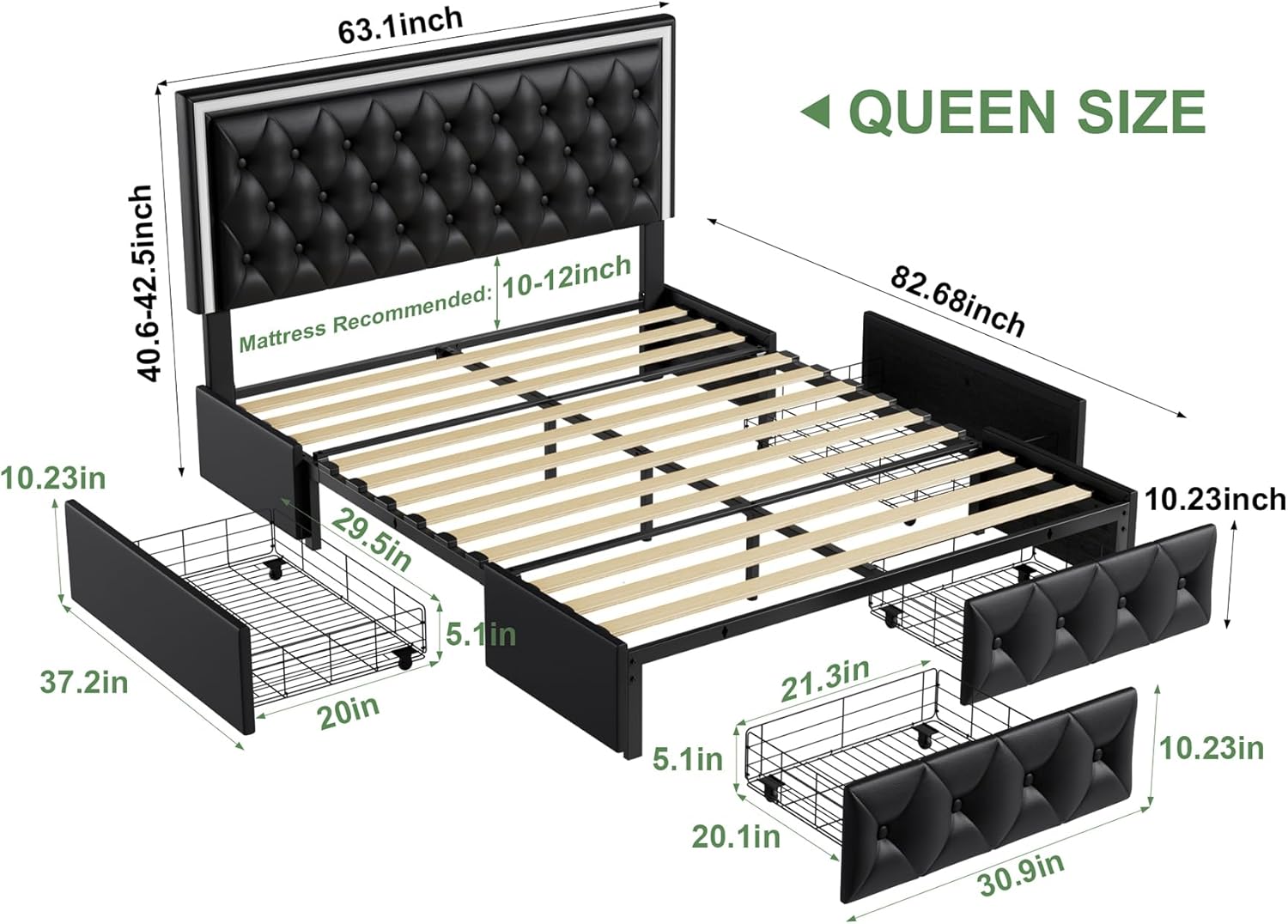

चित्र ४.१: सकियोview of Keyluv Queen Bed Frame dimensions and main components.
४. सेटअप र एसेम्बली निर्देशनहरू
Follow the step-by-step guide provided in the included installation manual. Each part is numbered to simplify the setup process. For a visual guide, please refer to the assembly video below.
असेंबली भिडियो गाइड:
Video 4.1: Detailed assembly instructions for the Keyluv LED Bed Frame with Storage.
प्रमुख विधानसभा चरणहरू:
- अवयवहरू तयार गर्नुहोस्: Unpack all parts and lay them out. Verify all components are present against the parts list.
- दराजहरू जम्मा गर्नुहोस्: Attach the wheels and front panels to the drawer frames. Ensure secure fastening.
- ओछ्यानको फ्रेम जम्मा गर्नुहोस्: प्रदान गरिएको हार्डवेयर प्रयोग गरेर साइड रेलहरूलाई हेडबोर्ड र फुटबोर्डमा जडान गर्नुहोस्।
- स्लेटहरू स्थापना गर्नुहोस्: Place the wooden slats into the designated slots on the bed frame. Secure them with the plastic locks to prevent movement and noise.
- हेडबोर्डको उचाइ समायोजन गर्नुहोस्: The headboard has two adjustable height settings. Choose the appropriate height for your mattress (recommended 10-12 inches).

Figure 4.1: Adjustable headboard height for optimal mattress fit.

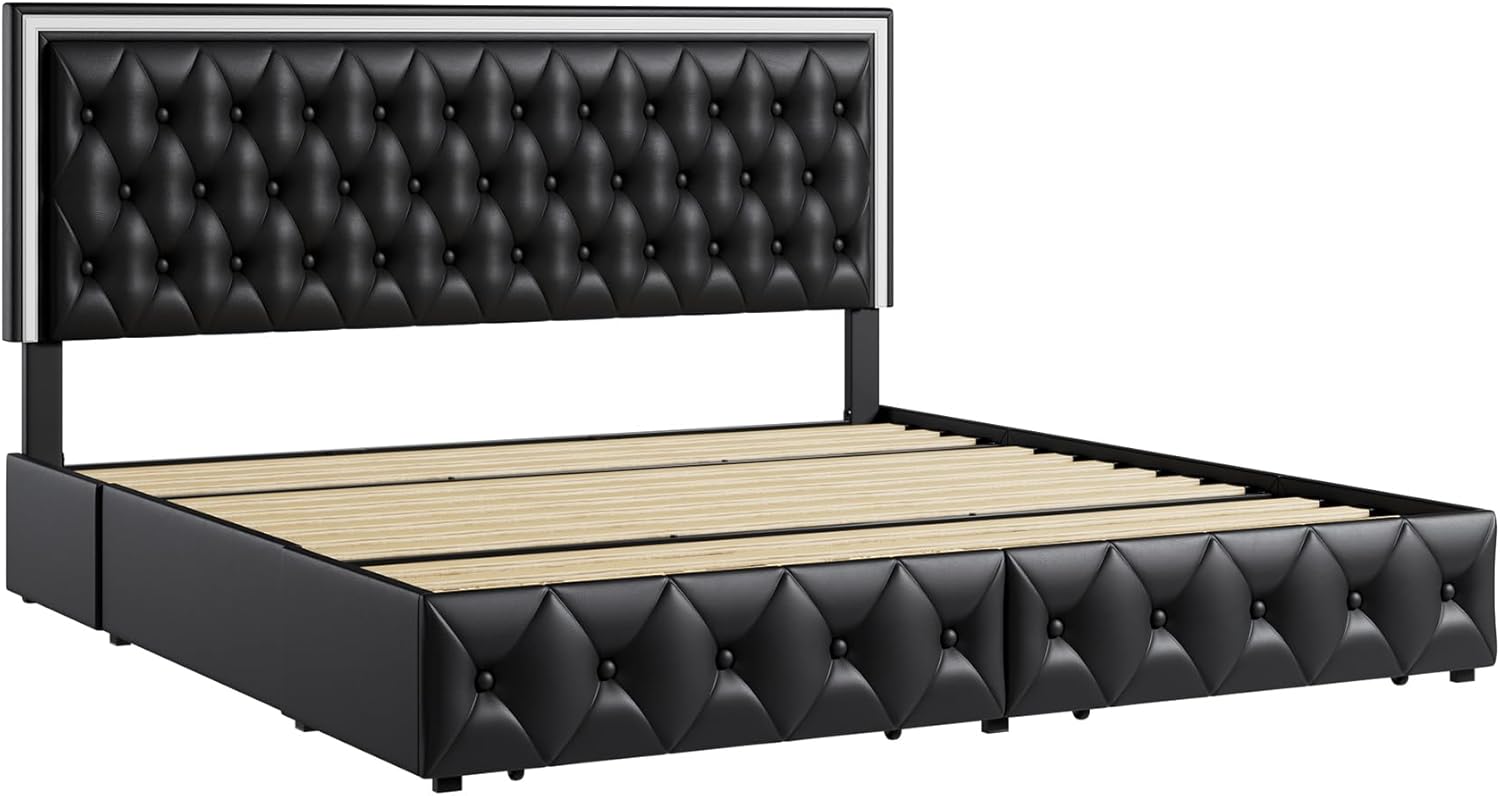

Figure 4.2: Solid wooden slats provide strong support without a box spring.
5. सञ्चालन निर्देशनहरू
५.१. एलईडी हेडबोर्ड बत्तीहरू
The integrated LED lights in the headboard offer various colors and modes to enhance your room's ambiance. They can be controlled via a remote or a smartphone application.
रिमोट कन्ट्रोल:
- Ensure the plastic film is removed from the remote control before use.
- Point the remote control at the headboard and operate it within 2-3 meters for optimal responsiveness.
- Use the 'ON' button to turn on the lights and 'OFF' to turn them off.
- Select desired colors, adjust brightness, and choose from various dynamic modes (e.g., flashing, fading) using the remote buttons.
- The remote also features a music activation mode, allowing the lights to react to sound.
स्मार्टफोन एप नियन्त्रण:
- Scan the QR code provided in the manual or on the controller to download and install the dedicated application.
- Ensure your smartphone's Bluetooth is enabled. The LED light will automatically connect to the app.
- Use the app to select colors from a color wheel, adjust brightness, choose from various modes, and set schedules for light on/off times.
- The app can also import music files from your phone to enable music synchronization with the LED lights.
Video 5.1: User guide for controlling the LED lights via app and remote.

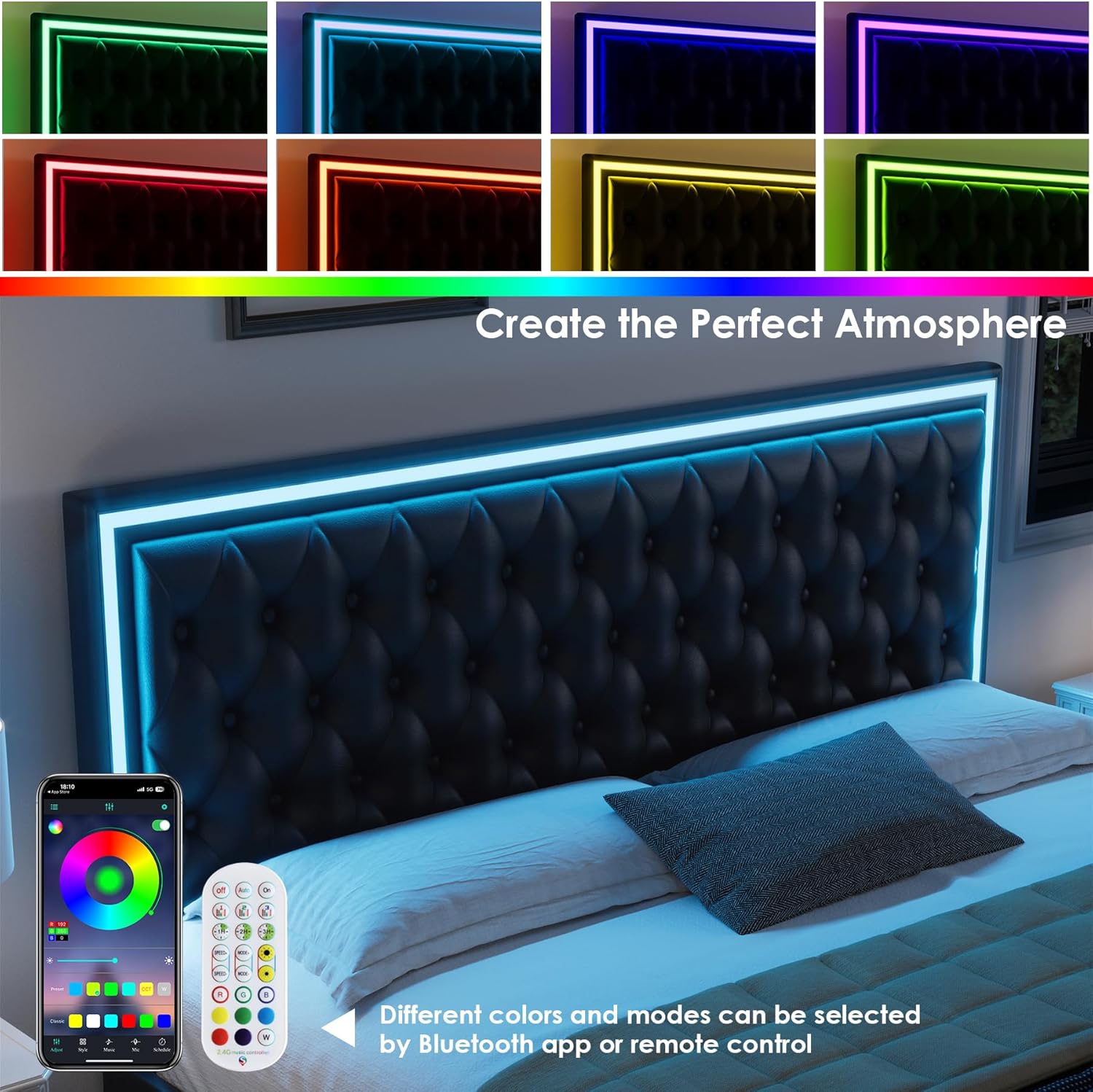

Figure 5.1: LED lights controlled by remote or smartphone app.
५.२. भण्डारण दराजहरू
The bed frame includes four spacious drawers for convenient storage. Each drawer is equipped with smooth-rolling wheels and a secure latch mechanism.
- To open a drawer, gently pull the front panel outwards.
- To close a drawer, push the front panel inwards until the secure latch engages, preventing accidental sliding.
- These drawers are ideal for storing clothes, bedding, toys, and other items to keep your bedroom tidy.

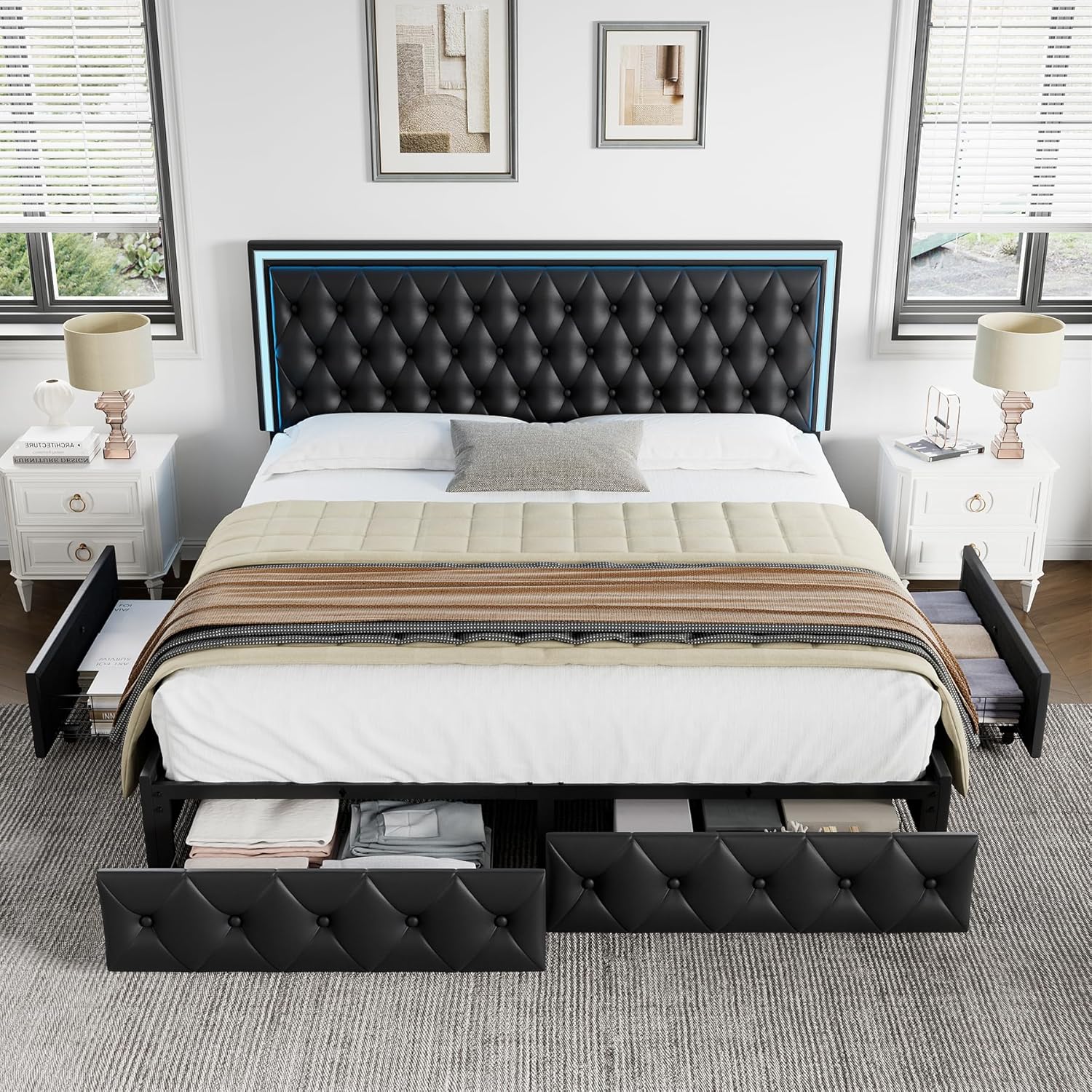

Figure 5.2: Four large storage drawers provide ampले स्पेस।

Figure 5.3: Drawer wheels ensure smooth and silent operation.
6. मर्मतसम्भार
- सरसफाई: विज्ञापनले असबाबवाला सतहहरू पुछ्नुहोस्amp cloth. Avoid harsh chemicals that may damage the faux leather.
- हार्डवेयर जाँच: सबै स्क्रू र बोल्टहरू कसिलो छन् भनी सुनिश्चित गर्न समय-समयमा जाँच गर्नुहोस्। स्थिरता कायम राख्न र चिच्याउनबाट रोक्नको लागि आवश्यकता अनुसार पुन: कस्नुहोस्।
- दराज मर्मत: Keep the drawer tracks clean from dust and debris to ensure smooth operation of the wheels.
T. समस्या निवारण
साझा समस्या र समाधान:
- चिच्याउने आवाज: Ensure all bolts and screws are securely tightened. Check that the wooden slats are properly seated in their plastic locks.
- एलईडी बत्ती काम गर्दैन: Verify that the power adapter is correctly connected to both the LED strip and a working power outlet. Check the remote control battery and ensure the plastic film is removed. If using the app, confirm Bluetooth is enabled and the app is connected to the device.
- दराजहरू सहज रूपमा नघुम्ने: Check for any obstructions in the drawer tracks or on the wheels. Clean any dust or debris. Ensure the drawers are correctly aligned.
- ओछ्यानको फ्रेमको अस्थिरता: Re-check all connections and ensure all hardware is fully tightened. Make sure the bed is placed on a level surface.
8. निर्दिष्टीकरणहरू
| सुविधा | विवरण |
|---|---|
| साइज | रानी |
| उत्पादन आयामहरू | ११"लिटर x ४"पाउट x १३"घण्टा |
| विशेष सुविधाहरू | LED Lighting, No Box Spring Needed, Remote Control, Storage Drawer, Upholstered |
| रङ | कालो |
| समाप्त प्रकार | नक्कली छाला |
| समावेश अवयवहरू | Bed Frame, Drawer, Installation Manual, LED Lights |
| मिल्दो गद्दा आकार | Queen (Recommended height: 10-12 inches) |
| ब्रान्ड | Keyluv |
| वस्तुको वजन | 112.4 पाउन्ड |
| वस्तु मोडेल नम्बर | PHSDLKSCDKCQ |
| विधानसभा आवश्यक | हो |
| उत्पादन हेरचाह निर्देशनहरू | D संग पुछ्नुहोस्amp कपडा |
9. वारेन्टी र समर्थन
Keyluv stands behind its products with dedicated customer service to ensure your complete satisfaction. For any questions, concerns, or assistance with your bed frame, please contact Keyluv customer service. Refer to your purchase documentation for specific warranty details and contact information.
All components and clear instructions arrive in one box. Each part is numbered, and the step-by-step guide simplifies setup. We stand behind our product with dedicated customer service to ensure your complete satisfaction.
