परिचय
Thank you for choosing the TEENFON Storage Cabinet. This manual provides detailed instructions for the safe assembly, proper use, and maintenance of your new cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
भागहरूको सूची
Before assembly, ensure all components are present and undamaged. Refer to the included hardware and panel diagrams for identification.
प्यानलहरू
- Top Panel (1x)
- Side Panels (2x)
- Bottom Panel (1x)
- Adjustable Shelf (1x)
- Back Panels (2x)
- Drawer Fronts (2x)
- Drawer Sides (4x)
- Drawer Backs (2x)
- Drawer Bottoms (2x)
- Door Panels (2x)
- Legs/Base Supports (2x)
हार्डवेयर
- क्याम लक र स्क्रूहरू
- काठ डोवेलहरू
- स्क्रू (विभिन्न आकारका)
- Door Hinges (4x)
- Door Handles (2x)
- Drawer Slides (4x)
- Magnetic Door Catches (2x)
- Shelf Pins (4x)
- Anti-tipping Hardware
- Screw Hole Stickers
विधानसभा निर्देशन
Follow these steps carefully for proper assembly. A power drill may be helpful but is not always necessary.
विधानसभा भिडियो गाइड
Official TEENFON Farmhouse Storage Cabinet Installation Video. This video provides a visual guide for the complete assembly process.
चरण २: आधार फ्रेम जम्मा गर्नुहोस्
Insert wood dowels into the designated holes on the base support panels. Connect these to the bottom panel, ensuring a snug fit. Secure with cam lock screws.
Illustration of connecting base support panels to the bottom panel using dowels and cam lock screws.
चरण ८: साइड प्यानलहरूलाई आधारमा जोड्नुहोस्
Connect the side panels to the assembled base. Use cam lock screws and dowels to ensure stability. Apply screw hole stickers to cover visible hardware.
Visual guide for attaching the side panels to the cabinet's base structure.
Step 3: Install Back Panels for Lower Section
Slide the thin back panels into the grooves of the lower cabinet section. Ensure they are fully seated before proceeding.
Demonstration of inserting the back panels into the grooves of the lower cabinet.
Step 4: Assemble Upper Shelf Unit
Construct the upper shelf unit by connecting the top panel, side panels, and fixed shelves using cam lock screws and dowels. Ensure all connections are secure.
विस्तृत view of the upper shelf unit assembly, highlighting the fixed shelves.
Step 5: Attach Upper Unit to Lower Cabinet
Carefully lift and align the assembled upper shelf unit onto the lower cabinet section. Secure it using the provided cam lock screws, ensuring a stable connection.
The two main sections of the cabinet are joined, forming the complete structure.
Step 6: Install Door Hinges and Handles
Attach the hinges to the cabinet doors using the small screws. Then, attach the door handles to the front of the doors. Mount the doors to the lower cabinet section, aligning the hinges with the pre-drilled holes.

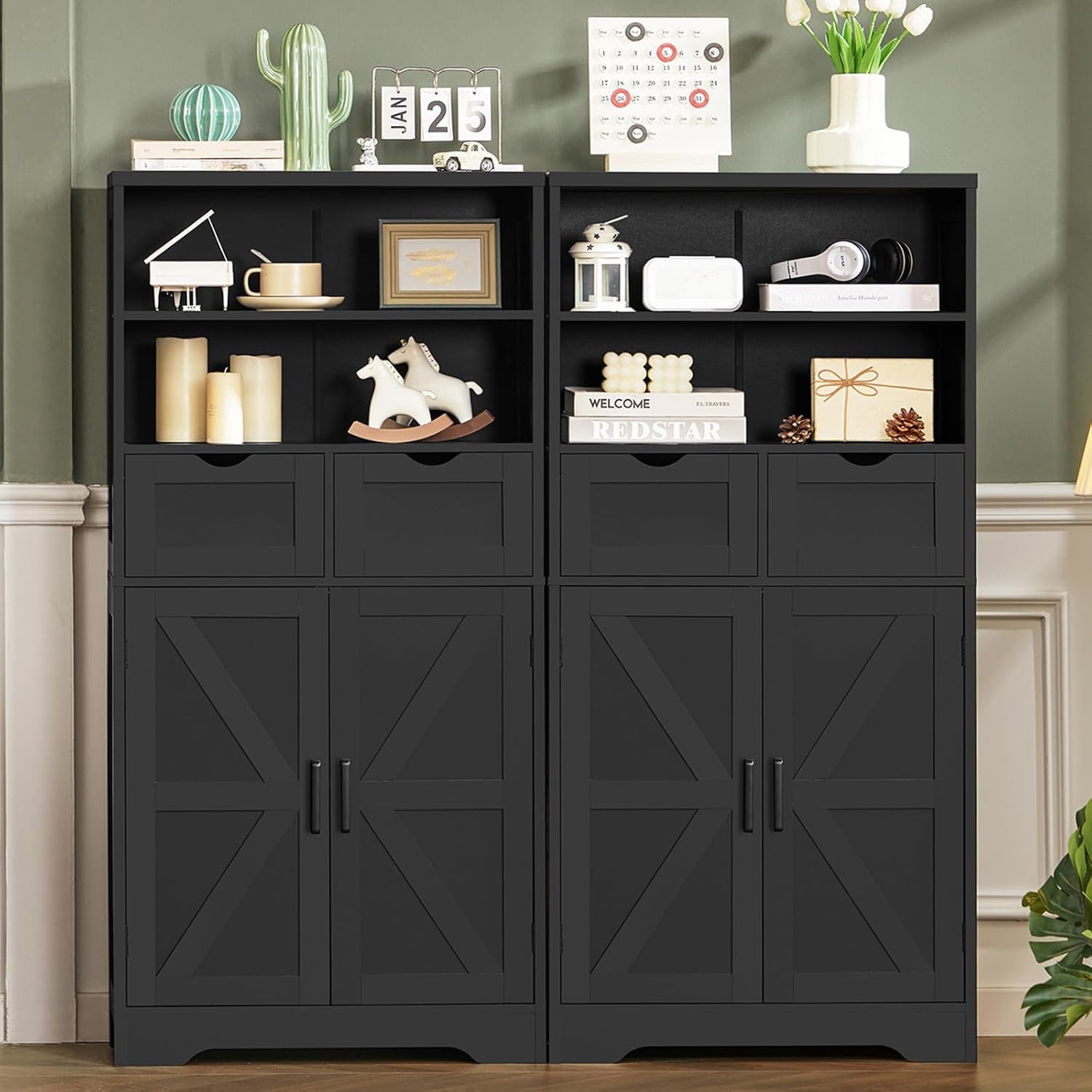

Focus on the door hardware installation, including hinges and handles.
चरण ४: दराजहरू जम्मा गर्नुहोस् र स्थापना गर्नुहोस्
Assemble the drawer boxes using the side, back, and bottom panels, securing them with screws. Attach the drawer slides to the sides of the drawers and inside the cabinet. Insert the assembled drawers into their respective compartments.
Steps for constructing and installing the two drawers into the cabinet.
चरण १२: समायोज्य शेल्फ स्थापना गर्नुहोस्
Insert the shelf pins into the desired height holes within the lower cabinet section. Place the adjustable shelf on top of the pins.
Demonstration of how to install and adjust the interior shelf.
Step 9: Secure Anti-Tipping Hardware
For safety, attach the anti-tipping hardware to the top rear of the cabinet and secure it to a wall stud. This prevents accidental tipping.
Installation of the anti-tipping safety mechanism.
उपयोग र सुविधाहरू

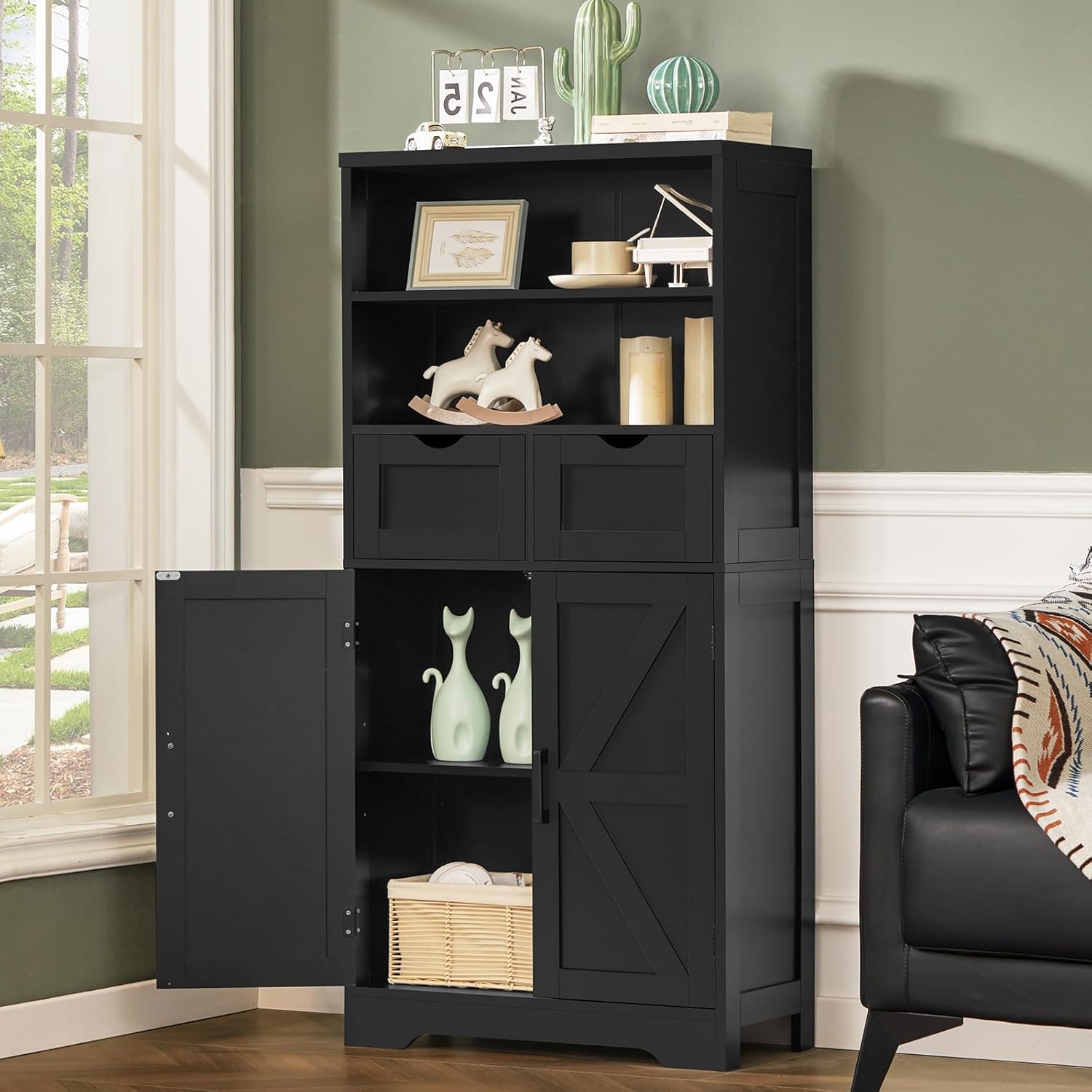

The TEENFON Storage Cabinet is designed for versatile storage in various rooms.
- प्रशस्त भण्डारण: Features 2 drawers for small items, a wide tabletop, 2 open shelves for display, and a roomy bottom cabinet for larger items.
- अनुकूलन योग्य भित्री भाग: The interior shelf in the lower cabinet is adjustable to 3 different heights, allowing you to accommodate items of various sizes.
- बहुमुखी नियुक्ति: Suitable for use as a kitchen pantry, bathroom cabinet, bookcase, or entryway cabinet.
मर्मतसम्भार
To ensure the longevity and appearance of your TEENFON Storage Cabinet, follow these maintenance guidelines:
- सरसफाई: नरमले सतहहरू पुछ्नुहोस्, डीamp कपडा। फिनिशलाई क्षति पुर्याउन सक्ने कठोर रसायन वा घर्षण गर्ने क्लीनरहरूबाट बच्नुहोस्।
- आर्द्रता संरक्षण: The cabinet is moisture-resistant, but it is recommended to wipe up spills immediately to prevent water damage.
- स्थिरता जाँच: सबै स्क्रू र जडानहरू कसिलो छन् भनी सुनिश्चित गर्न समय-समयमा जाँच गर्नुहोस्। आवश्यक परेमा पुन: कस्नुहोस्।
- ओभरलोडिङबाट बच्नुहोस्: Do not exceed the maximum weight limit of 180 pounds for the entire unit.
समस्या निवारण
| समस्या | सम्भावित कारण | समाधान |
|---|---|---|
| क्याबिनेट हल्लिएको छ | खुकुलो स्क्रू वा असमान जडान। | Ensure all cam lock screws and other fasteners are fully tightened. Check that the cabinet is on a level surface. |
| ढोकाहरू राम्ररी मिल्दैनन् | हिङ्गहरू सही तरिकाले जडान वा समायोजन गरिएका छैनन्। | Review hinge installation steps. Adjust hinge screws to align doors. |
| दराजहरू सहज रूपमा स्लाइड हुँदैनन्। | दराजका स्लाइडहरू गलत तरिकाले मिलाइएका वा बिग्रिएका छन्। | Check that drawer slides are installed correctly and are free of obstructions. Ensure screws are tight. |
| हराएको भागहरू | प्याकेजिङ त्रुटि। | आफ्नो खरिद विवरण र छुटेका पार्टपुर्जाहरूको साथ ग्राहक समर्थनलाई सम्पर्क गर्नुहोस्। |
निर्दिष्टीकरणहरू
- ब्रान्ड: टीनफन
- मोडेल: B0DPKB6BLC
- रंग: Black, Farmhouse
- उत्पादन आयाम: 11.4"D x 23.6"W x 49.6"H
- सामग्री: इन्जिनियर गरिएको काठ
- तौल सीमा: 180 पाउन्ड
- शेल्फ संख्या: ३ (२ वटा समायोज्य)
- दराज संख्या: 2
- विधानसभा आवश्यक: हो
वारेन्टी र समर्थन
TEENFON provides an 18-month warranty for quality problems. If you encounter any issues or have questions regarding your product, please contact our customer support team via email. We aim to provide a 100% satisfaction solution within 24 hours.
For further assistance, please visit the official TEENFON store on Amazon: TEENFON Store
