POPDEER PD-JA5 Jump Starter with Air Compressor Instruction Manual

1. परिचय

The POPDEER PD-JA5 is a versatile and powerful multi-functional device designed for automotive emergencies and general inflation needs. It combines a 5000A peak current jump starter, a 150 PSI portable air compressor, a 30W PD bidirectional fast-charging power bank, and an integrated LED flashlight. This manual provides essential instructions for safe and effective use of your device.

2. सुरक्षा जानकारी

यो उत्पादन प्रयोग गर्नु अघि कृपया सबै सुरक्षा निर्देशनहरू पढ्नुहोस् र बुझ्नुहोस्। यी निर्देशनहरू पालना गर्न असफल भएमा बिजुलीको झट्का, आगो वा गम्भीर चोटपटक लाग्न सक्छ।

• ध्रुवीयता संरक्षण: Always ensure correct connection of jumper cables to the battery terminals. The smart jumper cable is designed with reverse polarity protection to prevent damage.
• स्पार्क-प्रुफ: The device features spark-proof technology for safe connections.
• तापक्रम दायरा: Operate the device within the specified temperature range of -4°F to 140°F (-20°C to 60°C).
• अत्यधिक शुल्क संरक्षण: Built-in protection prevents overcharging of the internal battery.
• सर्ट सर्किट संरक्षण: The device is protected against short circuits.
• अति-वर्तमान संरक्षण: अत्यधिक विद्युत प्रवाहबाट बचाउँछ।
• ओभरलोड संरक्षण: अत्यधिक भारबाट हुने क्षतिलाई रोक्छ।
• उच्च/न्यून तापक्रम संरक्षण: Automatically adjusts operation or shuts down in extreme temperatures.
• भोल्युमtagई संरक्षण: भोल्युमबाट बचाउँछtagई बढ्छ।

Figure 1: POPDEER PD-JA5 10 Safety Features

3. प्याकेज सामग्री

तपाईंको प्याकेजमा सबै वस्तुहरू छन् भनी प्रमाणित गर्नुहोस्:

• 1x POPDEER PD-JA5 Jump Starter with Air Compressor
• १x स्मार्ट जम्पर केबलहरू
• 1x Air Pump Hose
• 4x Gas Nozzles (various adapters for different inflatables)
• १x टाइप-सी चार्जिङ केबल
• 1x प्रयोगकर्ता पुस्तिका
• 1x Portable EVA Carrying Case

चित्र १: प्याकेज सामग्री

4. उत्पादन समाप्तview

The POPDEER PD-JA5 features a robust design with an intuitive interface. The main unit includes a digital display, control buttons, and various ports for its multiple functions.

Figure 3: POPDEER PD-JA5 Main Unit

प्रमुख अवयवहरू:

• डिजिटल डिस्प्ले स्क्रिन: Shows battery level, inflation mode, and real-time pressure.
• नियन्त्रण बटन: Power/Start, Mode/Unit Switch, Preset Pressure Adjustment (+/-), LED Lighting.
• Air Pump Interface: हावाको नली जडान गर्नको लागि।
• Input/Output Port (USB-C): For charging the device and charging external devices.
• एलईडी प्रकाश: बहु-मोड टर्चलाइट।
• जम्पर केबल पोर्ट: स्मार्ट जम्पर केबलहरू जडान गर्नको लागि।

5. सेटअप

यन्त्र चार्ज गर्दै

Before first use, fully charge your POPDEER PD-JA5. It features 30W PD bidirectional fast charging, allowing it to recharge from 0% to 100% in approximately 1.5 hours.

1. Connect the provided Type-C charging cable to the Input/Output port on the device.
2. Connect the other end of the Type-C cable to a compatible USB wall adapter (not included) or a car charger.
3. The digital display will indicate the charging status and battery level.

6. सञ्चालन निर्देशनहरू

6.1. गाडी सुरु गर्दै जम्प

The PD-JA5 delivers 5000A peak current, capable of starting any 12V dead battery (up to All Gas/10.0L Diesel engines). It supports 50+ starts per charge and operates from -4°F to 140°F.

1. Ensure the PD-JA5 is sufficiently charged.
2. Connect the smart jumper cable to the jumper cable port on the PD-JA5.
3. रातो cl संलग्न गर्नुहोस्amp गाडीको ब्याट्रीको सकारात्मक (+) टर्मिनलमा।
4. कालो cl संलग्न गर्नुहोस्amp to the negative (-) terminal of the vehicle's battery or a solid, unpainted metal part of the car's chassis.
5. Once connected, the indicator light on the smart jumper cable should turn solid green, indicating a safe connection. If it flashes or shows red, check connections.
6. आफ्नो गाडी सुरु गर्नुहोस्।
7. Once the vehicle starts, immediately disconnect the black clamp, त्यसपछि रातो clamp, and finally unplug the smart jumper cable from the PD-JA5.

Figure 4: Jump Starting a Vehicle

The PD-JA5 is suitable for a wide range of 12V vehicles, including cars, trucks, motorcycles, RVs, boats, and even tractors.

चित्र २: सवारी साधनको अनुकूलता

6.2. एयर कम्प्रेसर प्रयोग गर्दै

The powerful 19-cylinder air pump provides a maximum pressure of 150 PSI and an airflow of 45L/Min, quickly inflating a 195/65R15 tire from 30 PSI to 36 PSI in 1 minute.

1. Screw the air pump hose securely into the air pump interface on the PD-JA5.
2. Attach the other end of the hose to the tire valve or inflatable item. Use the appropriate gas nozzle if needed.
3. Press the Power button to turn on the device. The digital display will show the current pressure.
4. Press the Mode/Unit switch button to cycle through preset modes (Car, Bike, Motorcycle, Ball) or select a custom PSI. Use the +/- buttons to adjust the target pressure. The device supports BAR/PSI/KPA measurements.
5. Press the Power button again to start inflation. The compressor will automatically stop once the preset pressure is reached.
6. Disconnect the hose from the tire valve and then from the PD-JA5.

Figure 6: Air Compressor Modes and Units

३.३. एलईडी बत्ती प्रयोग गर्दै

बिल्ट-इन एलईडी लाइटले विभिन्न परिस्थितिहरूको लागि तीन मोडहरू प्रदान गर्दछ:

• स्थिर प्रकाश: For general illumination during roadside repairs or camping।
• स्ट्रोब लाइट: संकेत गर्न वा ध्यान आकर्षित गर्नको लागि।
• SOS मोड: आपतकालीन संकेत को लागी।

To activate and cycle through the light modes, press the LED Lighting button on the device.

५.२. पावर बैंकको रूपमा प्रयोग गर्ने

The 30W PD bidirectional fast-charging USB-C port allows you to charge phones, tablets, drones, and other compatible electronic devices.

1. Connect your electronic device to the USB-C Input/Output port on the PD-JA5 using a compatible charging cable.
2. The PD-JA5 will automatically begin charging your device.

चित्र ६.७: बाह्य उपकरणहरू चार्ज गर्दै

7. मर्मतसम्भार

To ensure the longevity and optimal performance of your POPDEER PD-JA5, follow these maintenance guidelines:

• नियमित चार्जिङ: ब्याट्री स्वास्थ्य कायम राख्न प्रयोगमा नभए पनि, हरेक ३-६ महिनामा उपकरण रिचार्ज गर्नुहोस्।
• भण्डारण: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. The operating temperature range is -4°F to 140°F (-20°C to 60°C).
• सरसफाई: उपकरण सफा गर्न नरम, सुख्खा कपडा प्रयोग गर्नुहोस्। कठोर रसायन वा घर्षण गर्ने सामग्रीहरू प्रयोग नगर्नुहोस्।
• निरीक्षण: Periodically inspect the jumper cables and air hose for any signs of wear or damage. Replace if necessary.

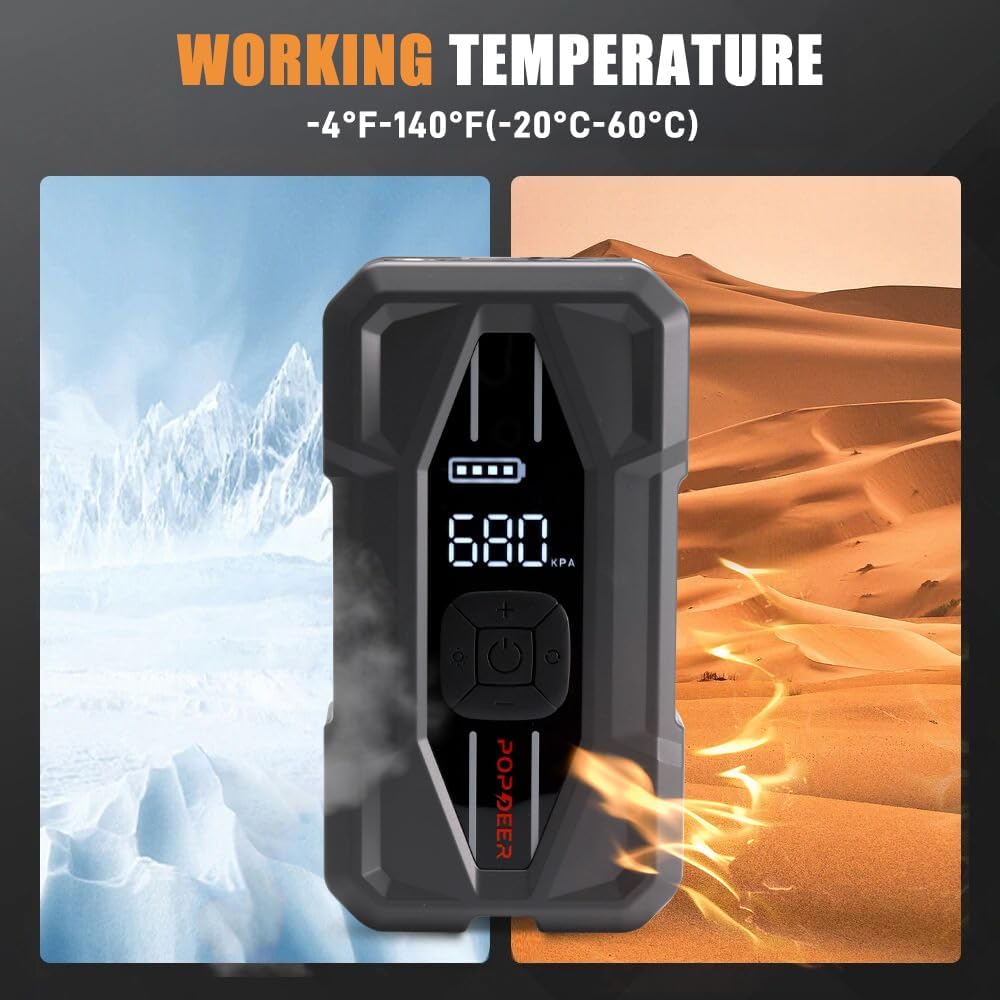

Figure 8: Working Temperature Range

T. समस्या निवारण

If you encounter issues with your POPDEER PD-JA5, refer to the following common problems and solutions:

• उपकरण सक्रिय छैन: Ensure the device is charged. If the battery is completely depleted, it may take a few minutes of charging before it powers on.
• Vehicle Not Jump Starting: Check that the smart jumper cables are correctly connected to the battery terminals (red to positive, black to negative/ground). Ensure the smart cable indicator is solid green. The vehicle's battery might be severely damaged and require professional assistance.
• हावा कम्प्रेसर फुल्न नदिने: Verify that the air pump hose is securely attached to both the device and the tire valve. Check that the correct pressure unit and target pressure are set on the digital display. Ensure the device has sufficient battery charge.
• External Device Not Charging: Confirm that your device is compatible with USB-C charging and that the cable is functioning correctly.

थप सहयोगको लागि, कृपया ग्राहक समर्थनलाई सम्पर्क गर्नुहोस्।

9. निर्दिष्टीकरणहरू

10. वारेन्टी र समर्थन

Your POPDEER PD-JA5 comes with a 24-Month Hassle-free Warranty and Lifetime Technical Support Service. For any questions, concerns, or technical assistance, please refer to the contact information provided in your product packaging or visit the official POPDEER webसाइट।
