GDOR 3 Tier Electric Food Steamer (Model SC800W) Instruction Manual

परिचय

Thank you for choosing the GDOR 3 Tier Electric Food Steamer. This appliance is designed to provide a healthy and efficient way to cook a variety of foods simultaneously. With its 800W power, 9.6 QT capacity, and user-friendly features, you can enjoy nutritious meals with ease. Please read this manual carefully before first use to ensure proper operation, safety, and maintenance.

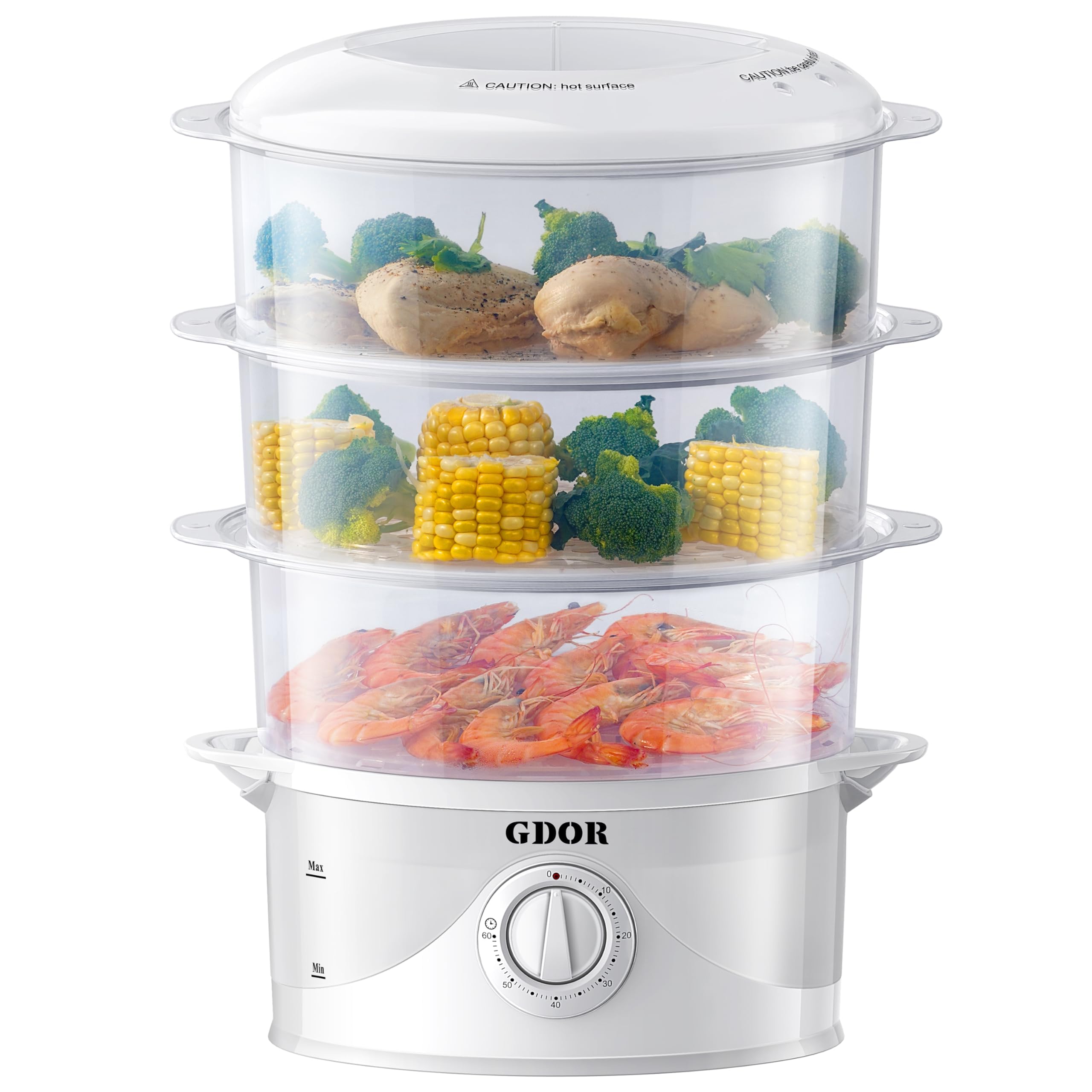

Image: The GDOR 3 Tier Electric Food Steamer, fully assembled and ready for use.

महत्त्वपूर्ण सुरक्षा उपायहरू

विद्युतीय उपकरणहरू प्रयोग गर्दा, आगो, विद्युतीय झट्का र व्यक्तिहरूलाई चोटपटक लाग्ने जोखिम कम गर्न आधारभूत सुरक्षा सावधानीहरू सधैं पालना गर्नुपर्छ। सबै निर्देशनहरू ध्यानपूर्वक पढ्नुहोस्।

• तातो सतहहरू नछुनुहोस्। ह्यान्डल वा नबहरू प्रयोग गर्नुहोस्।
• बिजुलीको झट्काबाट जोगाउन, कर्ड, प्लग वा आधार युनिटलाई पानी वा अन्य तरल पदार्थमा नडुबाउनुहोस्।
• कुनै पनि उपकरण बालबालिकाद्वारा वा नजिकको प्रयोग गर्दा नजिकको पर्यवेक्षण आवश्यक हुन्छ।
• प्रयोगमा नभएको बेला र सफा गर्नु अघि आउटलेटबाट अनप्लग गर्नुहोस्। भागहरू राख्नु वा हटाउनु अघि चिसो हुन दिनुहोस्।
• क्षतिग्रस्त कर्ड वा प्लगको साथ, वा उपकरण खराब भएपछि वा कुनै पनि तरिकाले क्षतिग्रस्त भएपछि कुनै पनि उपकरण सञ्चालन नगर्नुहोस्।
• उपकरण निर्माताले सिफारिस नगरेको सहायक संलग्नकहरूको प्रयोगले चोटपटक लाग्न सक्छ।
• बाहिर प्रयोग नगर्नुहोस्।
• कर्डलाई टेबल वा काउन्टरको छेउमा झुण्ड्याउन नदिनुहोस् वा तातो सतहहरूलाई छुनुहोस्।
• तातो ग्यास वा बिजुली बर्नरमा वा नजिकै नराख्नुहोस्, वा तातो चुलोमा राख्नुहोस्।
• तातो तेल वा अन्य तातो तरल पदार्थ भएको उपकरण सार्दा चरम सावधानी अपनाउनुपर्छ।
• सधैं पहिले उपकरणमा प्लग जोड्नुहोस्, त्यसपछि भित्ताको आउटलेटमा कर्ड प्लग गर्नुहोस्। विच्छेदन गर्न, कुनै पनि नियन्त्रणलाई "अफ" गर्नुहोस्, त्यसपछि भित्ताको आउटलेटबाट प्लग हटाउनुहोस्।
• उद्देश्य प्रयोग बाहेक अन्य लागि उपकरण प्रयोग नगर्नुहोस्।
• Ensure the water reservoir is filled to the appropriate level before operation to prevent boil-dry.
• The lid and trays are made of food-grade PP material and are BPA-free, ensuring food safety.

Image: The steamer features built-in boil dry protection, automatically shutting off if water levels are too low.

उत्पादन समाप्त भयोview

The GDOR 3 Tier Electric Food Steamer consists of several detachable components for versatile cooking and easy cleaning.

• आधार एकाइ: Contains the heating element, water reservoir, and control dial.
• पानी जलाशय: Located within the base unit, holds water for steaming. Features MIN/MAX indicators.
• ड्रिप ट्रे: Sits above the water reservoir to collect condensation and food juices.
• Steaming Baskets (3 Tiers): Clear, stackable baskets for holding food. Each basket has a perforated bottom for steam circulation.
• ढक्कन: Transparent lid to cover the top steaming basket, trapping steam.
• टाइमर डायल: Located on the front of the base unit, allows setting cooking time from 0 to 60 minutes.
• पानी इनलेट: External opening on the base unit for adding water during operation.

Image: The versatile 3-tier design allows for simultaneous cooking of various ingredients, with a total capacity of 9.6 QT.

असेंबली र सेटअप

Follow these steps for initial assembly and setup of your GDOR Electric Food Steamer.

1. आधार एकाइ राख्नुहोस्: Position the base unit on a stable, flat, heat-resistant surface.
2. पानी थप्नुहोस्: Fill the water reservoir with clean water up to the MAX line. Do not exceed the MAX line.
3. ड्रिप ट्रे राख्नुहोस्: Position the drip tray onto the base unit.
4. Stack Steaming Baskets: Place one or more steaming baskets onto the drip tray. Ensure they are securely stacked.
5. खाना थप्नुहोस्: Distribute food evenly in the steaming baskets. Do not overfill.
6. ढक्कनले ढाक्नुहोस्: माथिल्लो बाफिङ टोकरीमा ढक्कन सुरक्षित रूपमा राख्नुहोस्।

Image: A visual guide demonstrating the 3-step setup: 1. Add water, 2. Place food into steaming trays, 3. Set the timer.

सञ्चालन

पानी थप्दै

Before each use, ensure the water reservoir is filled with clean water. The water level should be between the MIN and MAX indicators. For continuous steaming, water can be added during operation through the external water inlet without opening the baskets.

Image: Water being added to the steamer through the convenient external water inlet.

खाना लोड गर्दै

Place food items into the steaming baskets. For optimal steaming, arrange food in a single layer where possible, allowing steam to circulate freely. Foods requiring longer cooking times should be placed in the lower baskets, closer to the steam source.

टाइमर सेट गर्दै

Plug the steamer into a suitable electrical outlet. Turn the timer dial clockwise to your desired cooking time (0-60 minutes). The steamer will begin generating steam immediately. A light indicator may illuminate to show the unit is active. The steamer will automatically shut off once the timer reaches zero.

भाप प्रक्रिया

The 800W heating element and turbo steam function ensure rapid steam generation and even heat distribution throughout all tiers, reducing cooking time.

Image: Visual representation of efficient steam circulation within the multi-tier steamer.

Steaming Times सिफारिस गर्नुभयो

The following table provides approximate steaming times for various foods. Times may vary based on food quantity, size, and desired doneness. Always ensure food is cooked thoroughly.

Table: Recommended steaming times for various food types.

सरसफाई र मर्मतसम्भार

Regular cleaning and maintenance will prolong the life of your steamer and ensure optimal performance.

प्रत्येक प्रयोग पछि

1. Unplug the steamer from the power outlet and allow it to cool completely.
2. Remove the lid, steaming baskets, and drip tray.
3. जलाशयबाट बाँकी रहेको पानी खाली गर्नुहोस्।
4. Wash the lid, steaming baskets, and drip tray with warm, soapy water or place them in the dishwasher. These parts are dishwasher safe.
5. विज्ञापनको साथ आधार एकाइ सफा गर्नुहोस्amp कपडा। आधार एकाइलाई पानीमा नडुबाउनुहोस्।
6. पुन: संयोजन वा भण्डारण गर्नु अघि सबै भागहरू राम्ररी सुकाउनुहोस्।

Image: The removable parts of the steamer are easy to clean by hand or in a dishwasher.

वर्णन गर्दै

Over time, mineral deposits (limescale) may build up on the heating element. To descale:

1. पानीको भण्डारमा १ भाग सेतो सिरका र २ भाग पानीको मिश्रण भर्नुहोस्।
2. Place the drip tray and one steaming basket (empty) onto the base unit.
3. ३-५ मिनेटको लागि टाइमर सेट गर्नुहोस्।
4. After the cycle, unplug the steamer and let it cool.
5. Empty the vinegar solution and rinse the reservoir thoroughly with clean water.
6. Run a cycle with clean water to remove any residual vinegar smell.

भण्डारण

The steaming baskets are stackable for compact storage, saving kitchen space when not in use.

Image: The steamer's components can be stacked for compact storage, reducing countertop or cabinet space requirements.

समस्या निवारण

If you encounter any issues with your steamer, refer to the following common problems and solutions.

• स्टीमर चालु छैन:
  • काम गर्ने आउटलेटमा पावर कर्ड सुरक्षित रूपमा प्लग गरिएको सुनिश्चित गर्नुहोस्।
  • Check if the timer dial is set to a cooking time. The steamer will not operate if the timer is at '0'.
• बाफ नभएको वा अपर्याप्त बाफ:
  • Check the water level in the reservoir. Refill if below the MIN line.
  • Ensure the lid is properly seated on the top basket to trap steam.
  • Descale the heating element if there is significant mineral buildup.
• खाना समान रूपमा नपाक्नु:
  • Ensure food is distributed evenly in the baskets and not overcrowded.
  • Foods requiring longer cooking times should be placed in lower baskets.
  • Cut food into uniform sizes for consistent cooking.
• Water leaking from the base:
  • Ensure the drip tray is correctly positioned on the base unit.
  • Do not overfill the water reservoir beyond the MAX line.

प्राविधिक विनिर्देशहरू

वारेन्टी र ग्राहक समर्थन

For information regarding warranty coverage, please refer to the warranty card included with your product or contact GDOR customer support. If you have any questions, require assistance, or need to report an issue, please contact the manufacturer directly through their official channels.
