1. परिचय
This manual provides detailed instructions for the assembly, setup, operation, and maintenance of your HIFIT 72.8" Tall Kitchen Pantry Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This cabinet is designed to offer ample storage and functional features for your kitchen, dining room, or living area.

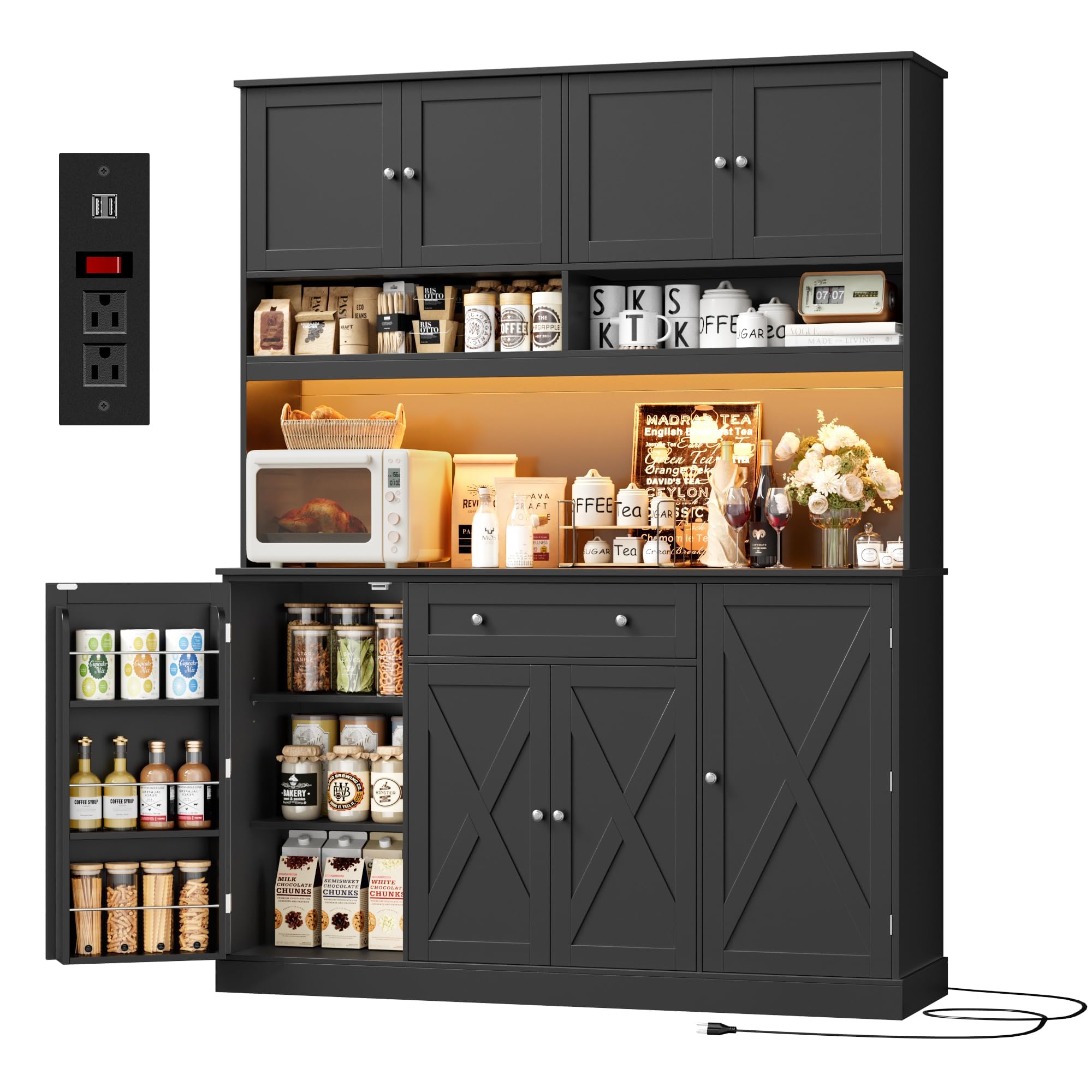

Figure 1: HIFIT Tall Kitchen Pantry Cabinet, showcasinघरको वातावरणमा यसको डिजाइन र कार्यक्षमता।
2. सुरक्षा जानकारी
यस उत्पादनको सुरक्षित प्रयोग सुनिश्चित गर्न, कृपया निम्न सावधानीहरू पालना गर्नुहोस्:
- Anti-Tipping Devices: Always secure the cabinet to the wall using the anti-tipping devices provided to prevent tipping and potential injury.
- तौल सीमा: Do not exceed the maximum load capacity of 1200 pounds. Distribute weight evenly across shelves.
- सभा: Assembly requires two people. Follow the instructions carefully to ensure proper and stable construction.
- विद्युतीय सुरक्षा: When using the built-in charging station, ensure appliances are within the specified voltage and current limits (2 AC outlets, 2 USB ports). Do not overload the outlets.
- नियुक्ति: Place the cabinet on a flat, stable surface. Avoid placing it in areas with excessive moisture or direct sunlight.
3. प्याकेज सामग्री
Your HIFIT Kitchen Pantry Cabinet is shipped in two separate packages, which may arrive at different times. Please ensure you have received both packages before beginning assembly.
The packages contain:
- All necessary cabinet panels and components.
- Hardware and installation kit (screws, dowels, hinges, etc.).
- LED lighting strip and power adapter.
- Built-in charging station unit.
- Anti-tipping devices.
- प्रयोगकर्ता पुस्तिका (यो कागजात)।
Figure 2: Product dimensions and notification that the cabinet ships in two boxes.
4. विधानसभा निर्देशनहरू
Assembly of the HIFIT Kitchen Pantry Cabinet requires careful attention to detail. All parts are labeled, and pre-drilled holes are provided to simplify the process. We recommend assembling the product with at least two people to ensure stability and ease of construction.
- खोल्नुहोस् र पहिचान गर्नुहोस्: Carefully unpack all components and lay them out. Verify that all parts listed in the package contents are present and undamaged. Refer to the included assembly diagram for part identification.
- आधार सभा: Begin by assembling the base frame of the cabinet according to the step-by-step illustrations in the separate assembly guide.
- Lower Cabinet Construction: Attach the side panels, back panel, and shelves for the lower section. Ensure all connections are secure.
- दराज स्थापना: Assemble the deep storage drawer and install it into its designated slot.
- Countertop Placement: Secure the spacious countertop onto the lower cabinet.
- Upper Cabinet Assembly: Construct the upper cabinet section, including its shelves and compartments.
- Attaching Upper to Lower: Carefully lift and secure the upper cabinet onto the countertop of the lower section.
- ढोका स्थापना: Attach all cabinet doors, including the swing-out door, using the provided hinges. Adjust hinges as needed to ensure proper alignment and smooth closing.
- नब स्थापना: Install all silver metal knob handles on the doors and drawer.
- एन्टि-टिपिङ उपकरण स्थापना: Securely install the anti-tipping devices to the top rear of the cabinet and anchor them to a wall stud.
Note: Some customer feedback indicates that door alignment may require careful adjustment of hinges. Take your time during this step to achieve a flush fit.
भिडियो १: समाप्तview of the HIFIT Farmhouse Kitchen Pantry Cabinet, demonstrating its features and assembly process. This video provides a visual guide to the cabinet's structure and functionality.
५. सेटअप र सुविधाहरू
५.१ एलईडी प्रकाश प्रणाली
The cabinet features integrated LED lighting in the open countertop area. This provides illumination for your items and enhances the aesthetic appeal.
- सक्रियता: The LED lights are controlled by a switch located on the charging station.
- नियुक्ति: The LED strip is pre-installed under the upper cabinet section, illuminating the countertop.
Figure 3: The LED lighting feature illuminates the countertop, providing visibility and ambiance.
४.२ बिल्ट-इन चार्जिङ स्टेशन
The spacious 55.1" wide countertop includes a built-in charging station for convenience. This station is equipped with:
- २ वटा एसी आउटलेटहरू (१२५V/१२A)
- २ USB पोर्टहरू (५V/२A)
- A master ON-OFF switch for power control.
To use, simply plug the charging station's power cord into a wall outlet. Use the switch to turn power on or off to the outlets and USB ports.

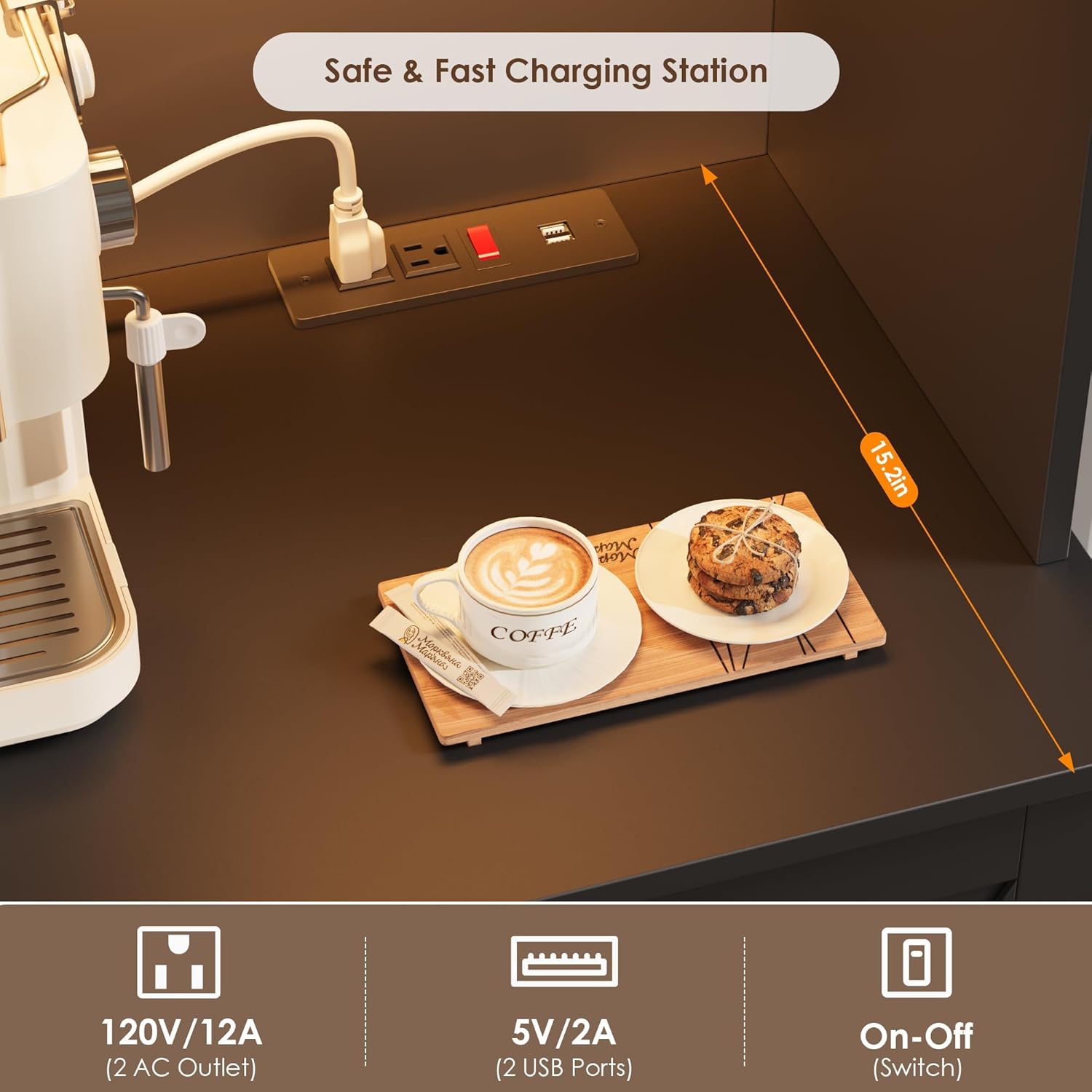

Figure 4: The charging station provides convenient power access for small appliances and devices.
6. सञ्चालन निर्देशनहरू
6.1 Storage Compartments and Shelves
The cabinet offers 12 closed storage compartments and 4 adjustable shelves to organize various items. The upper cabinet also features two open compartments for easily accessible items like coffee cups or beans.
- समायोज्य शेल्फ: The shelves within the closed compartments can be adjusted to different heights to accommodate items of various sizes. To adjust, remove the shelf pins, reposition the shelf to the desired height, and reinsert the pins securely.
- Deep Storage Drawer: A deep drawer is located in the center of the lower cabinet, suitable for cutlery, small utensils, or other kitchen essentials.
Figure 5: The cabinet's interior provides extensive storage options with adjustable shelves and a deep drawer.
6.2 Swing-Out Door
The cabinet includes a swing-out door with a 3-tier internal rack, maximizing storage volume. This rack is ideal for storing bottles, sauces, beverages, or canned goods.
- चुम्बकीय क्याच: The door is equipped with a magnetic catch to ensure it stays securely closed.
- Smooth Hinges: The hinges allow for smooth opening and closing of the door.
Figure 6: Details of the swing-out door's internal rack, deep drawer, and barn door design elements.
7. मर्मतसम्भार
Proper care and maintenance will extend the life and appearance of your cabinet.
- सरसफाई: नरमले सतहहरू पुछ्नुहोस्, डीamp कपडा। फिनिशलाई क्षति पुर्याउन सक्ने कठोर रसायन वा घर्षण गर्ने क्लीनरहरूबाट बच्नुहोस्।
- फैलिएको: ईन्जिनियर गरिएको काठमा दाग लाग्न वा क्षति हुनबाट जोगाउन पोखिएका ठाउँहरू तुरुन्तै सफा गर्नुहोस्।
- हार्डवेयर: सबै स्क्रू र फास्टनरहरू कसिएका छन् भनी सुनिश्चित गर्न समय-समयमा जाँच गर्नुहोस्। आवश्यक परेमा पुन: कस्नुहोस्।
- टिकाहरू: If doors become misaligned, adjust the hinges as per the assembly guide.
T. समस्या निवारण
| समस्या | सम्भावित कारण | समाधान |
|---|---|---|
| Doors are not aligned or do not close properly. | Hinges are not properly adjusted or installed. | Refer to the assembly guide for hinge adjustment instructions. Loosen screws slightly, adjust door position, and retighten. |
| क्याबिनेट हल्लिएको वा अस्थिर महसुस हुन्छ। | Fasteners are loose; anti-tipping devices not installed or secured. | Ensure all screws are tightened. Install and properly anchor the anti-tipping devices to a wall stud. Place on a level surface. |
| LED lights or charging station not working. | Power cord not plugged in; master switch off; faulty connection. | Check if the power cord is securely plugged into a wall outlet. Ensure the master ON-OFF switch on the charging station is in the "ON" position. Verify all connections are secure. |
| एसेम्बली गर्दा भागहरू हराएको। | प्याकेजिङमा त्रुटि भयो वा अनप्याक गर्दा हरायो। | Double-check all packaging materials. If parts are still missing, contact customer support with your model number and a list of required parts. |
9. निर्दिष्टीकरणहरू
| सुविधा | विवरण |
|---|---|
| ब्रान्ड | HIFIT |
| मोडेल नाम | tall kitchen cabinet (UP-CG-0199) |
| रङ | कालो |
| उत्पादन आयामहरू | 15.7"D x 55.1"W x 72.8"H |
| सामग्री | इन्जिनियर गरिएको काठ |
| वस्तुको वजन | ७.९६ पाउण्ड (३.६२ किलोग्राम) |
| वजन सीमा | 1200 पाउन्ड |
| शेल्फहरूको संख्या | 3 (समायोज्य) |
| कम्पार्टमेन्टहरूको संख्या | 12 closed, 2 open |
| विशेष सुविधाहरू | Anti-Tipping, Built-In Charging Station (2 AC outlets, 2 USB ports), Illuminated (LED) |
| विधानसभा आवश्यक | हो |
| स्थापना प्रकार | स्वतन्त्र रुपमा ठडिएको |
| कोठाको प्रकार | भोजन कक्ष, भान्छाघर, बैठक कोठा |
10. वारेन्टी र समर्थन
HIFIT is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, our post-sale service team is available 24/7 to assist you with any questions or concerns regarding your product.
If you encounter any issues or have questions about assembly, missing parts, or product functionality, please contact HIFIT customer support. Have your model number (UP-CG-0199) ready when contacting support for faster service.
For further information or to explore other HIFIT products, please visit the HIFIT Store on Amazon.
